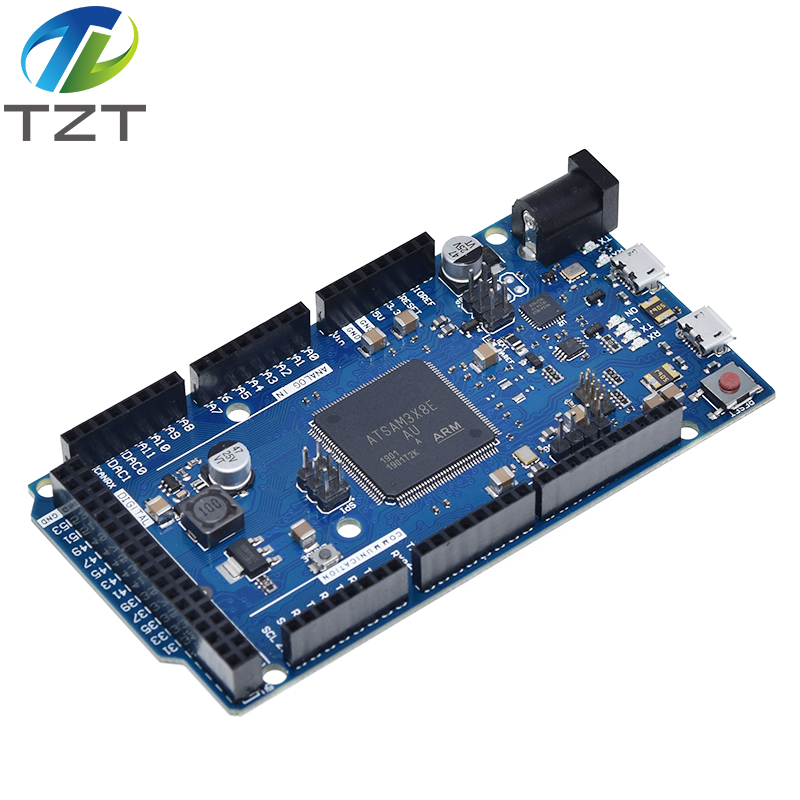

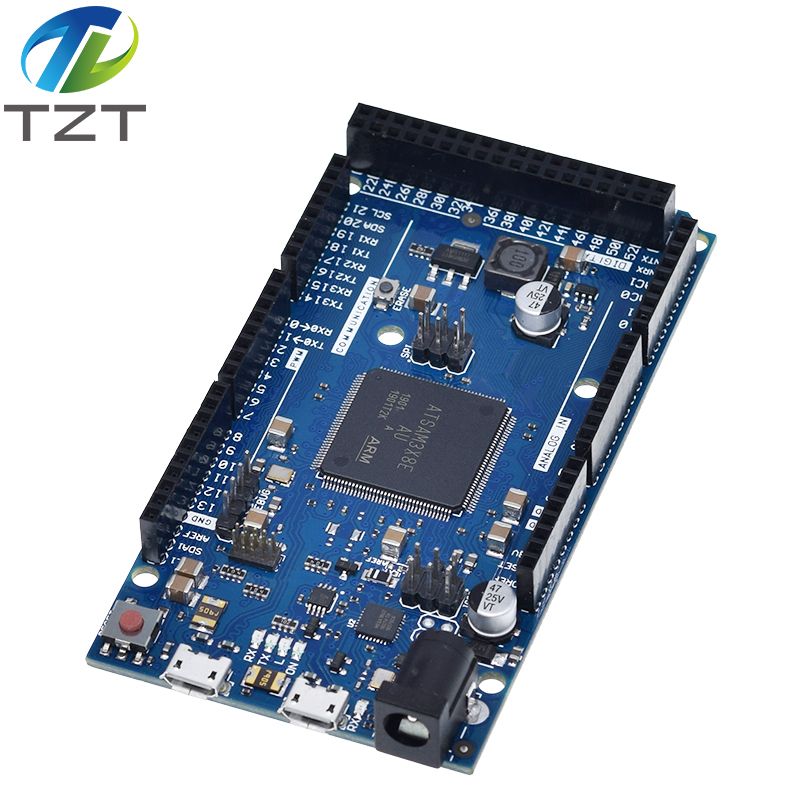

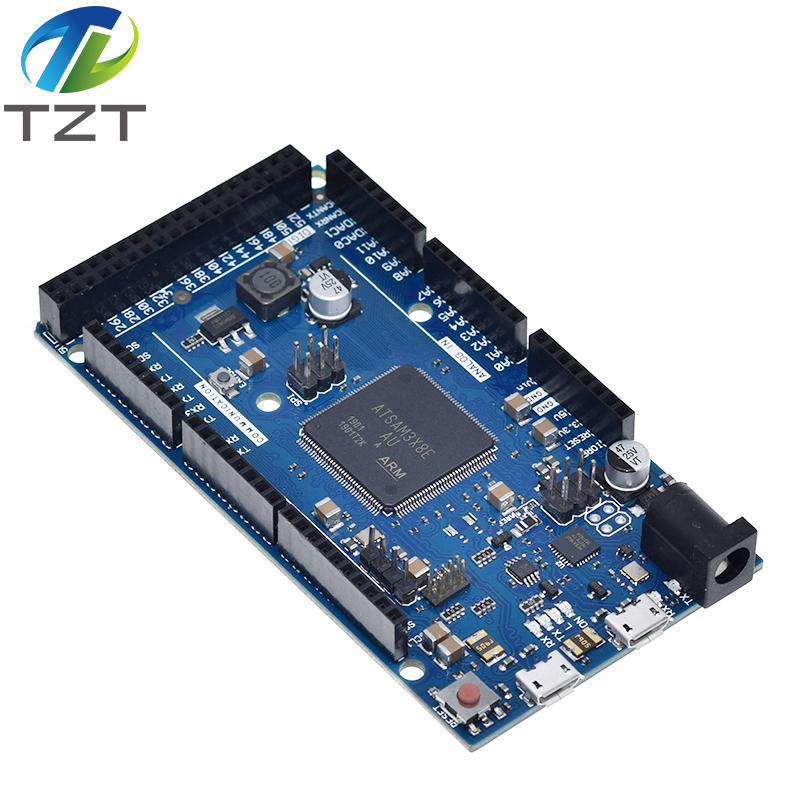

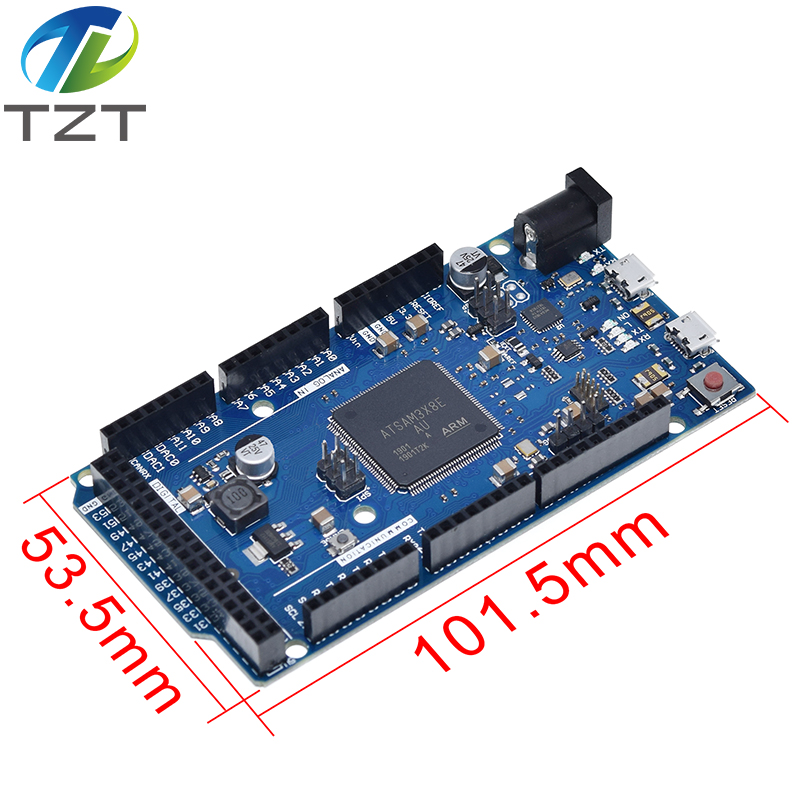

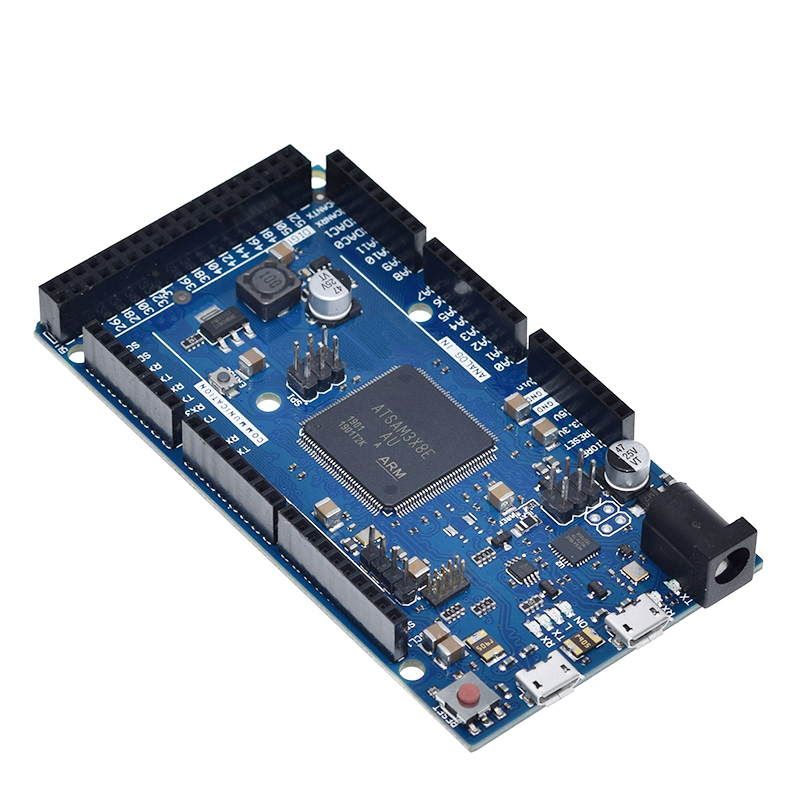

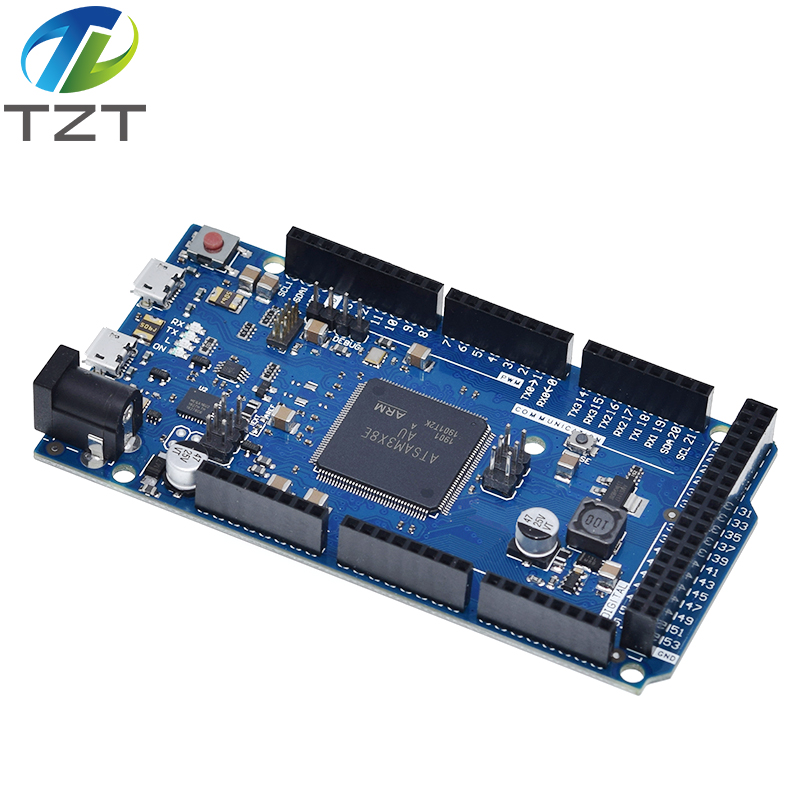

This is a newly designed Arduino development board
Note: This
is not the same as other Arduino boards, the Arduino Due board runs at 3.3V. The
maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher
voltages, like 5V to an I/O pin could damage the board.
ARM
core strengths
The
use of 32 bit ARM core Due compared to the previous use of the other Iduino core
8 AVR more powerful.
The
main differences are:
*
32 bits at a clock can process 32 bits of data.
*
CPU clock frequency of 84Mhz
*
96 SRAM KBytes
*
512 Flash KBytes
*
A DMA controller, can reduce the pressure on the CPU to do a lot of
computing
Features:
Microcontroller:
AT91SAM3X8E
Operating
Voltage: 3.3V
Input
Voltage (recommended): 7-12V
Input
Voltage (limits): 6-16V
Digital
I/O Pins: 54 (of which 12 provide PWM output)
Analog
Input Pins: 12
Analog
Outputs Pins: 2 (DAC)
Total
DC Output Current on all I/O lines: 130 mA
DC
Current for 3.3V Pin: 800 mA
DC
Current for 5V Pin: 800 mA
Flash
Memory: 512 KB all available for the user applications
SRAM:
96 KB (two banks: 64KB and 32KB)
Clock
Speed: 84 MHz
Package
Includes:

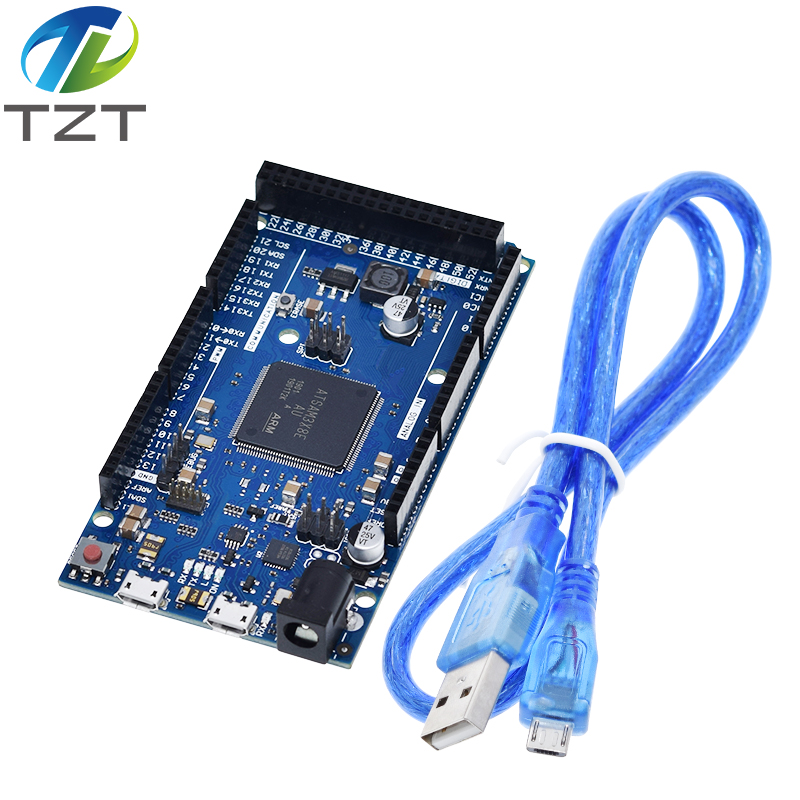

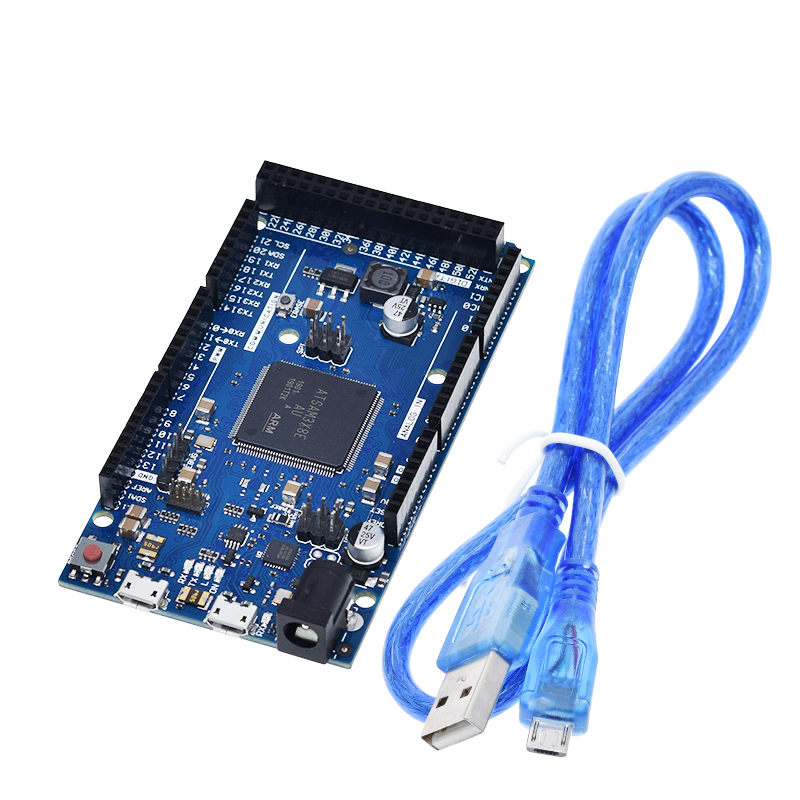

•1
x AT91SAM3X8E DUE Board
1 x USB Cable
