Power supply voltage: VM=15V max
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes

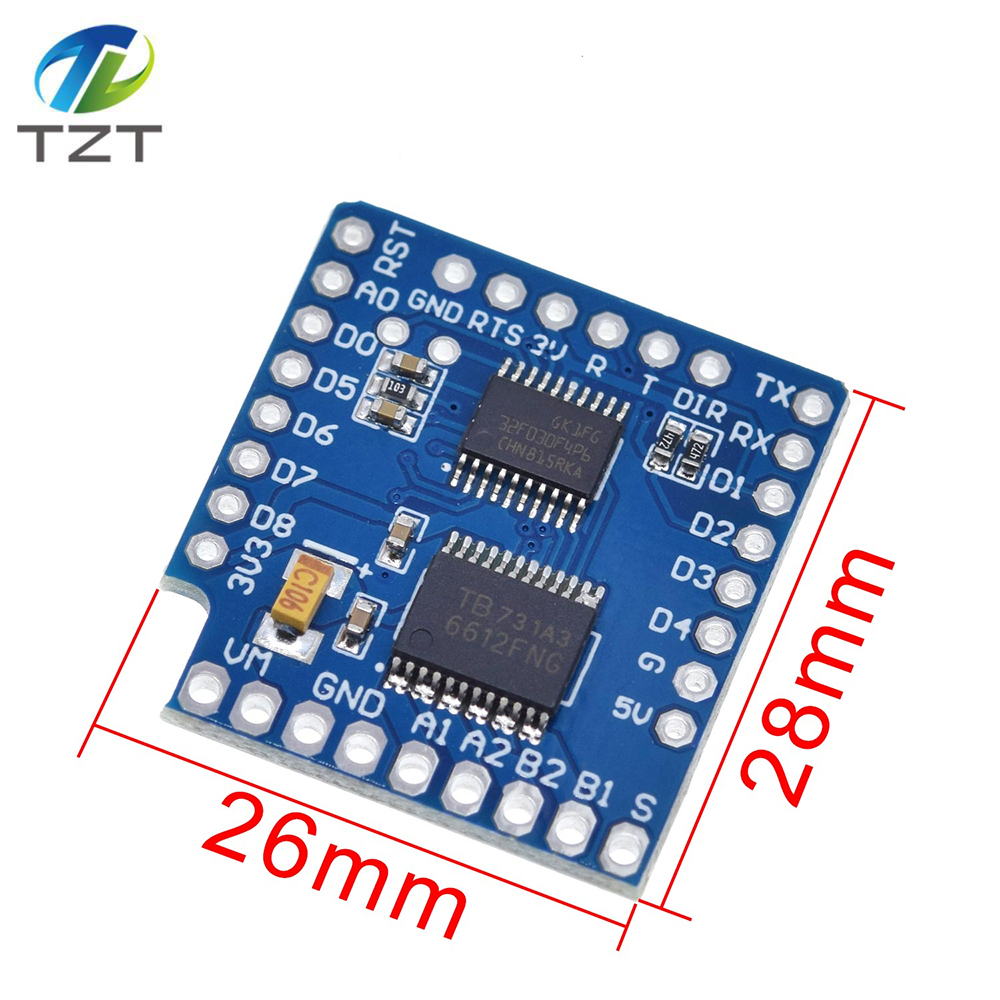

VM: Motor Power Supply +
GND: Motor Power Supply -

A1: Motor A
A2: Motor a

B2: Motor B
B1: Motor B

S: Stand by control port (In io mode)

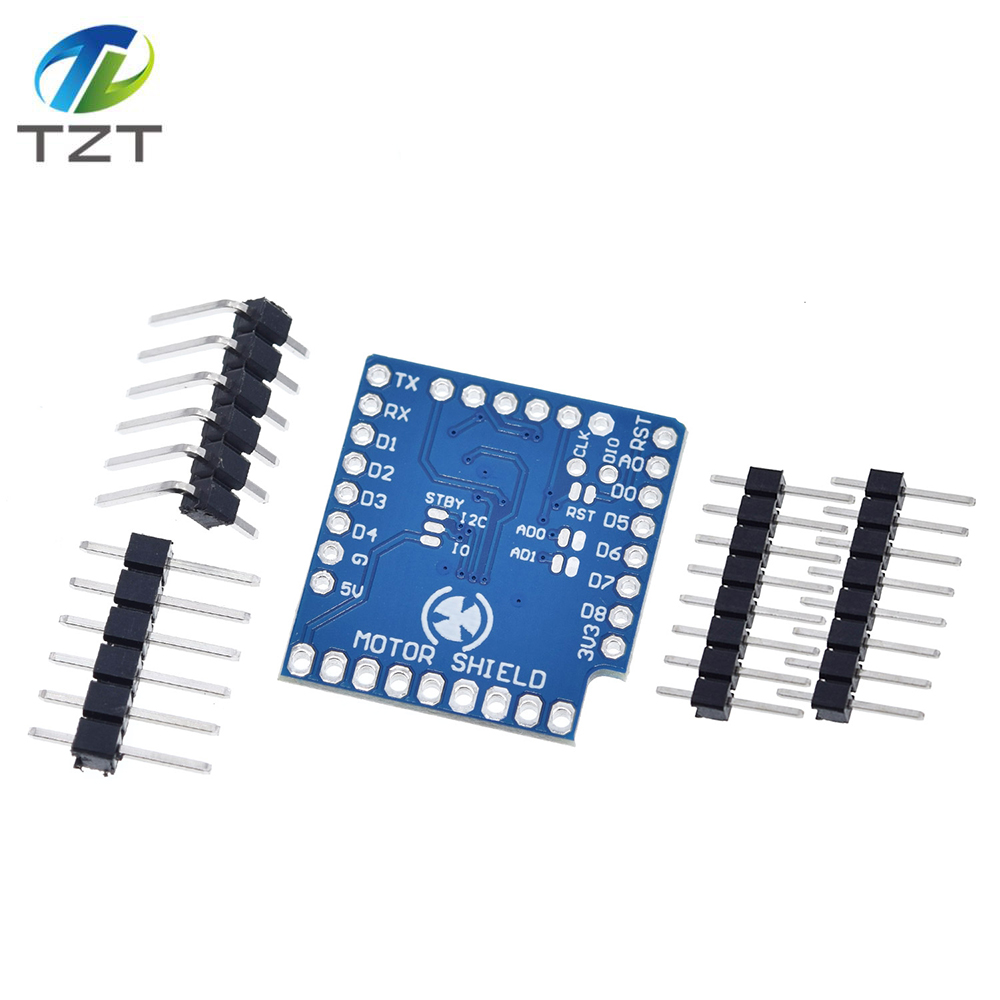

1. Stanby control mode

- I2C mode: Control TB6612's STBY with I2C protocol

- IO mode: Control TB6612's STBY with "S" pin

2. Shield reset mode

- short: reset with d1 mini (reset at power on or press d1 mini's reset button)

- open: reset by "DTR" pin.

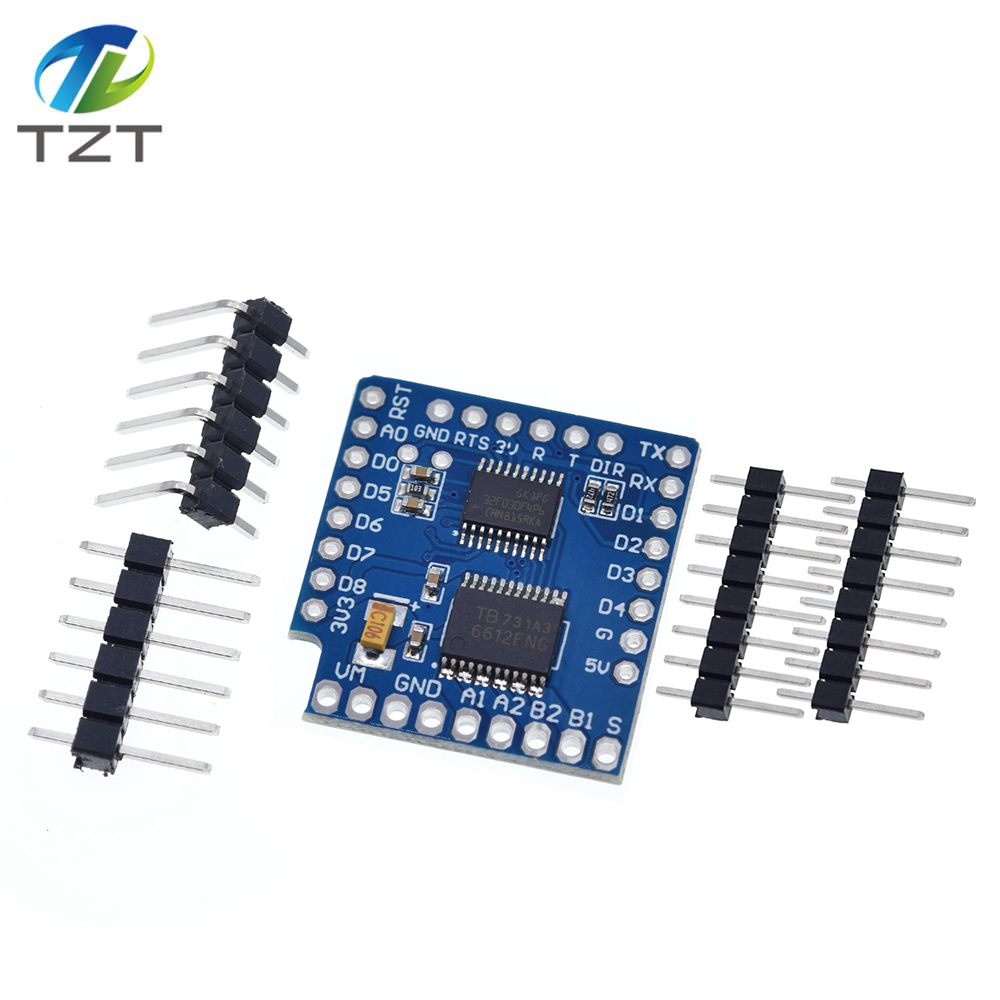

Shipping list:

1. 1x8P 2.54mm pins  x3pcs

2. 1x9P 2.54mm pins  x1pcs

3. Motor Shield  x1pcs
