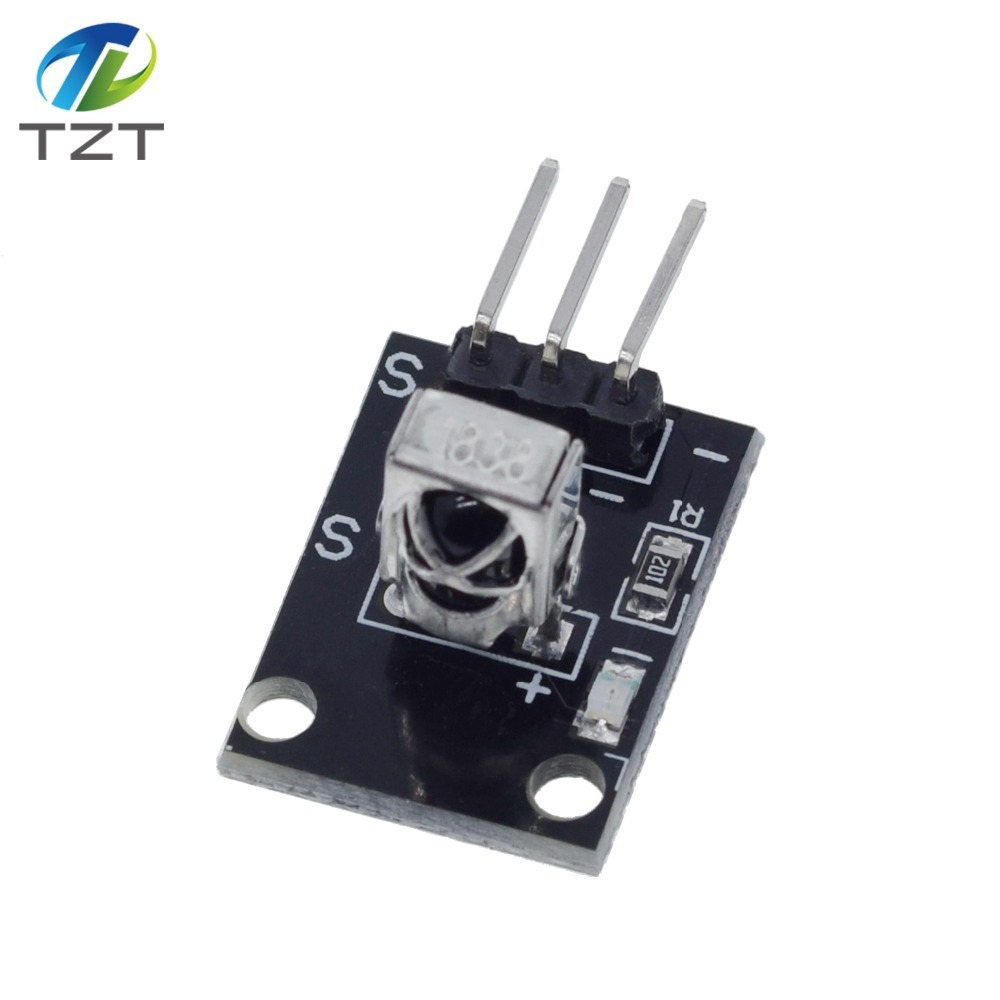

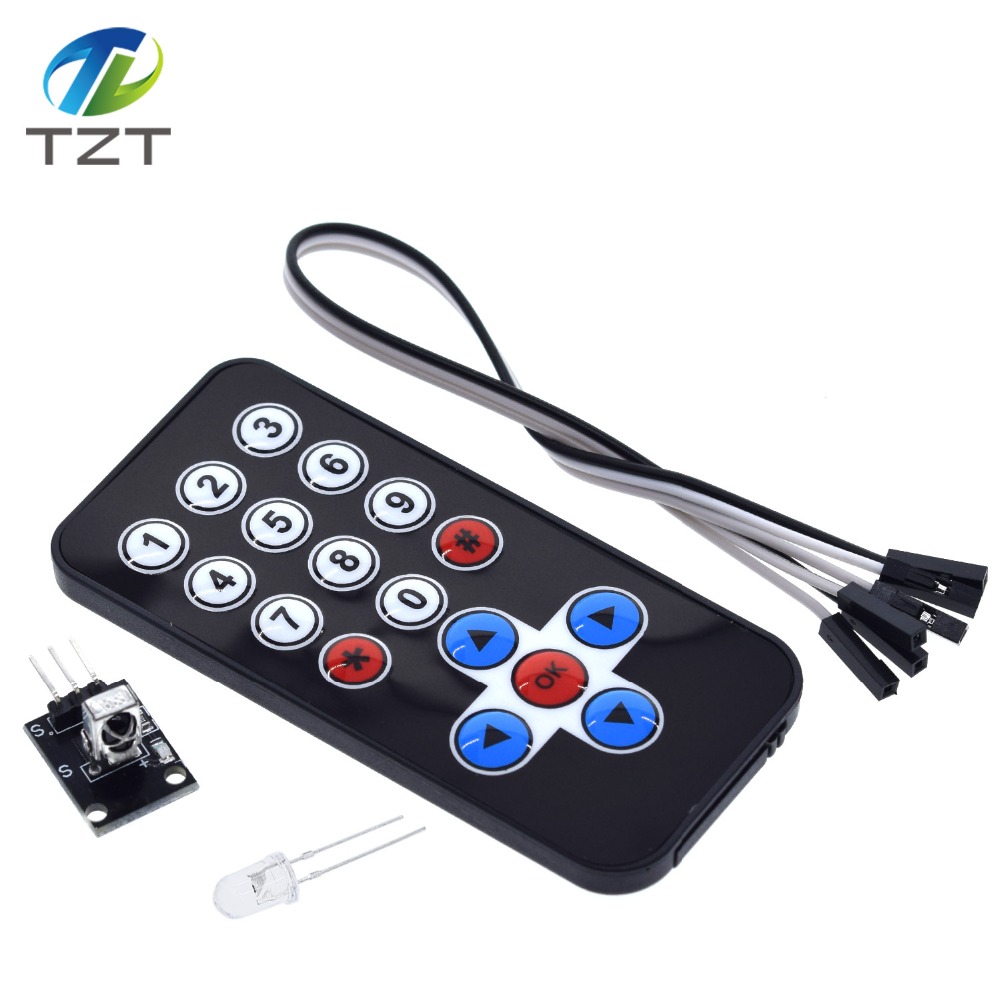

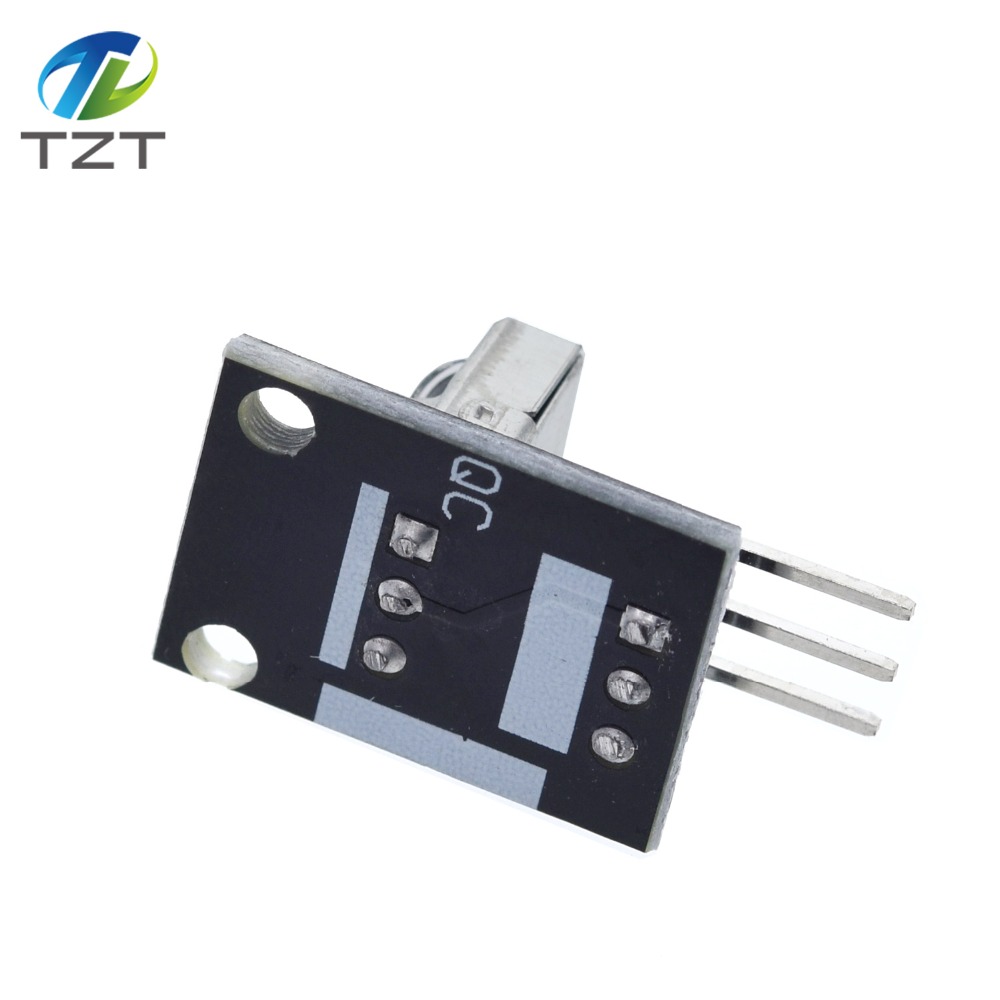

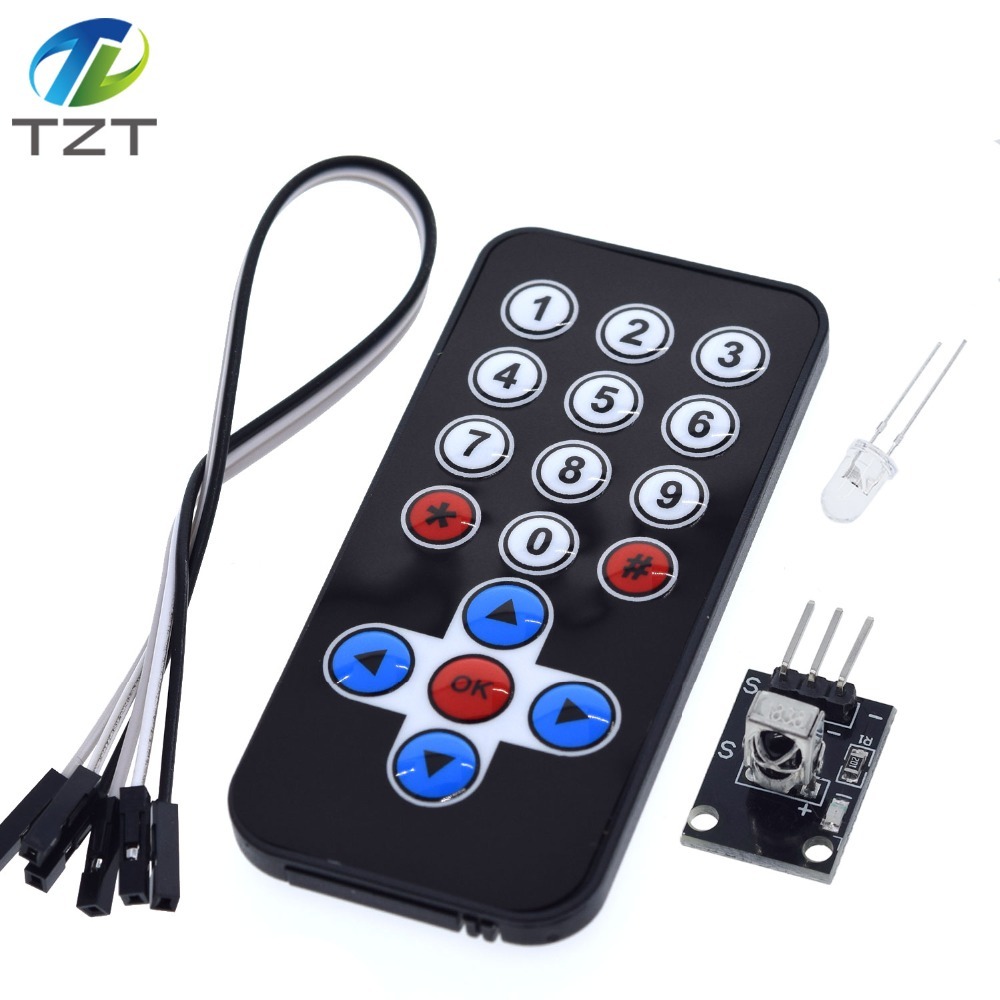

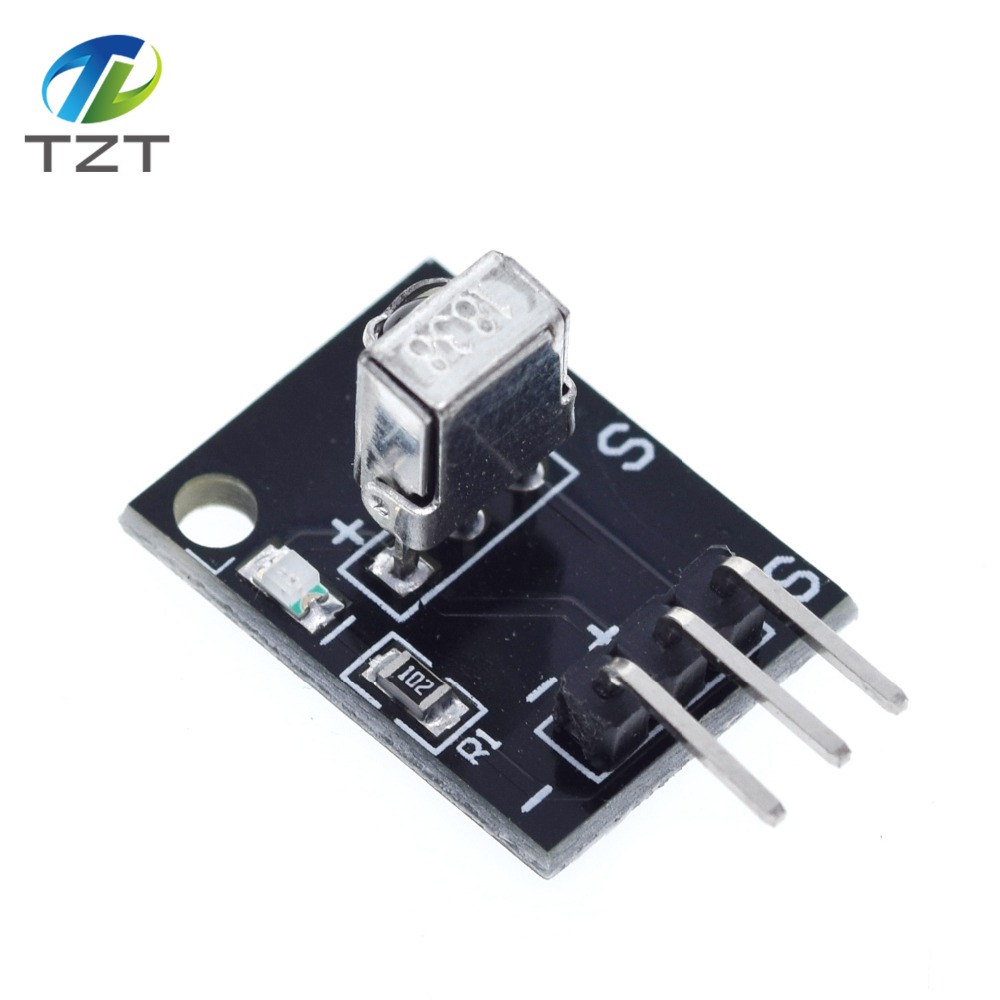

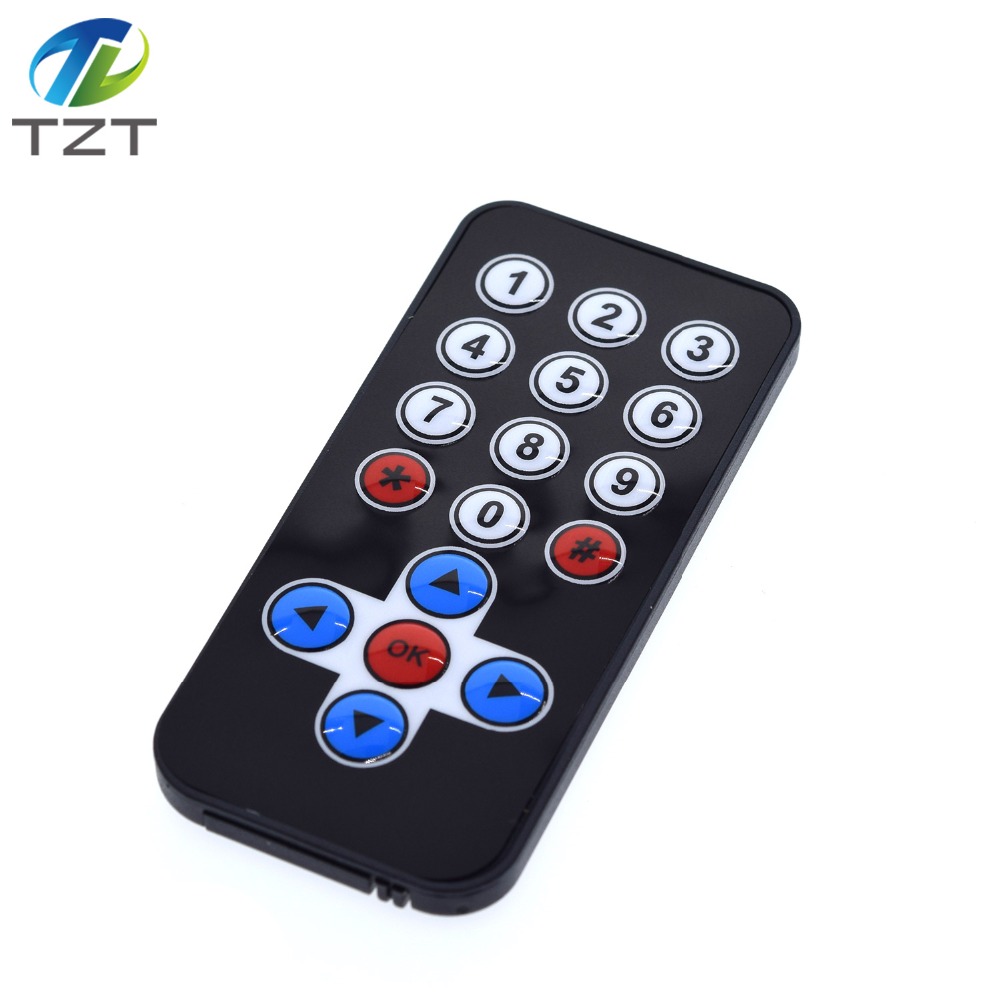

TZT 1LOT Infrared IR Wireless Remote Control Module Kits DIY Kit HX1838 For Arduino Raspberry Pi

Sensor uses HX1838, high sensitivity.

Operating voltage 5V.

Output form: Digital output.

VCC: 3.3V-5V external voltage (can be directly connected to the 5v micro-controller and 3.3v micro-controller).

GND: external GND.

IN: external micro-controller I/O port, I/O port has been designed 10K pull-up resistor.

Kit theory test distance of about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier (such as diaphragm, glass, obstructions or other material blocking), receiving head with HX1838 with power work instructions lights, receive 38K frequency any remote coding data.

Receiver Side Schematic You can see the Pictures.

Fully tested to work with the Raspberry Pi

Raspberry Pi Board Not Included!

Package includes:

1 x Brand New Raspberry Pi Infrared Remote Control IR Receiver Module DIY Kit HX1838
