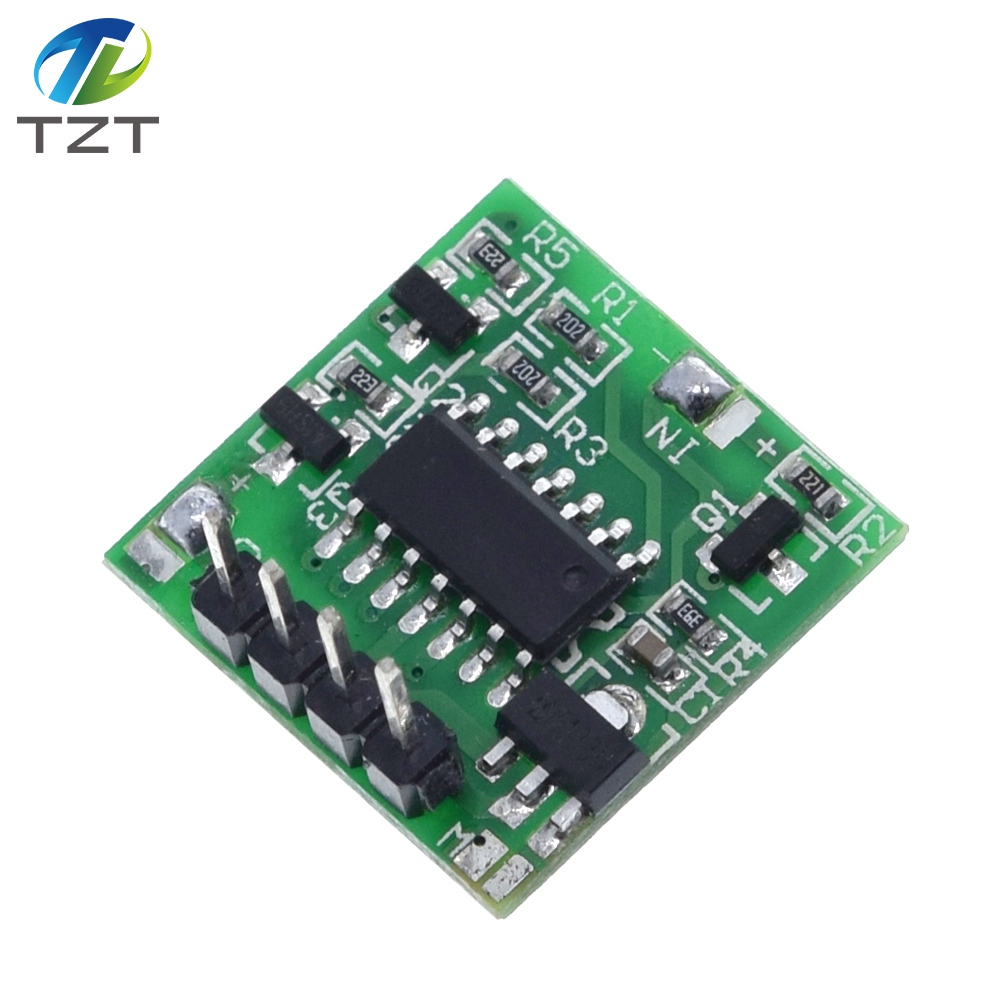

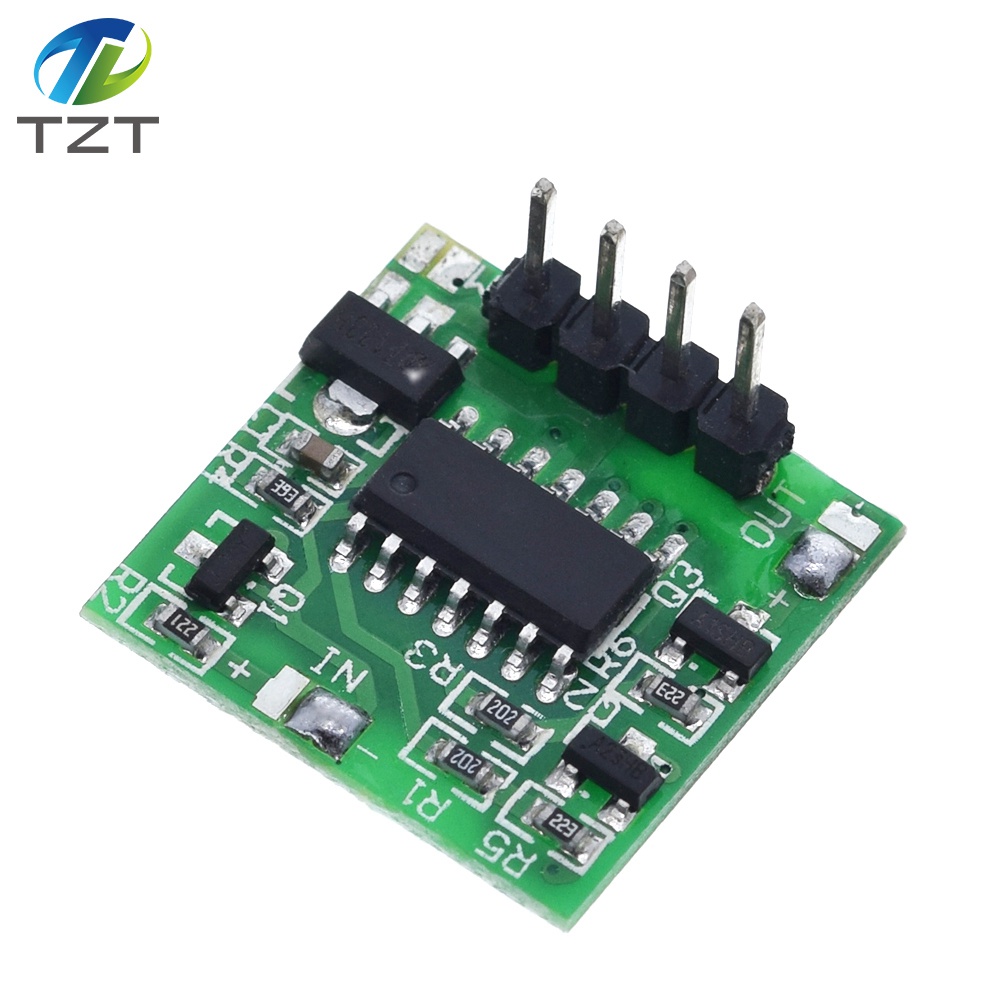

TZT Timer Switch Controller Board 10S-24H Adjustable Delay Relay Module For Delay Switch/Timer/Timing Lamp

1. Power-on reset automatically;
2. The delay time adjustment range of about 10 seconds to 24 hours;
3. Current output voltage ratio parameter:3V/300mA;5V/200mA;9V/100mA
4. Input voltage:3.3-18V
5. It can drive 3V/5V/12V relay/LED and so on.
6. Function:delay switch,timer,timer light etc.

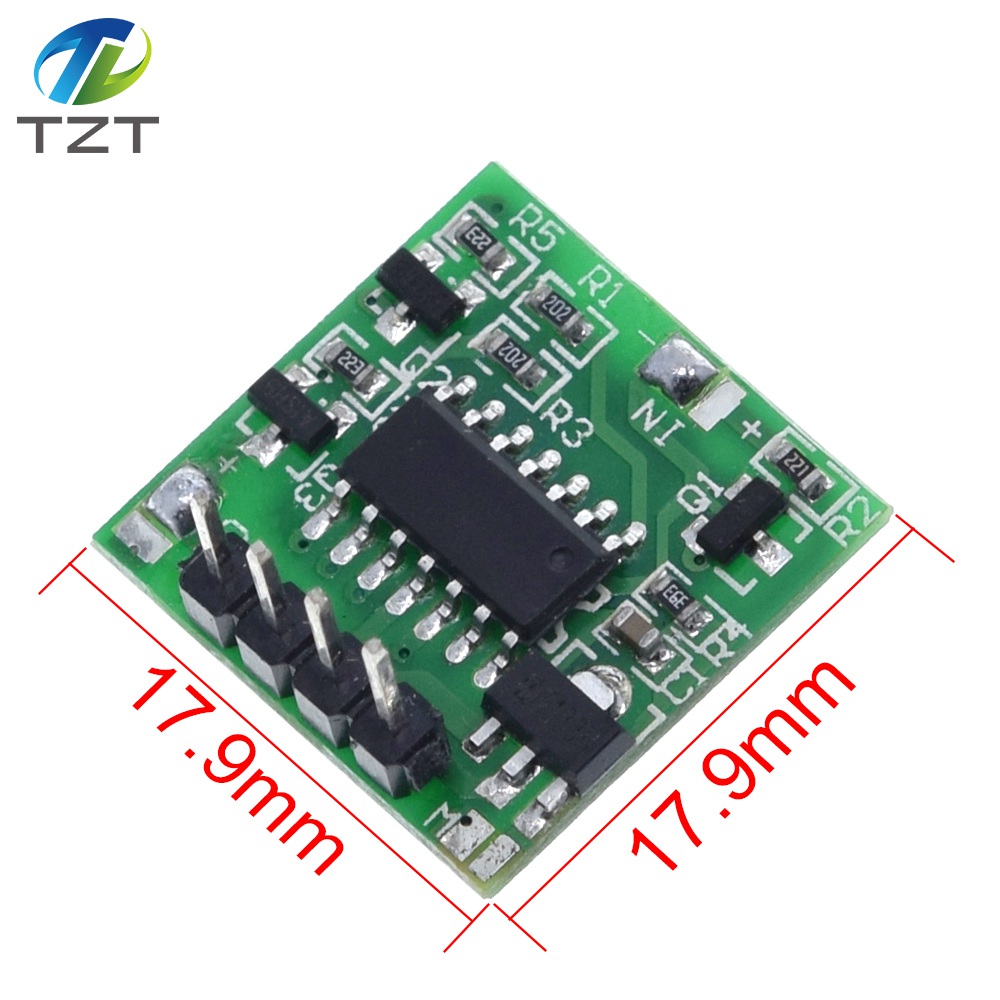

7. Size :18.7mm*18,7mm*7.4mm    pins distance:2.54mm

Set Timer:

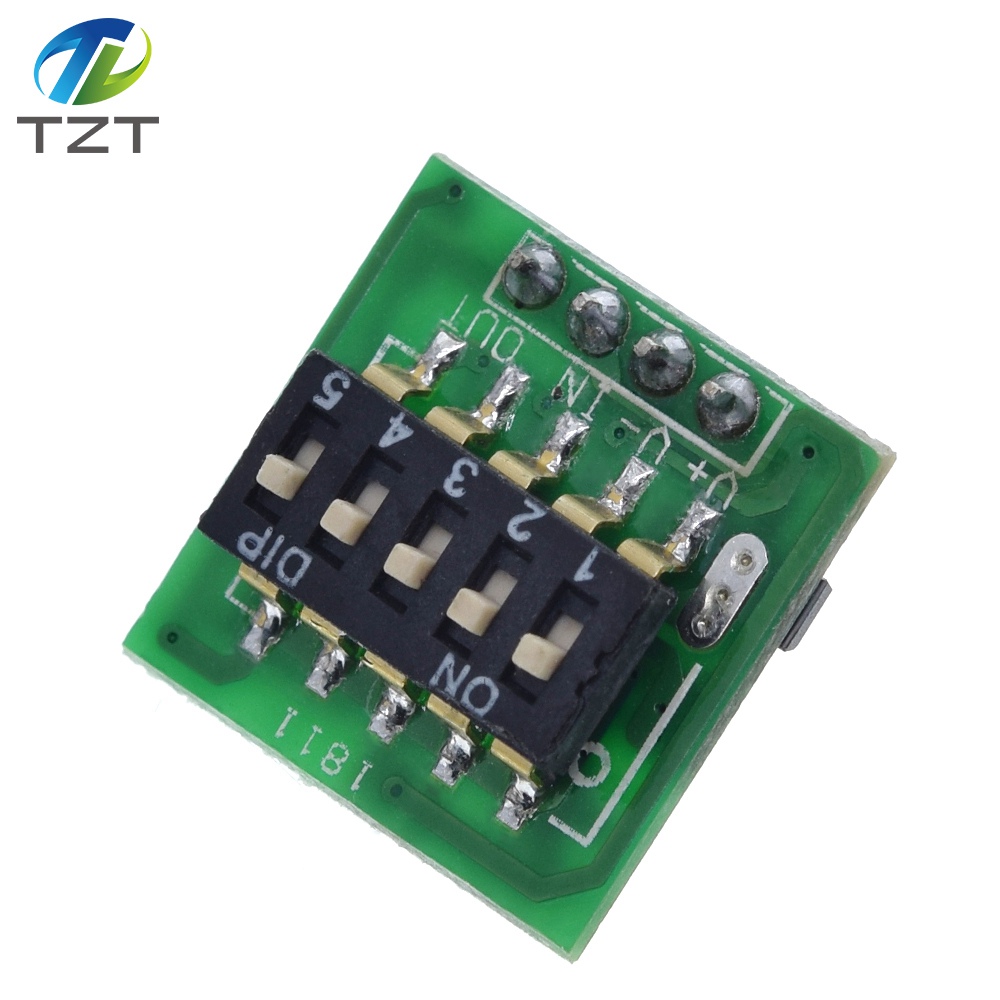

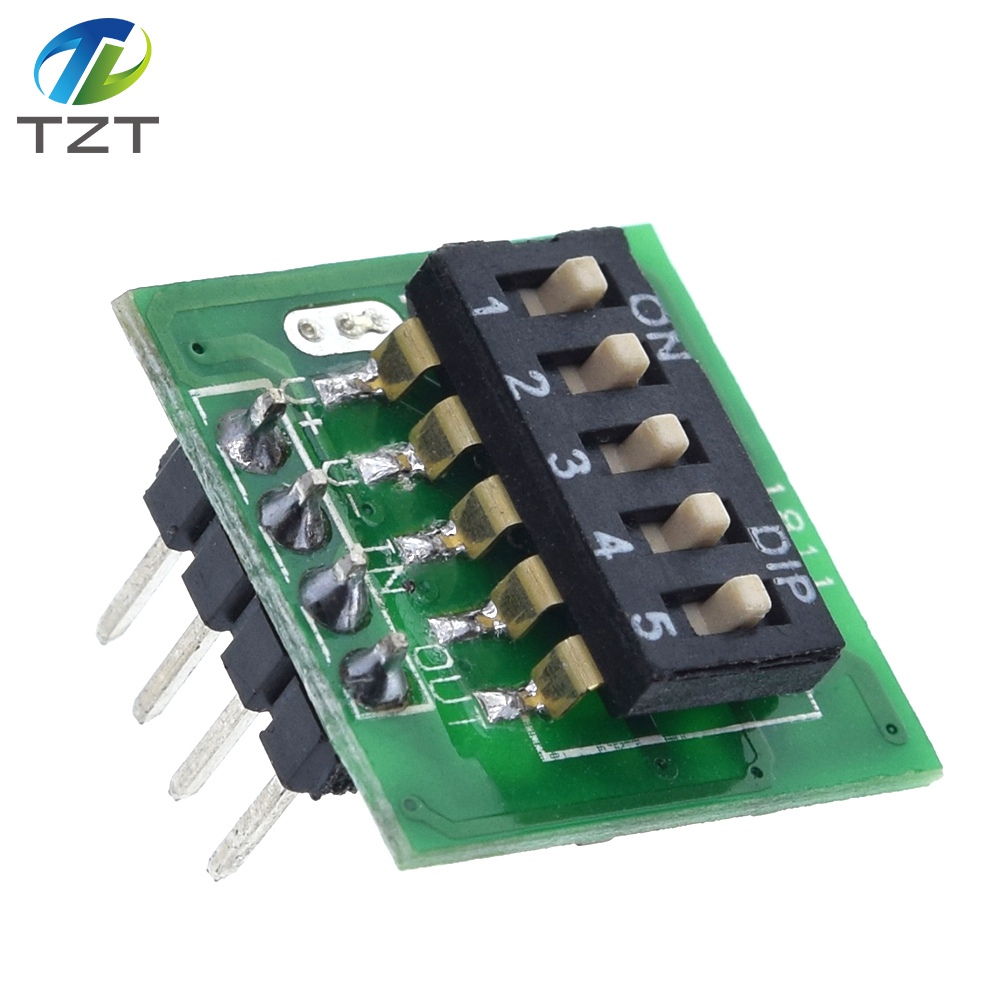

1.NOT short M Pads on PCB(0:Switch OFF;1 Switch ON):
00000:10 seconds    01000:4 minutes    10000:14 minutes    11000:30 minutes
00001:20 seconds    01001:5 minutes    10001:16 minutes    11001:35 minutes
00010:30 seconds    01010:6 minutes    10010:18 minutes    11010:40 minutes
00011:60 seconds    01011:7 minutes    10011:20 minutes    11011:45 minutes
00100:90 seconds    01100:8 minutes    10100:22 minutes    11100:50 minutes
00101:120 seconds   01101:9 minutes    10101:24 minutes    11101:55 minutes
00110:150 seconds   01110:10 minutes   10110:26 minutes    11110:60 minutes
00111:180 seconds   01111:12 minutes   10111:28 minutes    11111:75 minutes

1.NOT short M Pads on PCB(0:Switch OFF;1 Switch ON):
00000:1.5 hours    01000:5.5 hours    10000:9.5 hours    11000:17 hours
00001:2.0 hours    01001:6.0 hours    10001:10 hours     11001:18 hours
00010:2.5 hours    01010:6.5 hours    10010:11 hours     11010:19 hours
00011:3.0 hours    01011:7.0 hours    10011:12 hours     11011:20 hours
00100:3.5 hours    01100:7.5 hours    10100:13 hours     11100:21 hours
00101:4.0 hours    01101:8.0 hours    10101:14 hours     11101:22 hours
00110:4.5 hours    01110:8.5 hours    10110:15 hours     11110:23 hours
00111:5.0 hours    01111:9.0 hours    10111:16 hours     11111:24 hours
