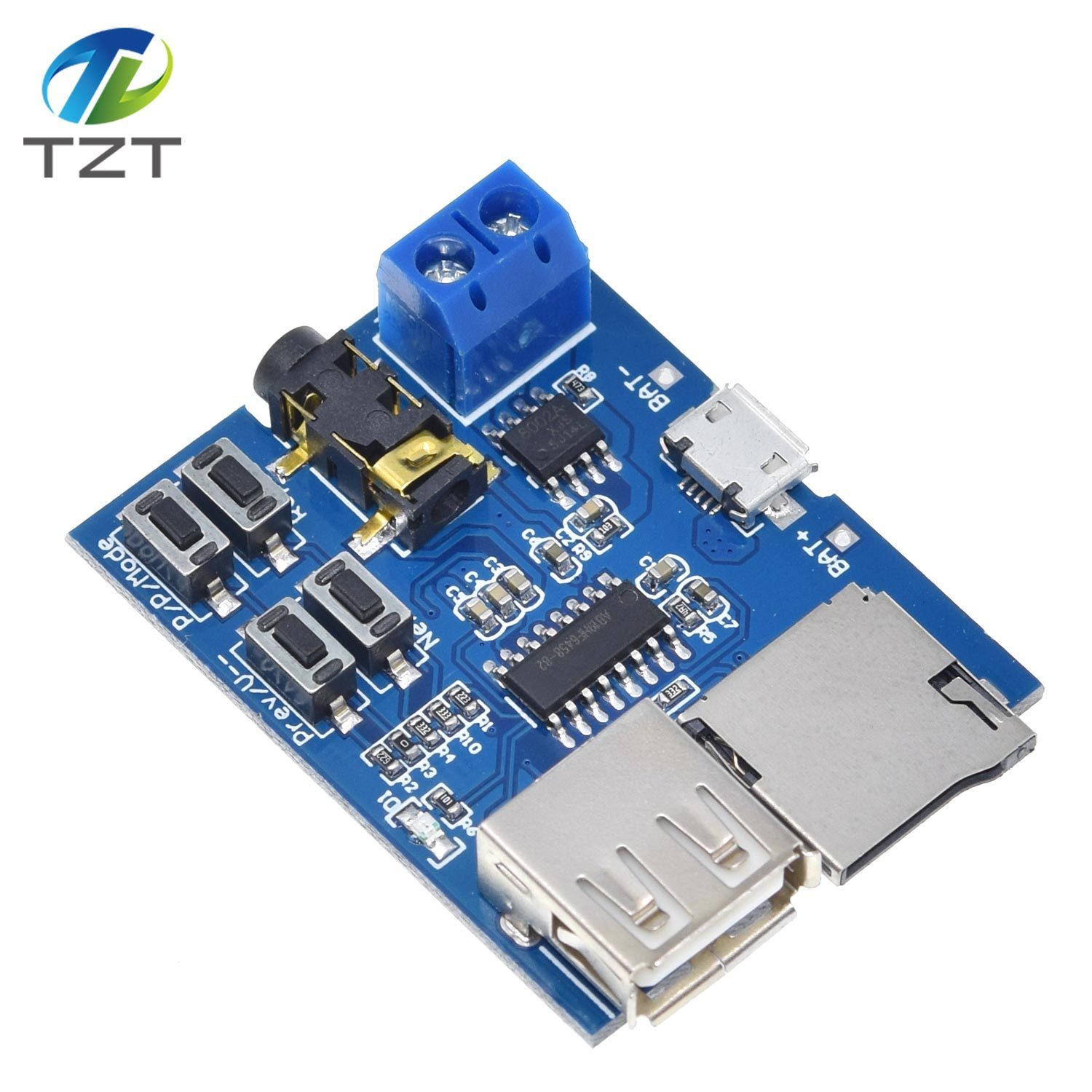

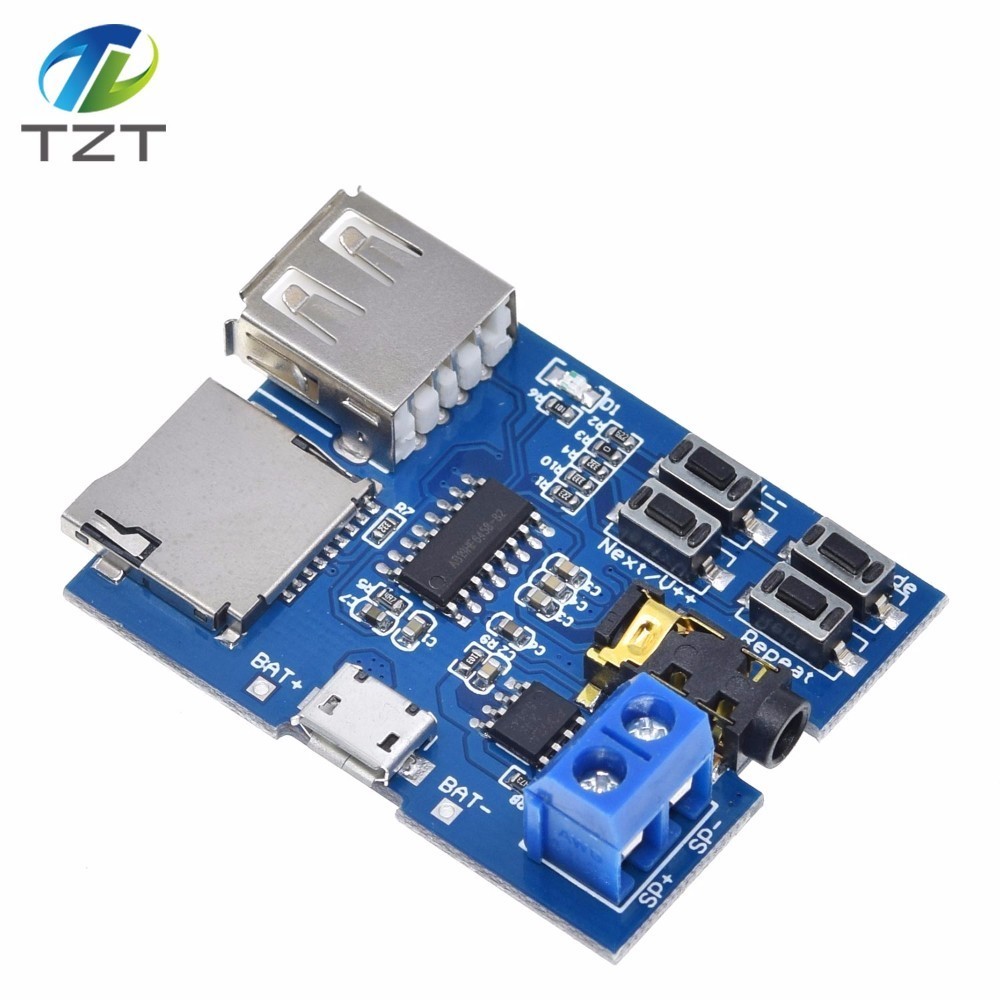

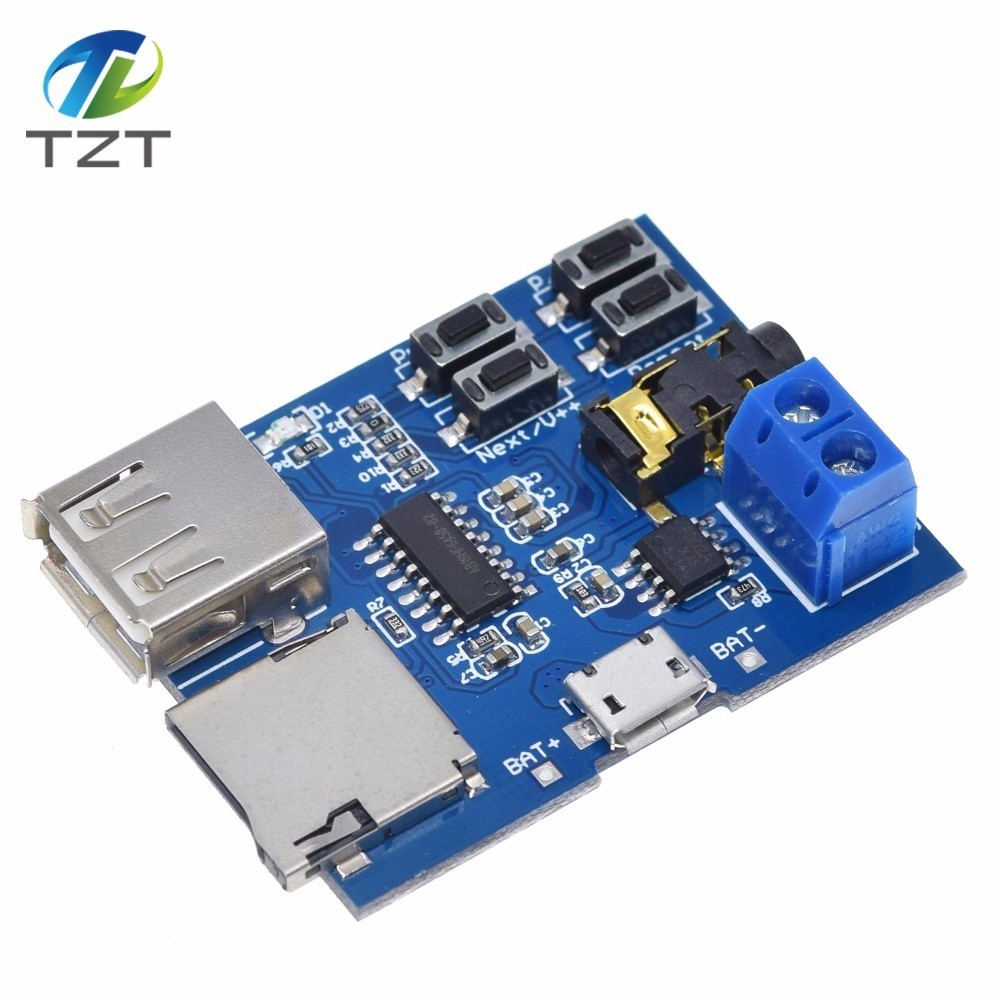

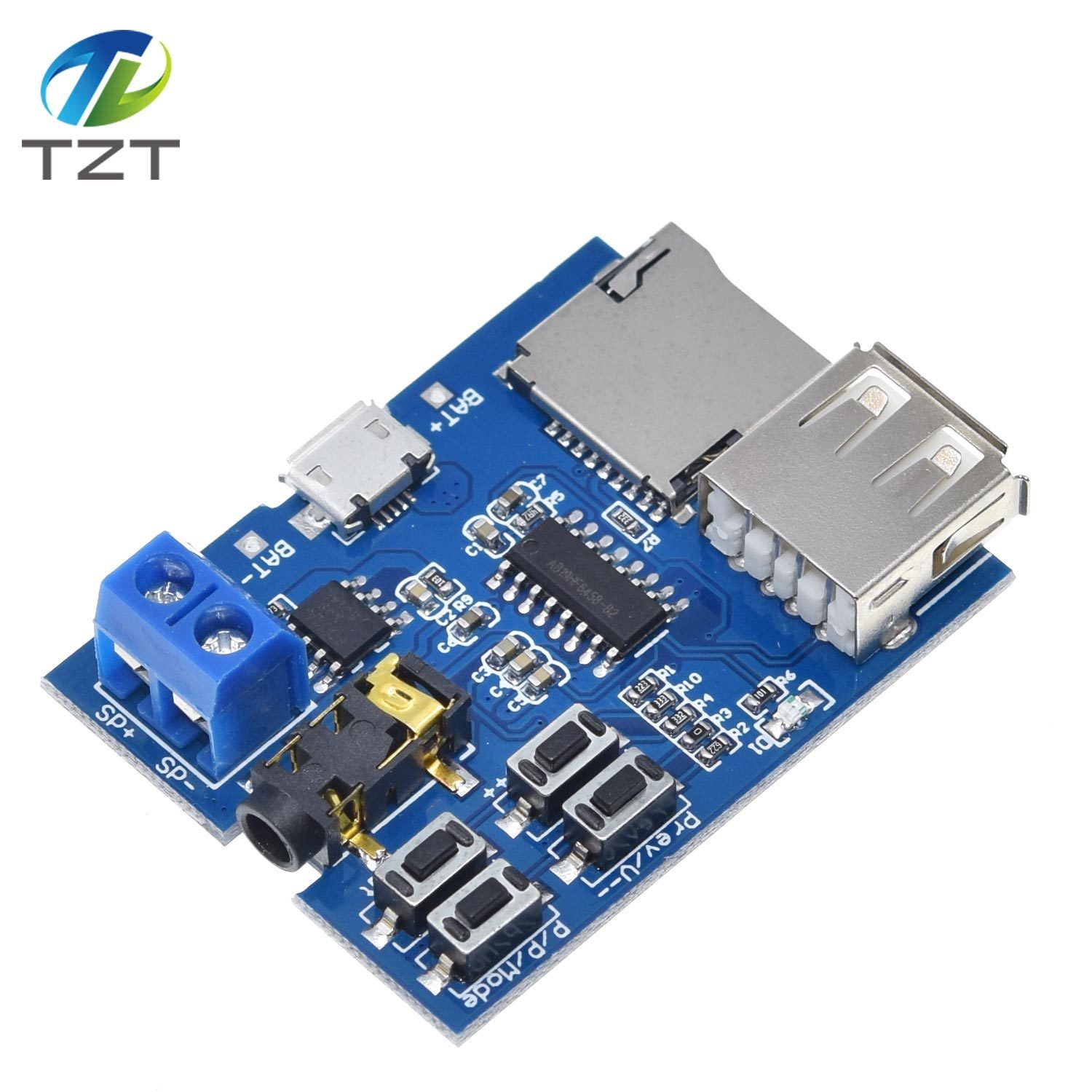

TZT TF card U disk MP3 Format decoder board module amplifier decoding audio Player

l Superior sound quality.Onboard 2Wmonoamplifier(5V power of up to 3W) is directlyconnected to the speaker(recommendation 4Ω3Wspeakers),3.5mm gold plated headphone jackcan connect with headphones or external audio.

l With aMicroUSB port.Through the mobile phone data line can use mobile power supply or the USB cable to charge the MP3 battery,also can use 3.7V lithiumbattery,orUSB 5V power supply.

l SupportTF Card(mobile phone memory card) andU diskplay mode.

l No soldering with speaker terminals for easy wiring.

l The module is designed to facilitate modification.

Product Overview:

1) Support MP3 format, playing power on automatically.When mp3 is played the red LED flashes.

2) Support U disk (test 32G), TF Card (test 16G) play mode; power on default TF card mode, if the TF card does not exist automatically jump to the U disk mode,and both devices have installed,then you can manually set the play mode.For details please see the key operating instructions.

3) Buttons can be adjusted up and down to control songs,volume up and down, pause or play, mode switching.For details please see the key operating instructions.

4) Press menu button enter the single/all song play mode.The default mode is the all song mode when power up.Pressing the Repeat button can replace the circulating mode.

Key Operating Instructions:

"Prev / V--" button: "Press" for switchingprevioussong, "long press" for volume down

"Next/v++" button: "Press" for switchingnextsong, "long press" for volume up.

"P / P / Mode" button: "Press" for the "Play/Pause" Switch, "long press" for U disk, TF card mode.

"Repeat" button: "Press" for “single/all song" mode(no long press)

Note:

1."Long press" approximate 2S.

2 .If you use U disk mode, it is recommended 5V power supply, and some U disk does not support 3.7V power supply.

Product s Pecifications:

Power range: 3.7~5.5V

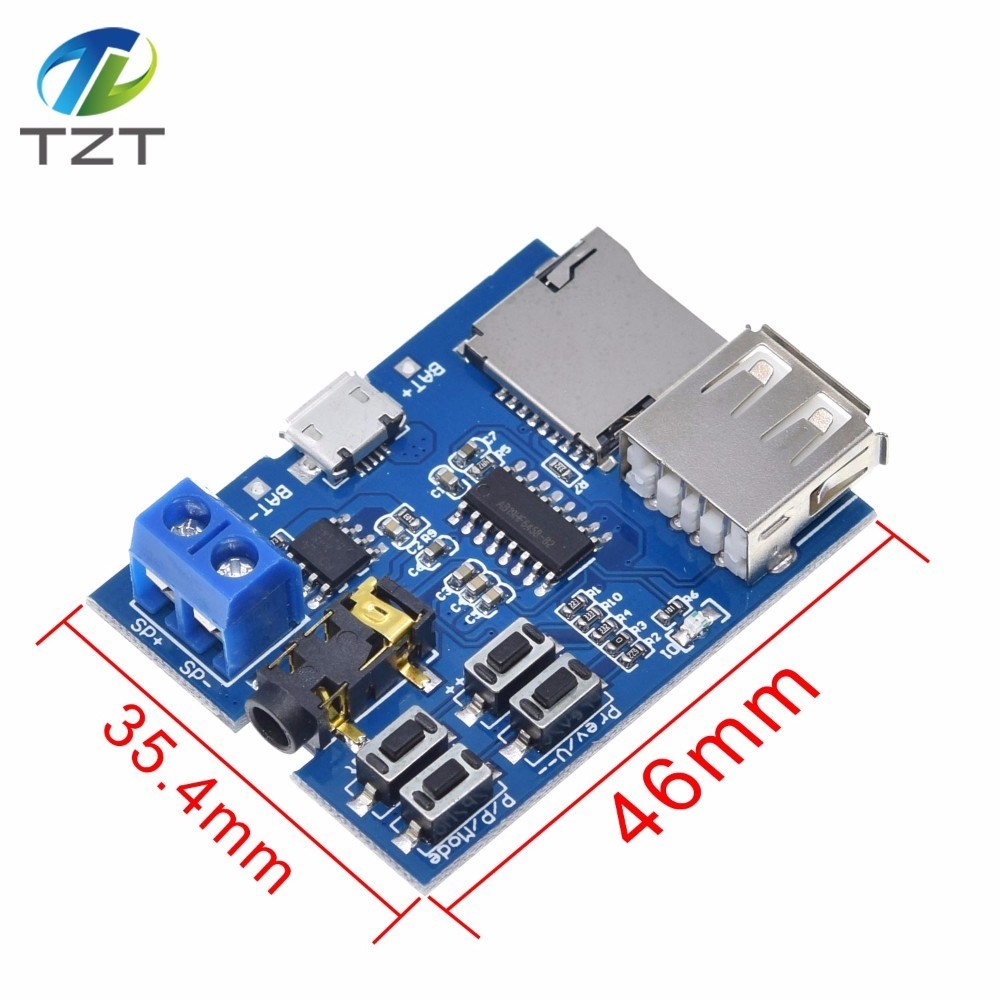

Product size: 45mm*36mm

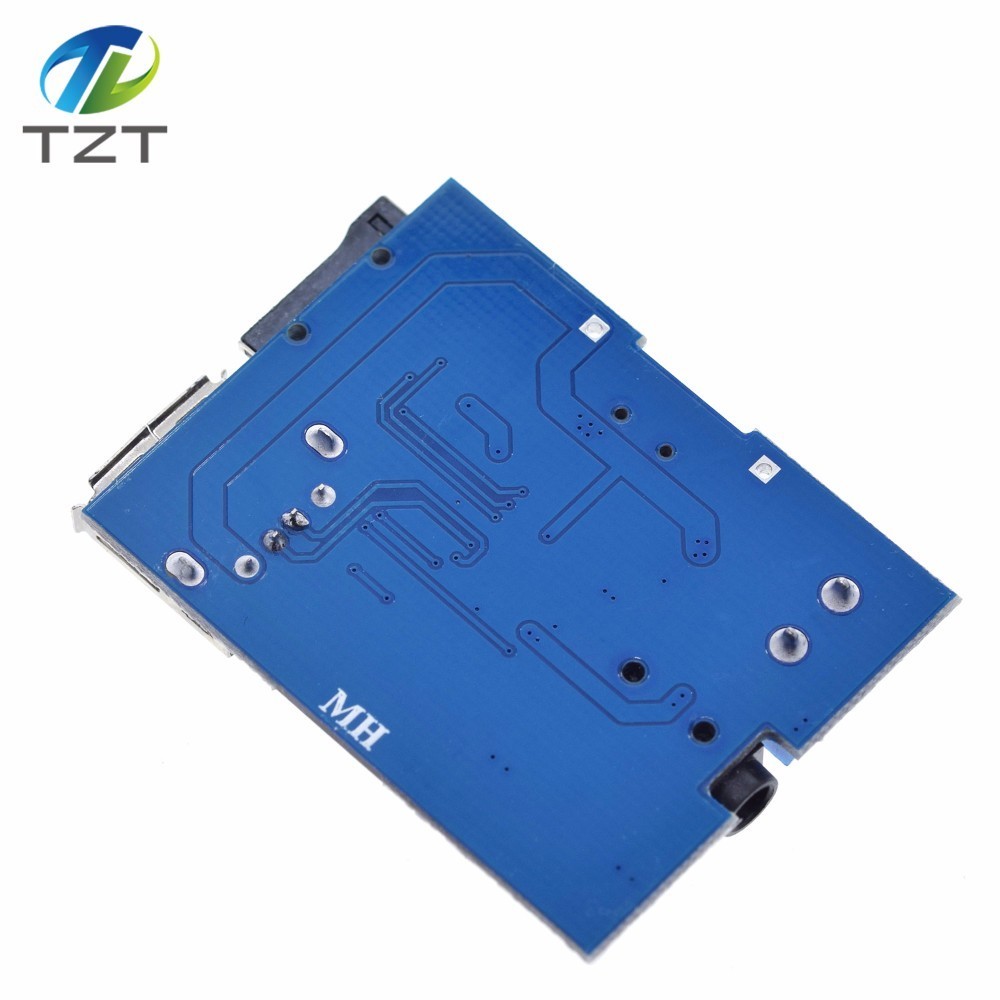

Exquisite double board design, large area of copper, stable and reliable.

Using the anti-static bag exquisite packaging the module, to avoid the electrostatic damage in transit. .

Mp3 nondestructive decoder board Built-in amplifier mp3 module mp3 decoder TF card U disk decoding player
