TZT Electric indicator 90-1000V Non-Contact Socket Wall AC Power Outlet Voltage Detector Sensor Tester Pen LED light AC 110V-220V

One sound means open and two sounds means close

Characteristics

Non-contact test

Judge electricity wire line

Distinguish the zero line

Sound and light alert

Safe and reliable

LED lighting function, easy to work in dark environment

Pen clip design, easy to carry

Technologyfeatures

Test range: 90V-1000V AC

Generaldescription

How to use:

Install the battery, press the switch body in the middle. If LED lights, tester is good.

Move tester pin to the wire, when it lights with DDD sound, the wire is a live wire.

Ifwork inpoor light environment, press LED lighting switch.

Instrument maintenance:

The tester is with high resistance and safe insulation. Keep it dry and clean.

Replace battery when LED light is not on; Take out battery for long time use.

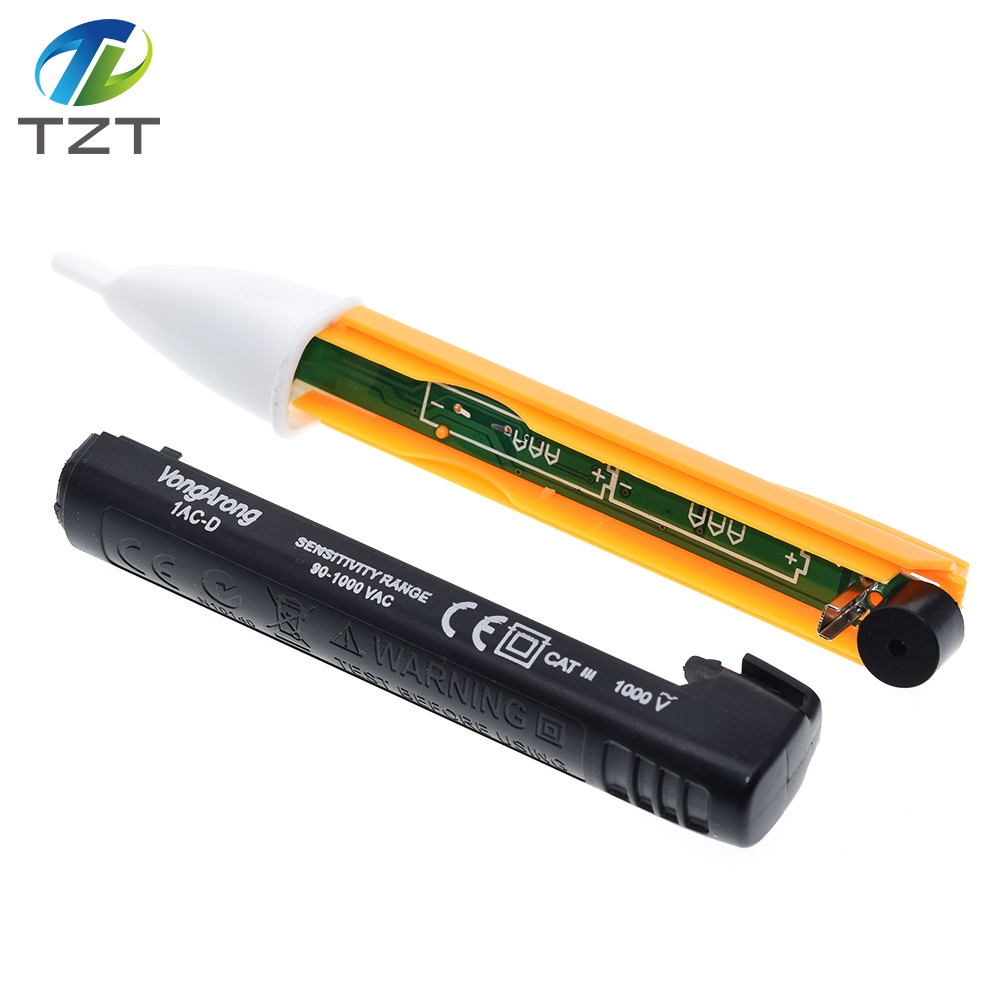

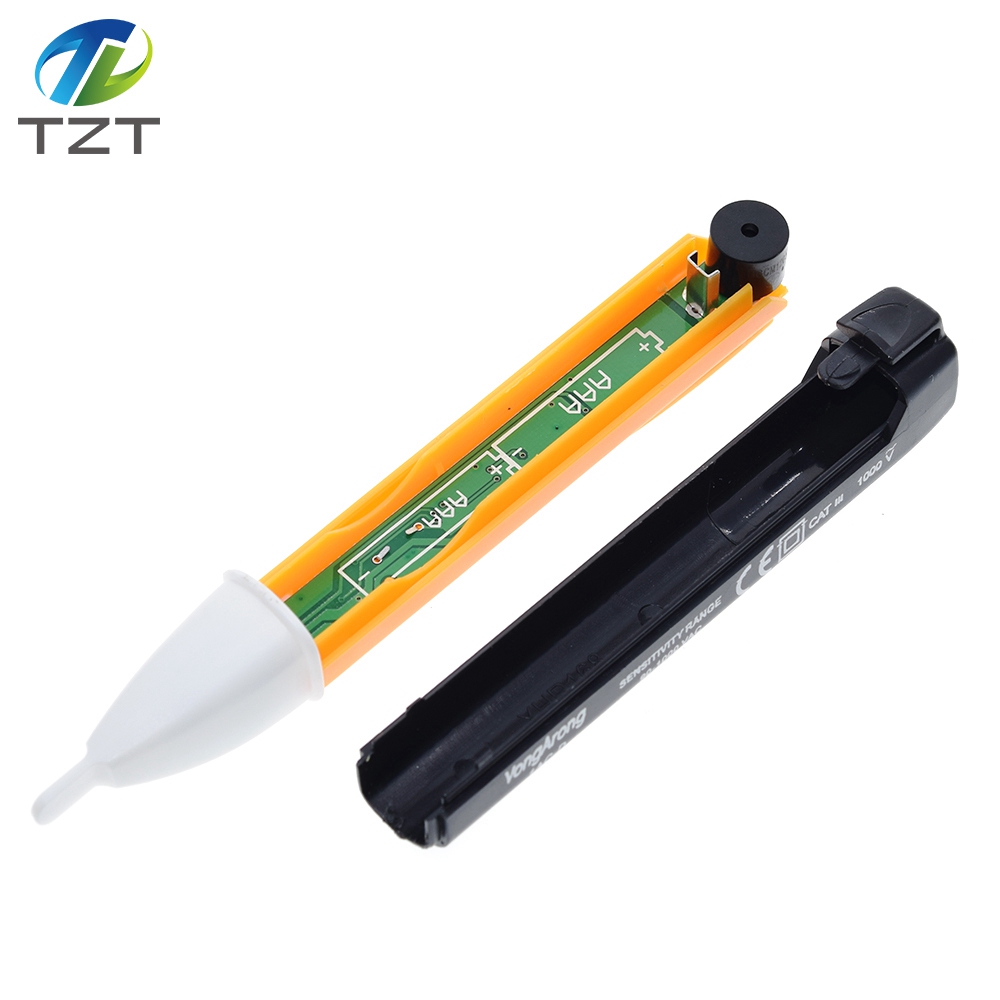

Power supply: two 1.5V AAA battery

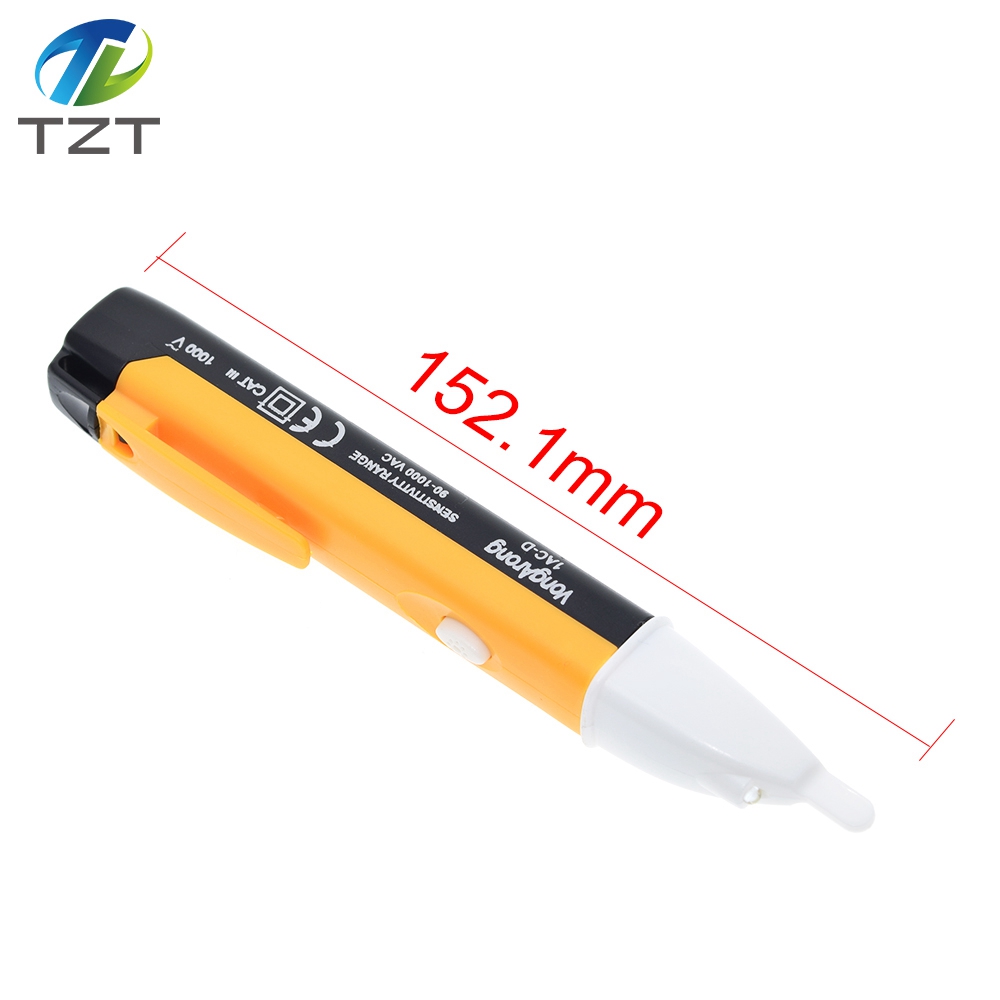

Product size: 148x17x26mm

Product weight: about 23g (without battery)

Standard accessories: meter (without battery)

Due to the high sensitivity of the new test pen, it cannot identify the fire line and zero line and can only identify separate panel sockets and cannot identify two adjacent panel sockets because the zero line is too close

Features: Electric Socket Wall AC Power Outlet Voltage Detector Sensor Tester Pen 90-1000V The next generation AC non-contact voltage testers are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there is voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home. A perfect tool kit for home and electric industry uses Ideal design for testing power cables, circuit breakers, wall sockets, junction boxes, fuses, etc Just press the button, white LED light can be always on when there is absence of voltage "Beep" sound and red flashing LED would indicate the presence of voltage Totally insulated, no exposed metal or conductive parts Long life and low power consumption Compact, safety, & easy to carry Specifications: Frequency Range: 50 to 500 Hz Test Voltage Range: 90-1000V AC Safety Rating : CAT II 1000v Powered By: 2 x AAA Batteries (Not included) Material: ABS Plastic Color: Yellow / Blue Item size: 152*23*15mm
