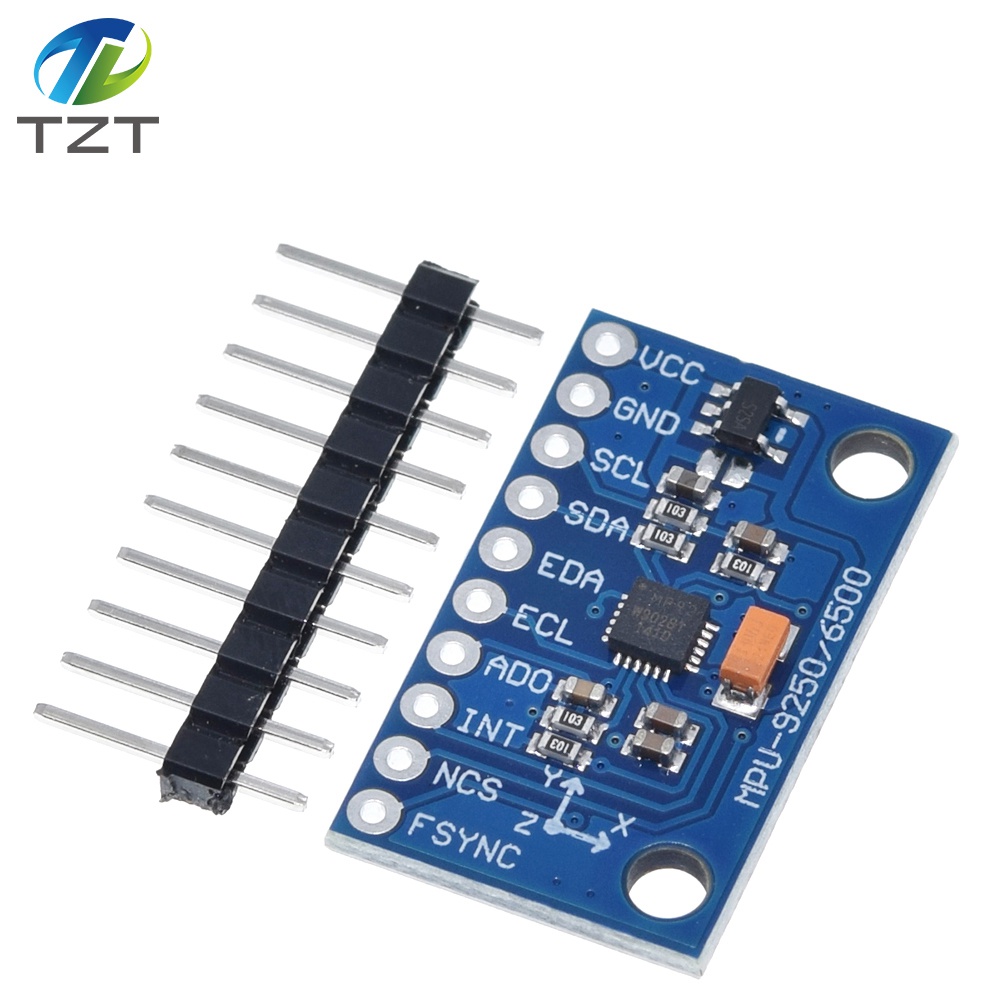

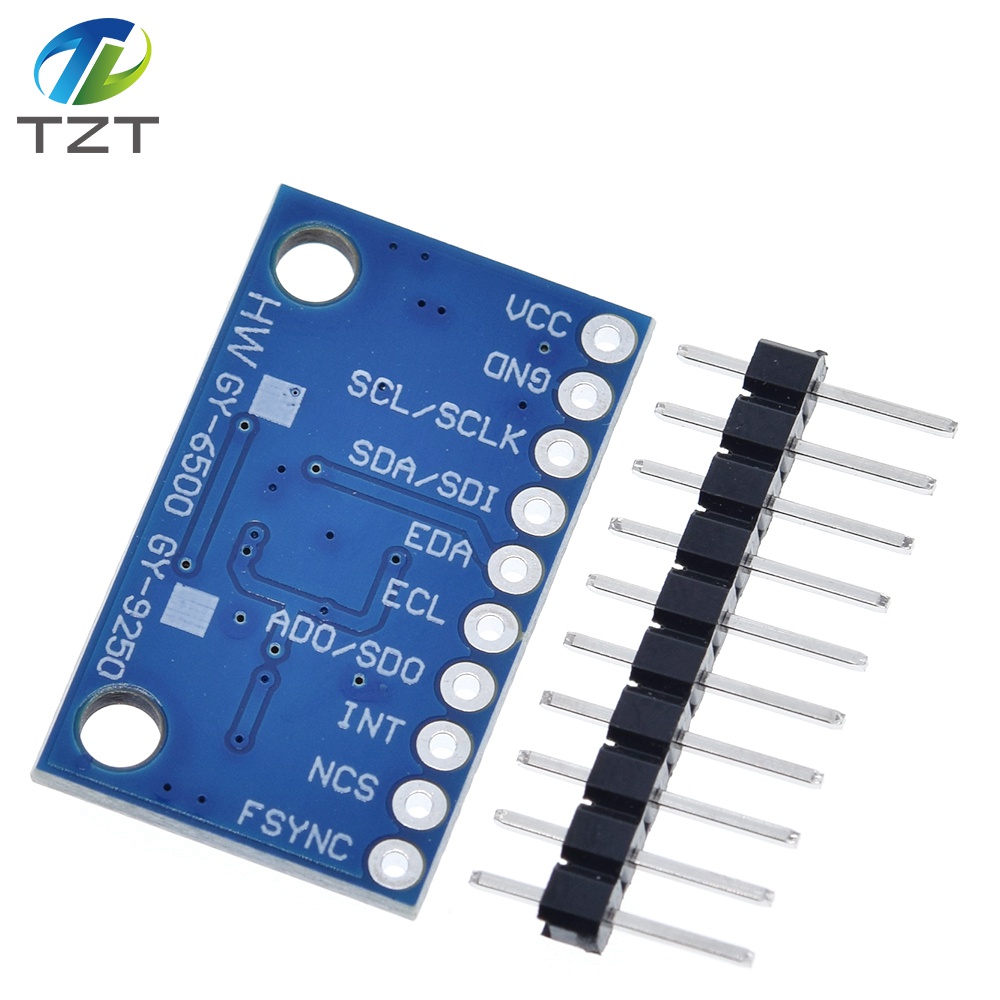

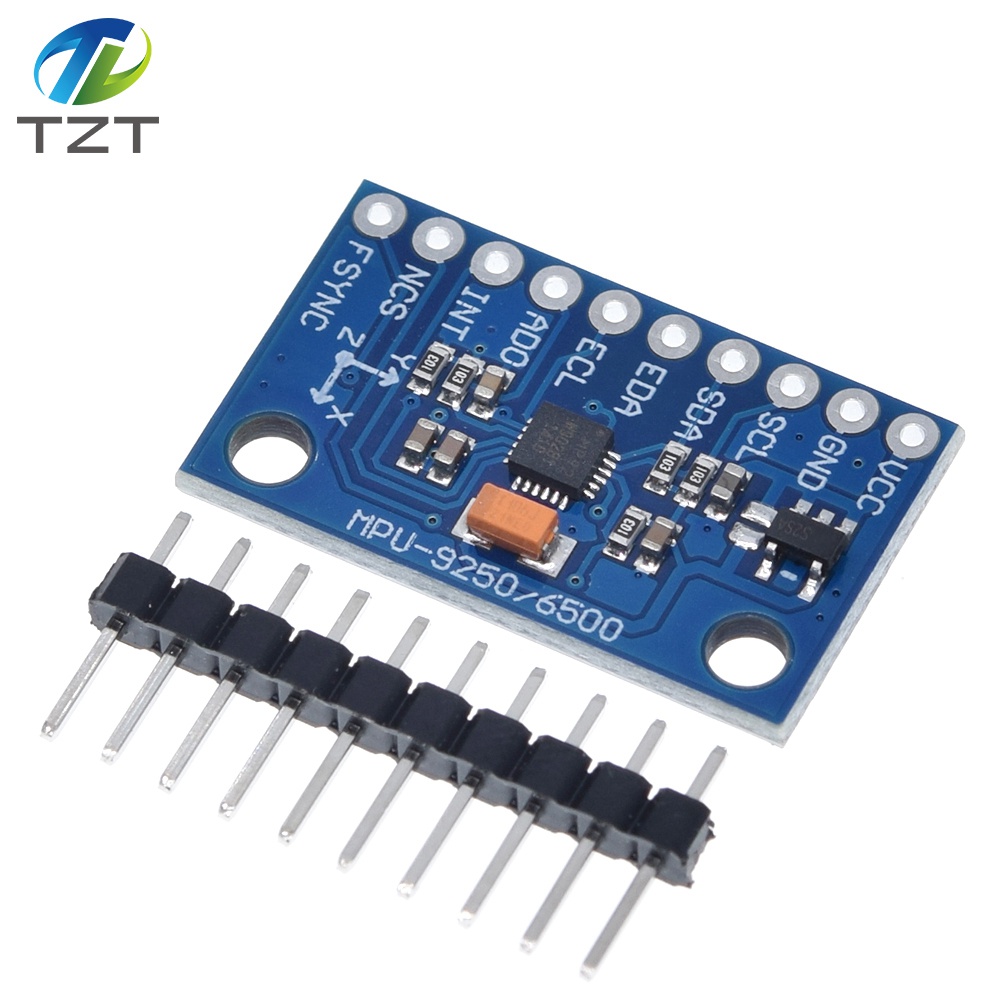

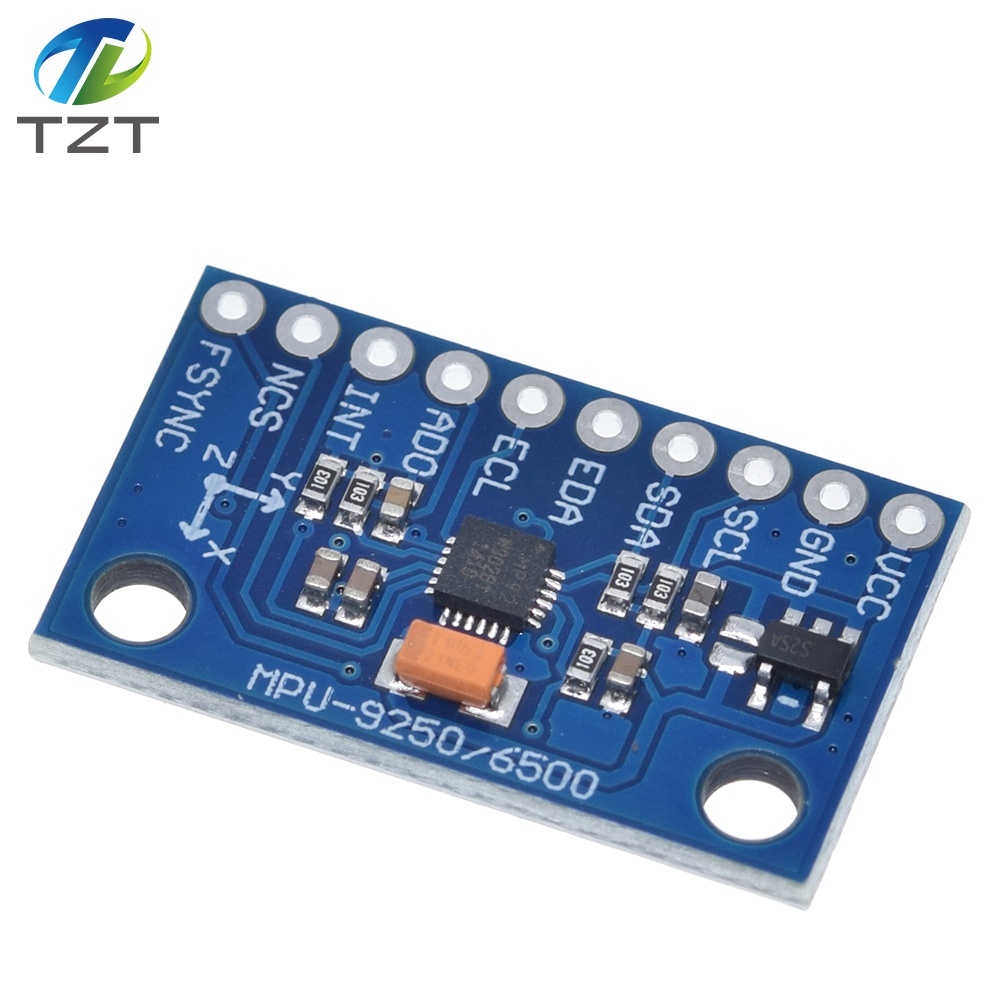

1Set SPI IIC/I2C GY-9250 MPU 9250 MPU-9250 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Board Module MPU9250 3-5V Power

MPU-9250 modules ( three-axis gyroscope + triaxial accelerometer + triaxial magnetic field )

Use Chip : MPU-9250

Power supply :3-5v ( internal low dropout regulator )

Communication: IIC communication protocol standard

Chip 16bit AD converter 16 outputs the data

Gyro range : ± 250 500 1000 2000 ° / s

Acceleration range : ± 2 ± 4 ± 8 ± 16g

Magnetic field range : ± 4800uT

Using Immersion Gold PCB, machine welding process to ensure quality

2.54mm pin pitch

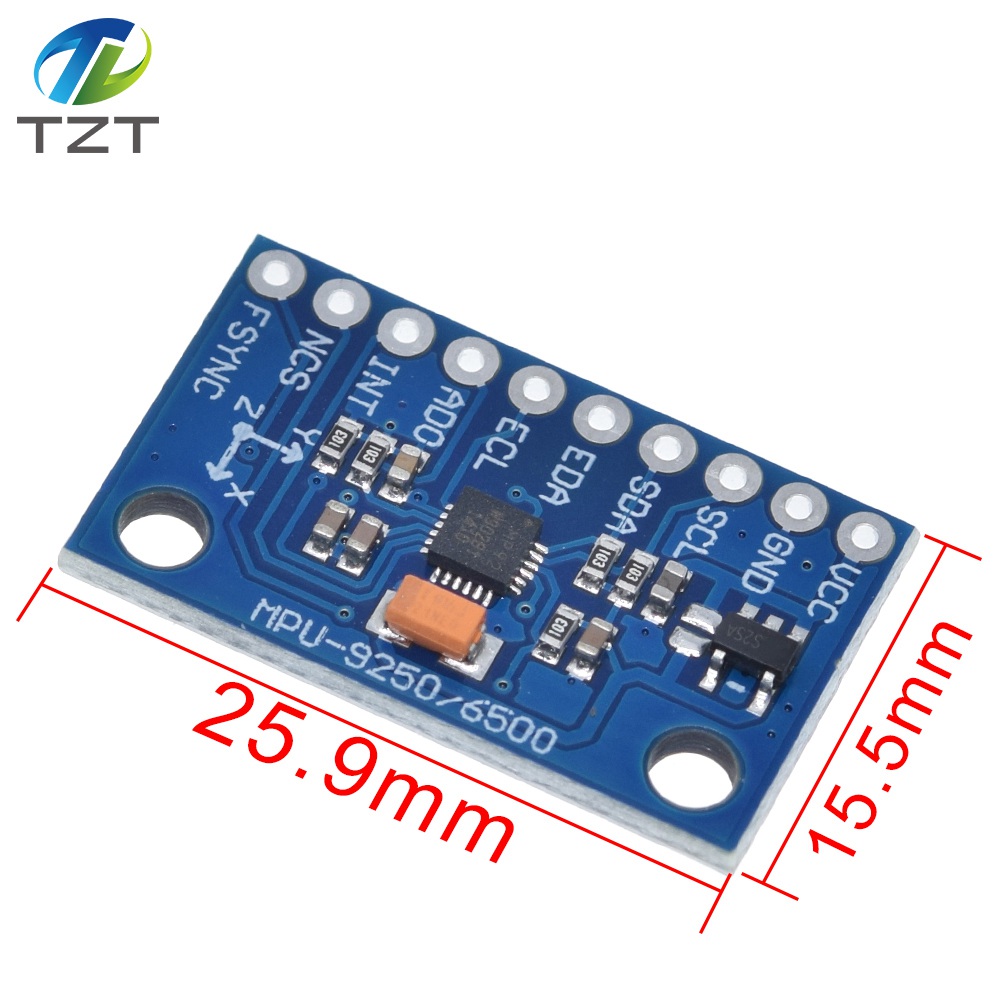

Module size 15mm * 25mm
