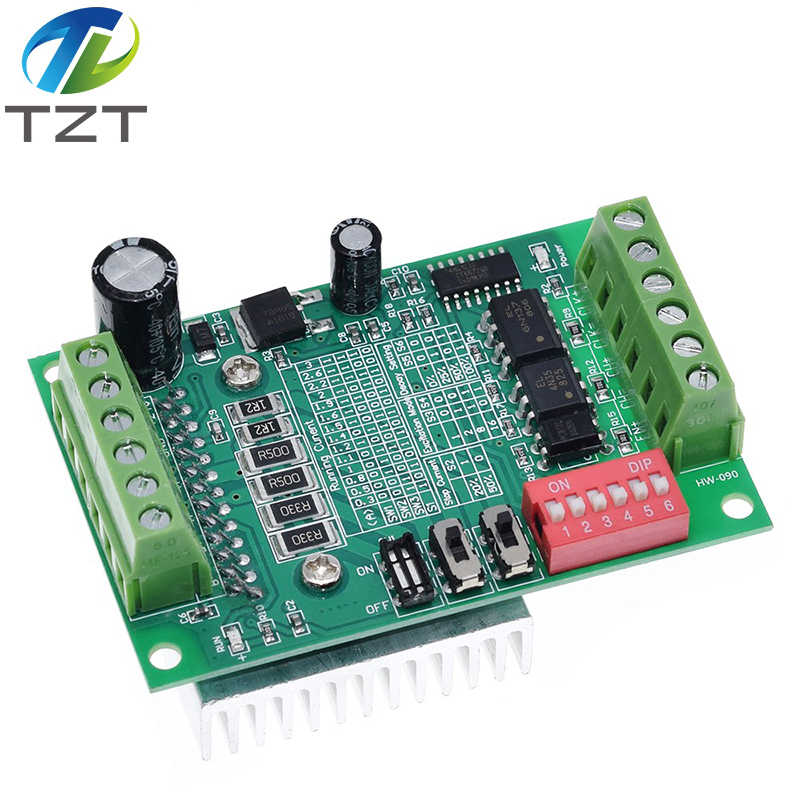

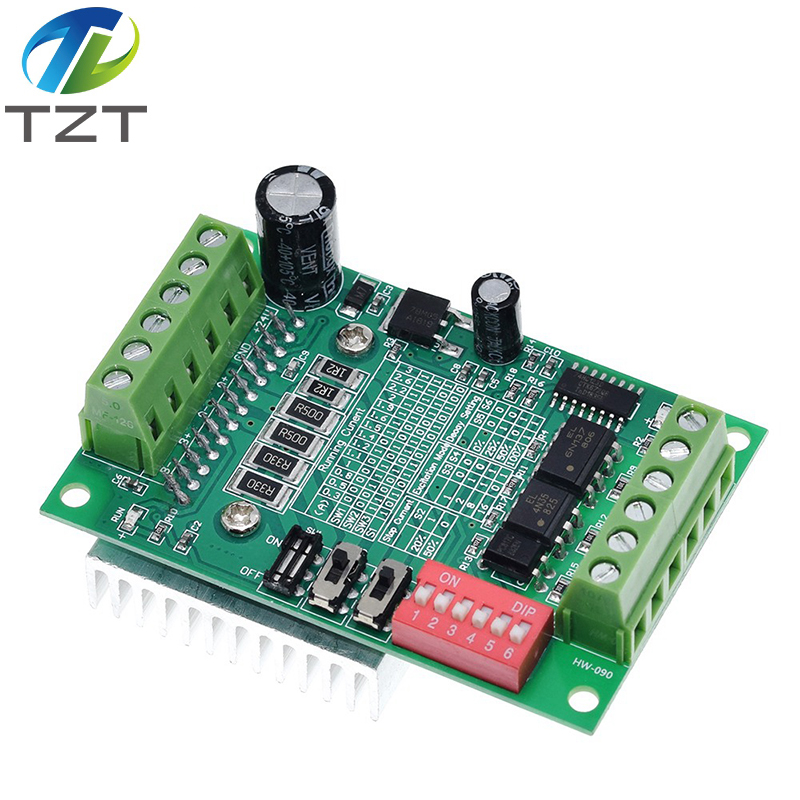

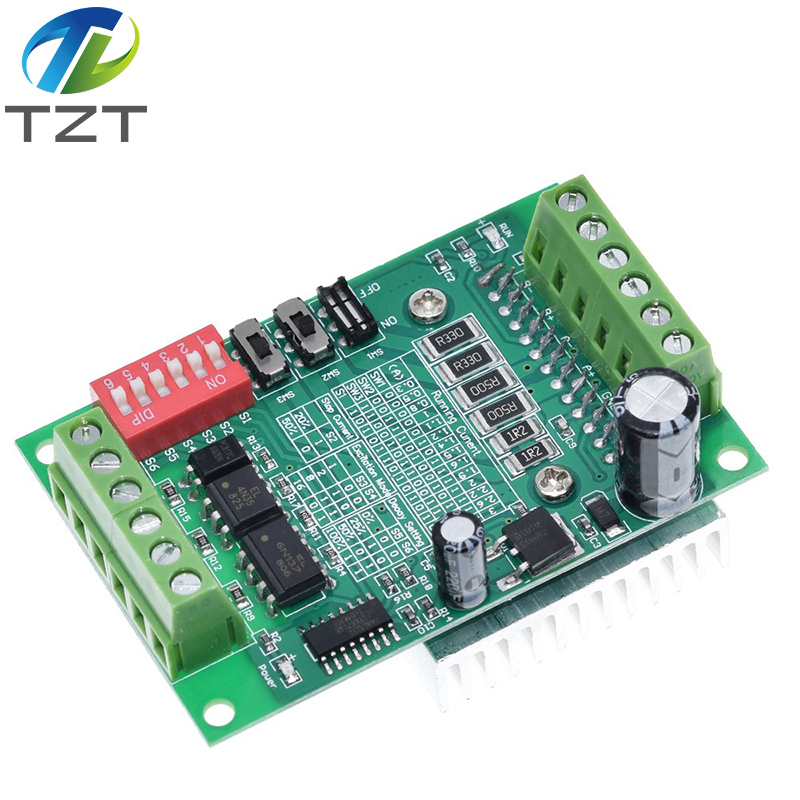

TZT TB6560 3A stepper motor driver stepper motor driver board axis current controller 10 files

• Quantity: 1pc

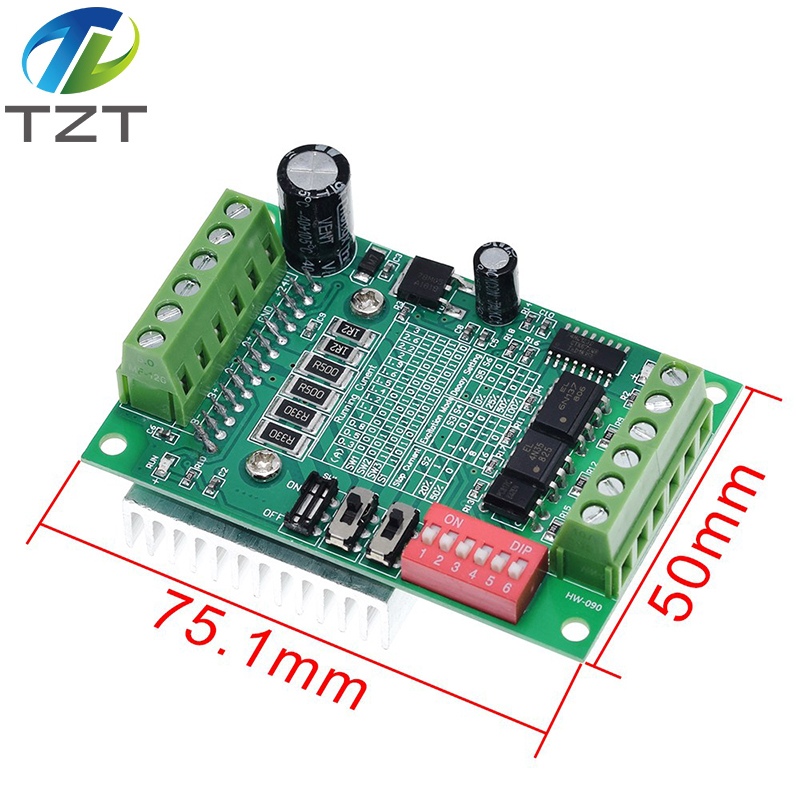

• Size:75*50*35(mm)(LxWxH) / 2.95''x1.96''x1.37'' (approx)

• Rated maximum output: ± 3A, peak 3.5A.

• Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.

• Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.

•
  For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function.

• 6N137 high-speed optical coupling, guarantee high speed without losing step.

• Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

• Features similar products:

  1 current grade-by-adjustable to meet your demand for a variety of applications.

  2 semi-automatic flow adjustable.

  3 6N137 high-speed optical coupling, guarantee high speed without losing step.

  4 plate printed setup instructions operation without manual also.

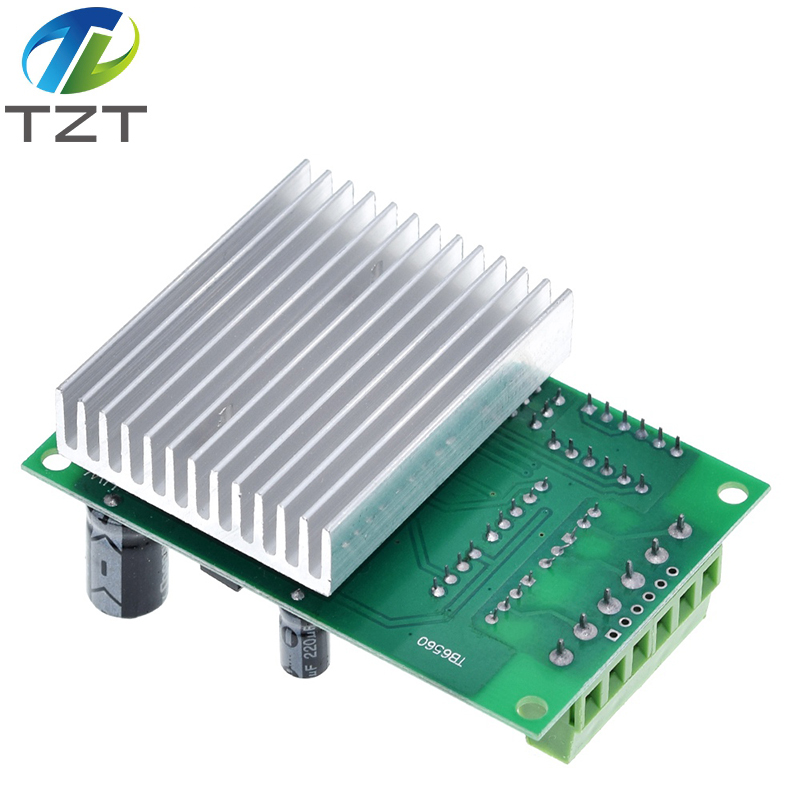

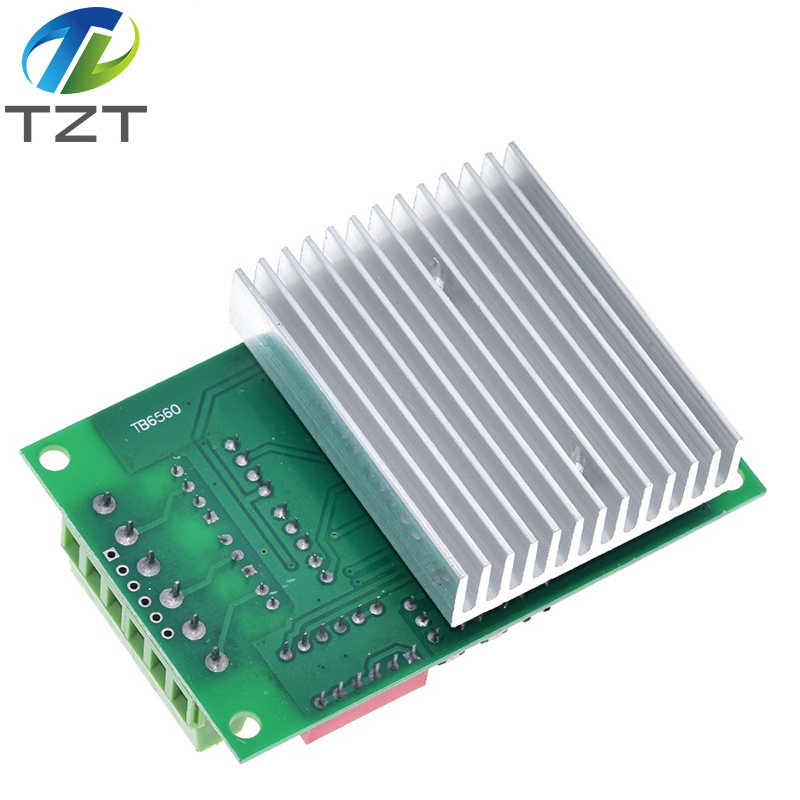

  5 thick teeth radiator, good heat dissipation.
