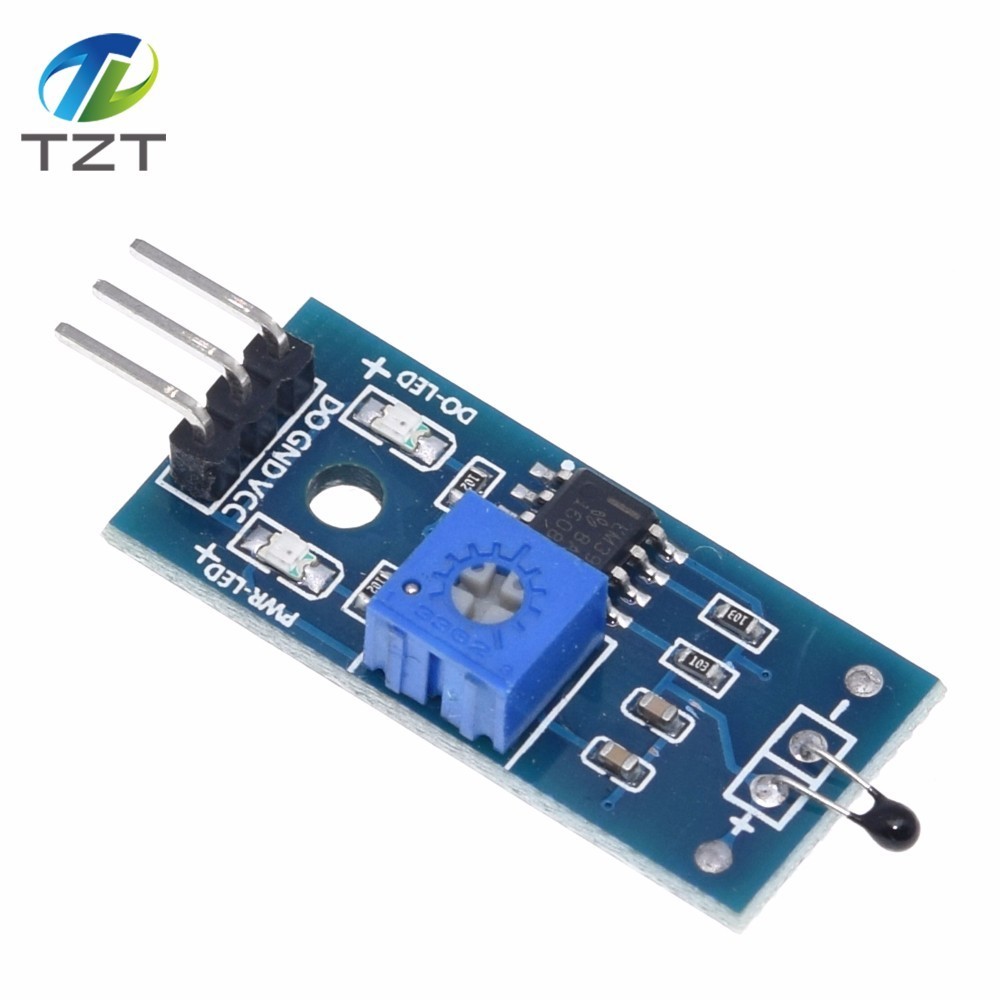

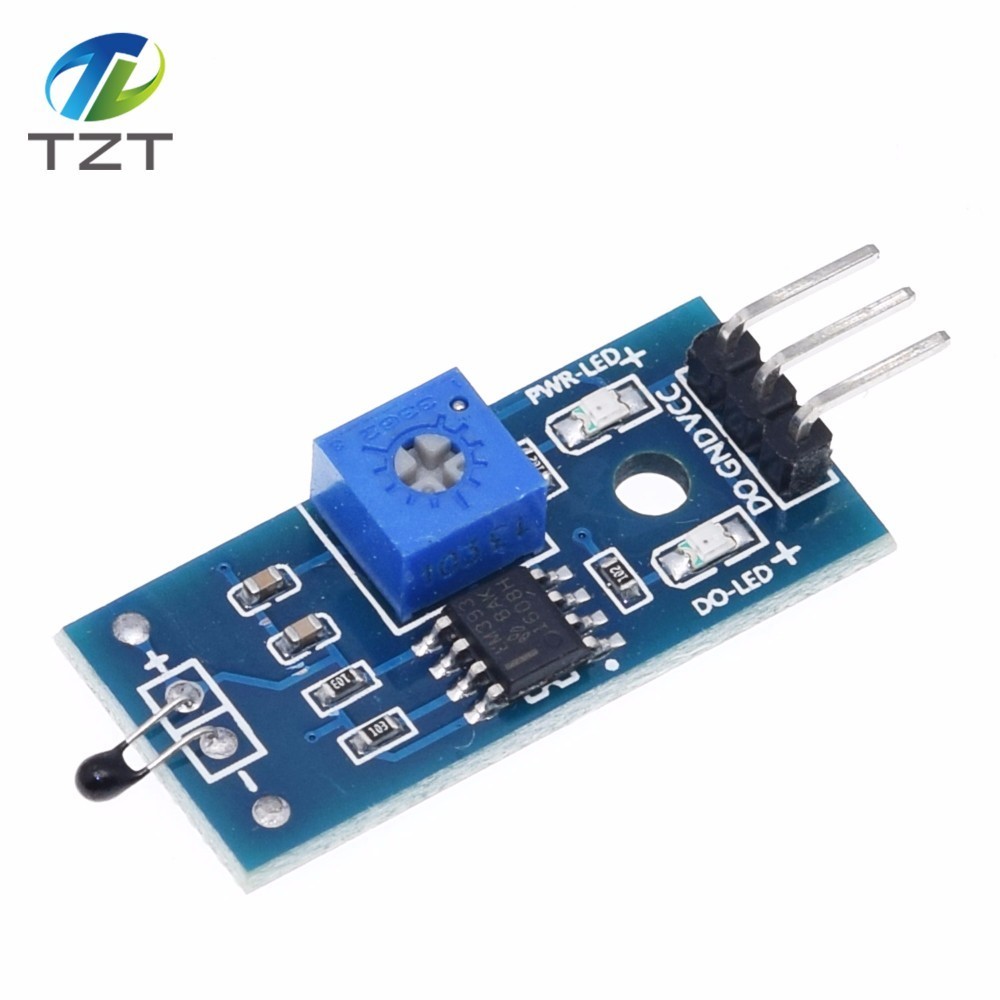

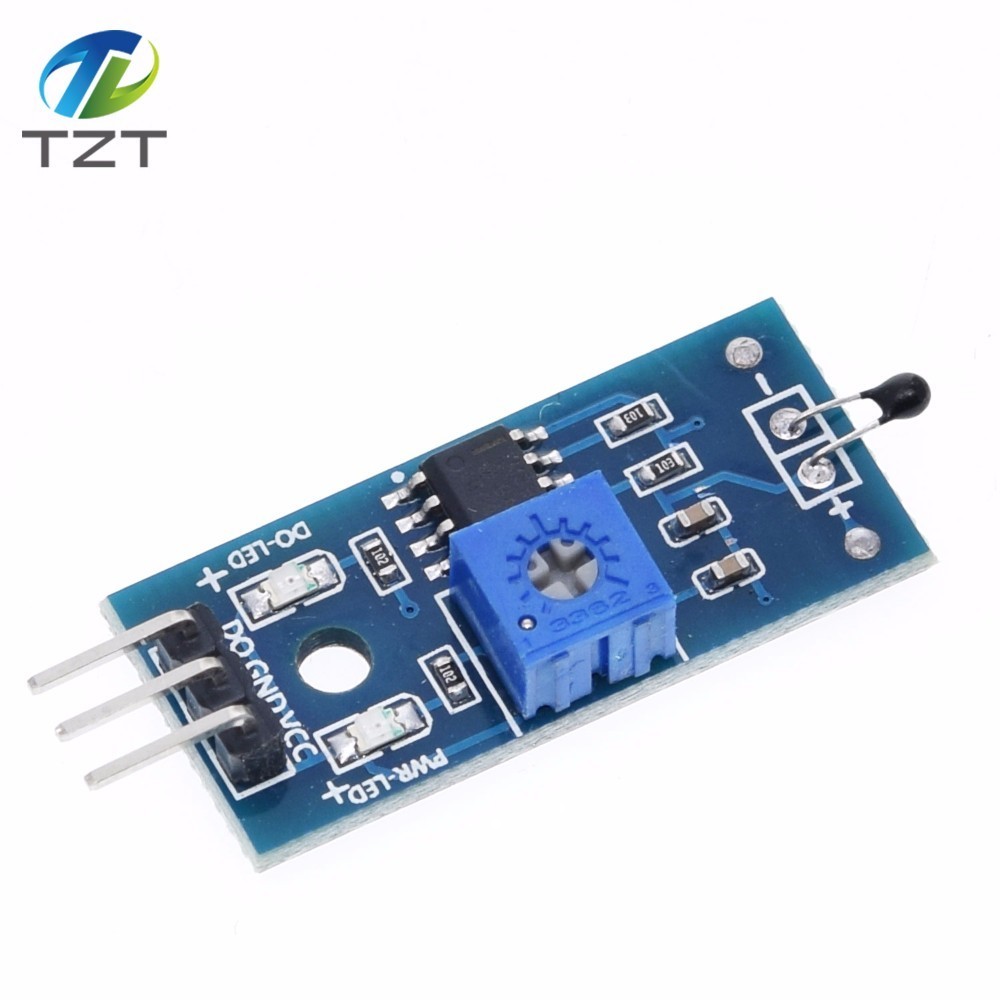

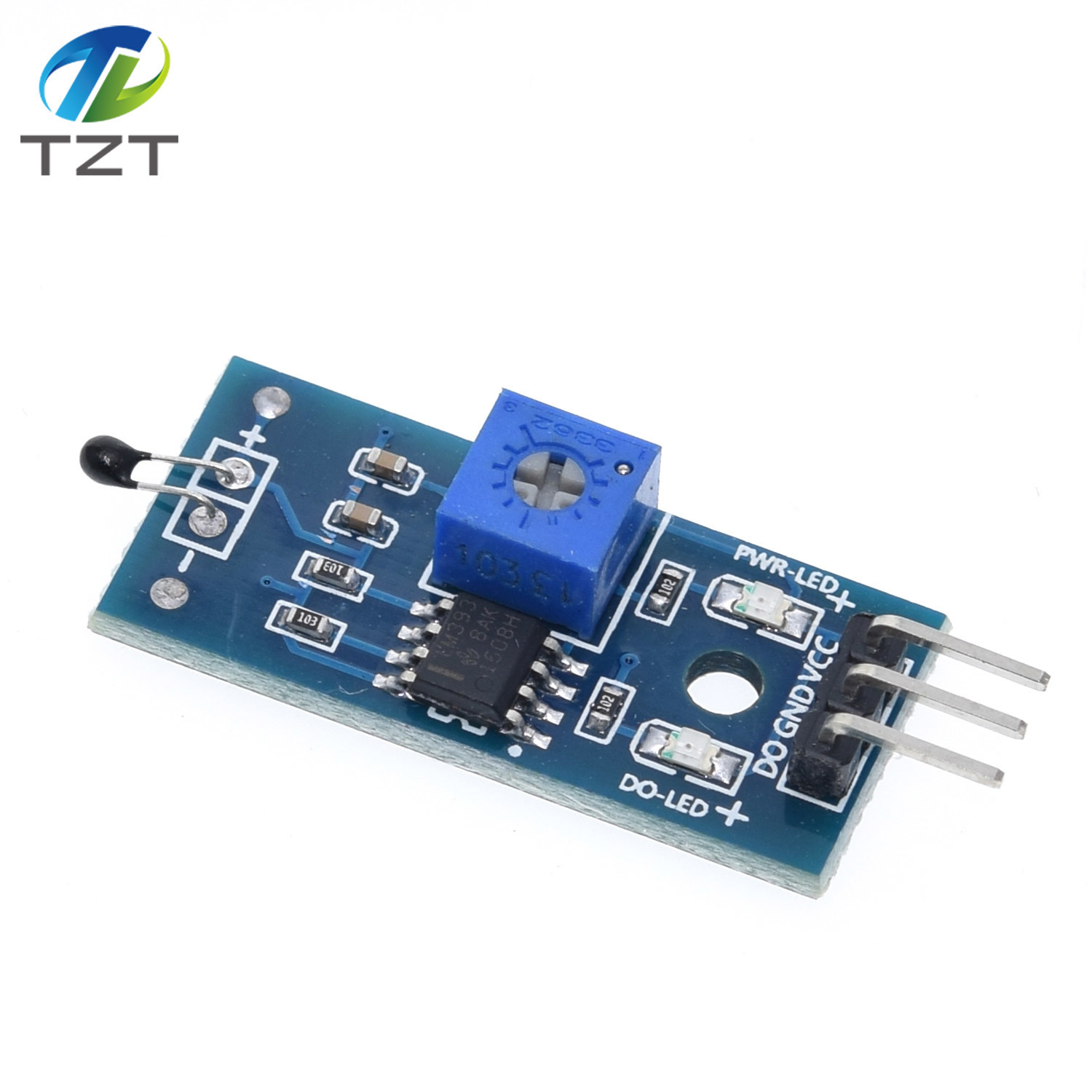

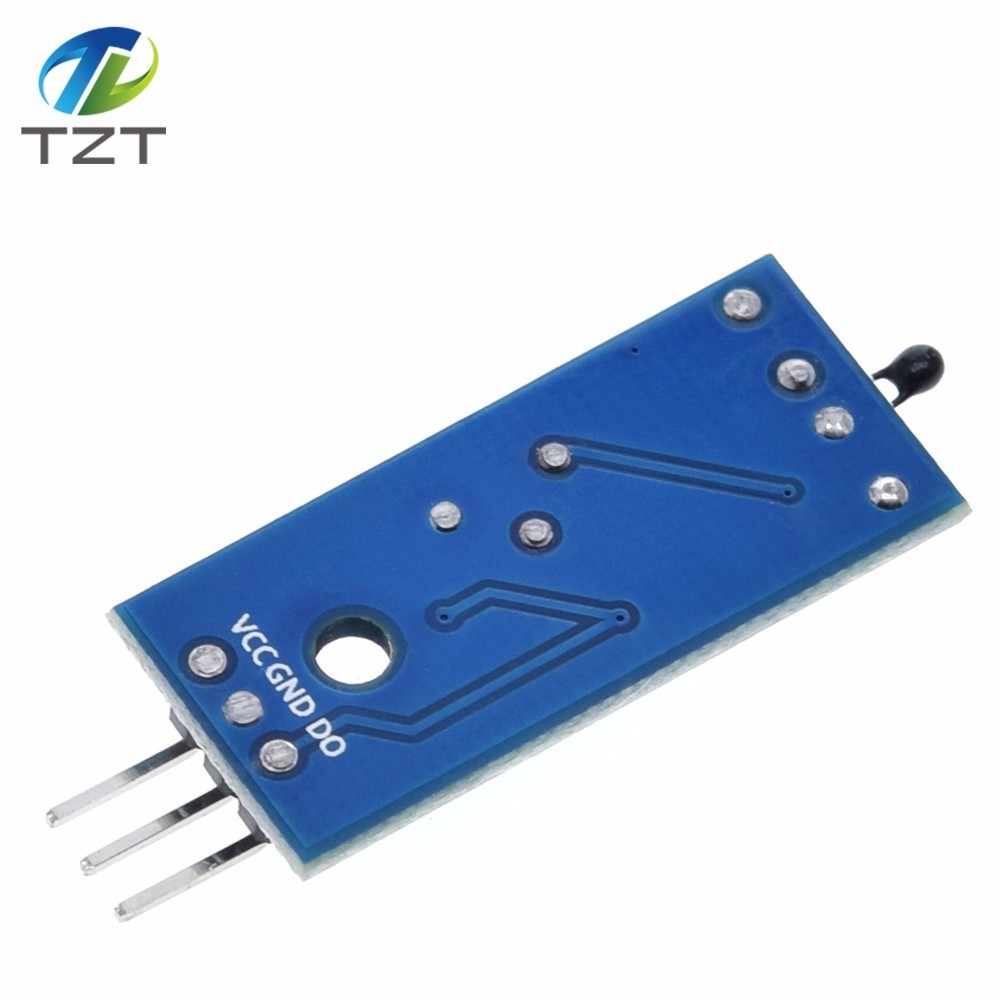

Thermal Sensor Module Temperature Sensor Module Thermistor Sensor for arduino Diy Kit

Score：

Brand：TZT

Weight：0.01g

Stock：9654

Price：$0.19

Style：

Quantity:: - +

Uses:

Temperature detection, temperature control sensors , ambient temperature detection

Module Features :

1, using the NTC thermistor sensor , good sensitivity

2 , the comparator output signal is clean, good waveform , driving ability , more than 15mA.

3 , adjust the temperature distribution position detection threshold

4 , the working voltage 3.3V-5V

5, the output format : digital switching outputs ( 0 and 1 )

6 , a fixed bolt holes for easy installation

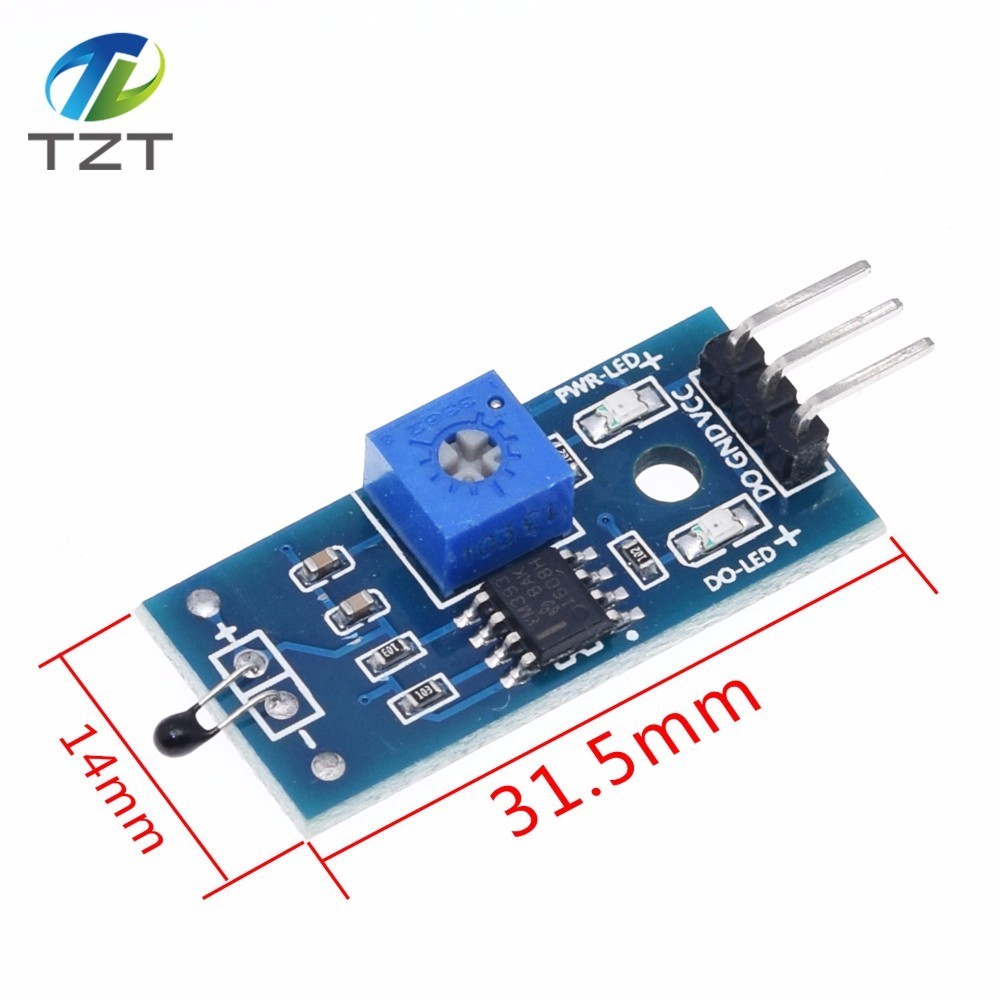

7 , a small PCB board size : 3.2cm x 1.4cm

8 , using a wide voltage LM393 comparator

Module for use

1 , the thermal resistance of the module is very sensitive to the ambient temperature , typically for detecting the temperature of the surrounding environment ;

2 , through the potentiometer adjustment, you can change the temperature detection threshold ( ie, control temperature ) , such as the need to control the ambient temperature is 50 degrees , the module in the corresponding ambient temperature to its green light , DO high power output when flat , set the temperature below this value, the output is high , the green light does not shine ;

3, DO output can be directly connected to the microcontroller through the microcontroller to detect high and low , thereby detecting temperature changes in the environment ;

4, DO output of the relay module can directly drive the shop , which can be composed of a thermostat to control the temperature of work -related equipment can also be connected to the cooling fan , etc. ;

5, the temperature detection range of the modules 20 to 80 ° C ;

6 , the module can be replaced with a line of temperature sensors used to control the water temperature , water and the like.
