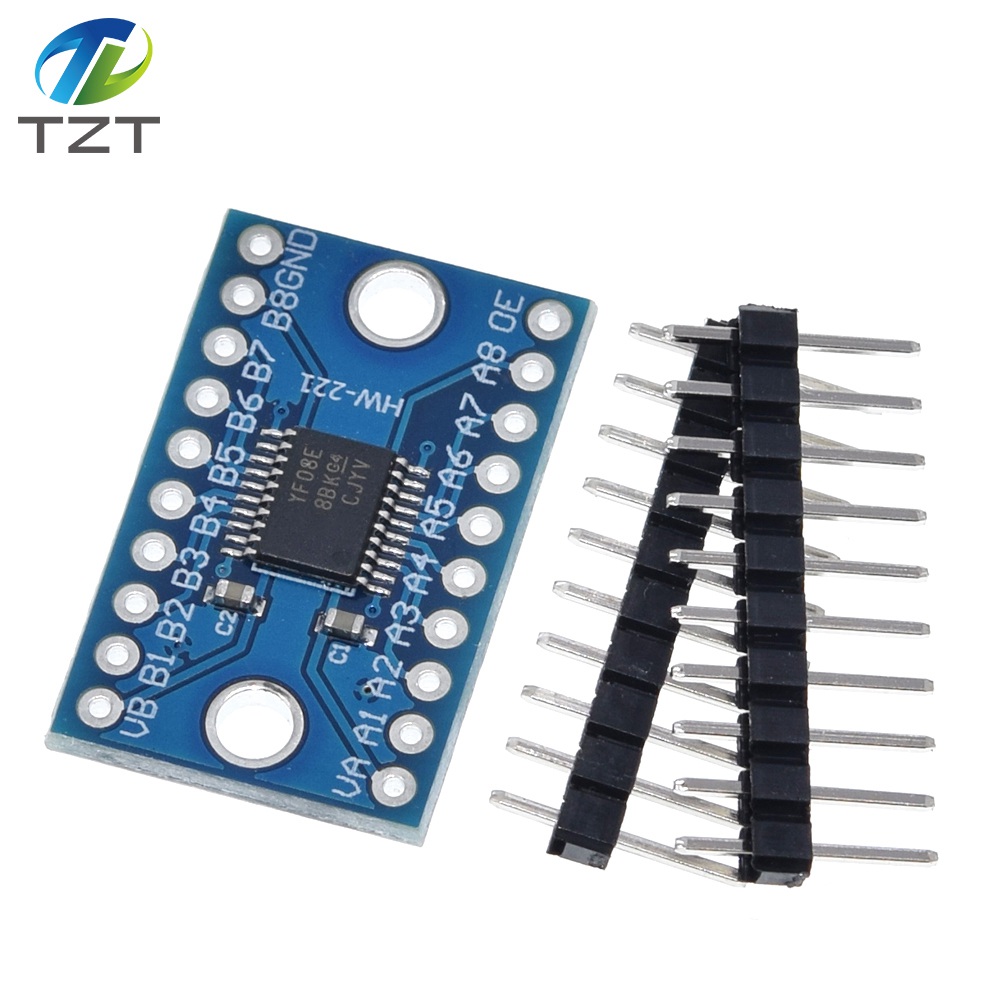

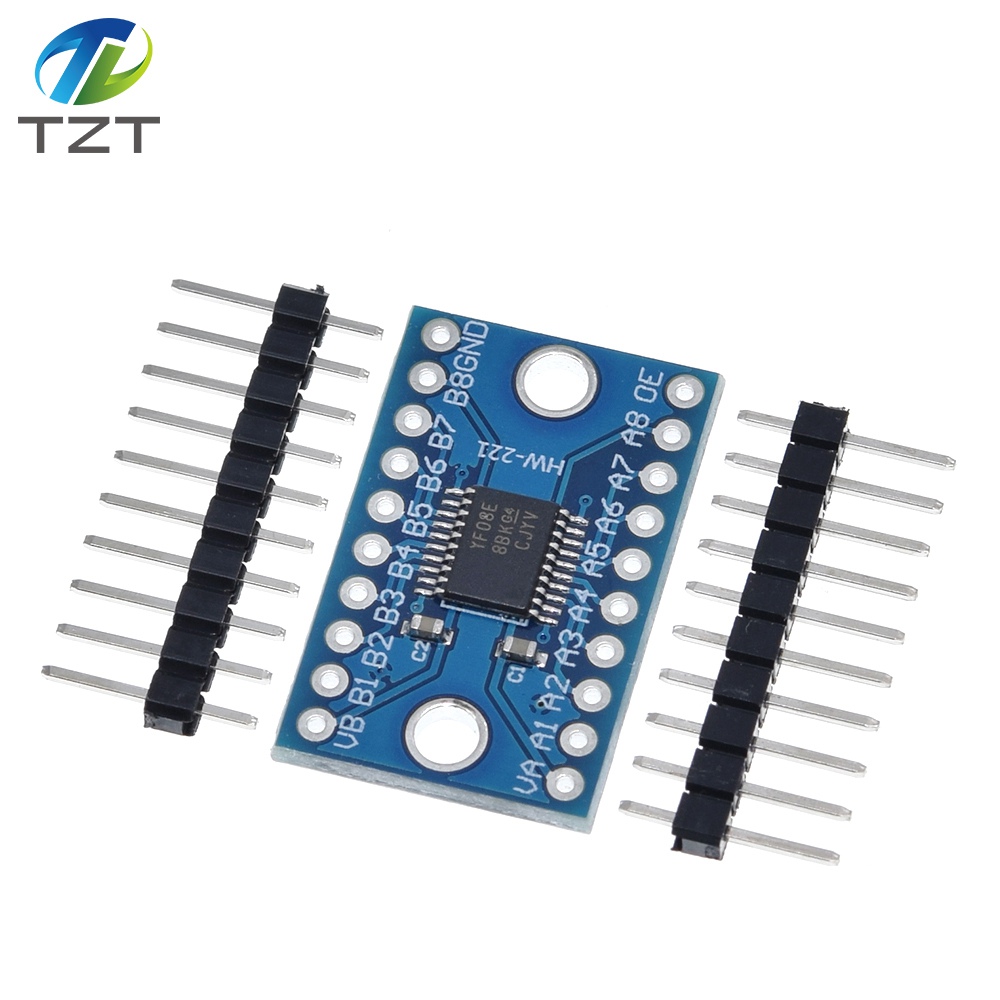

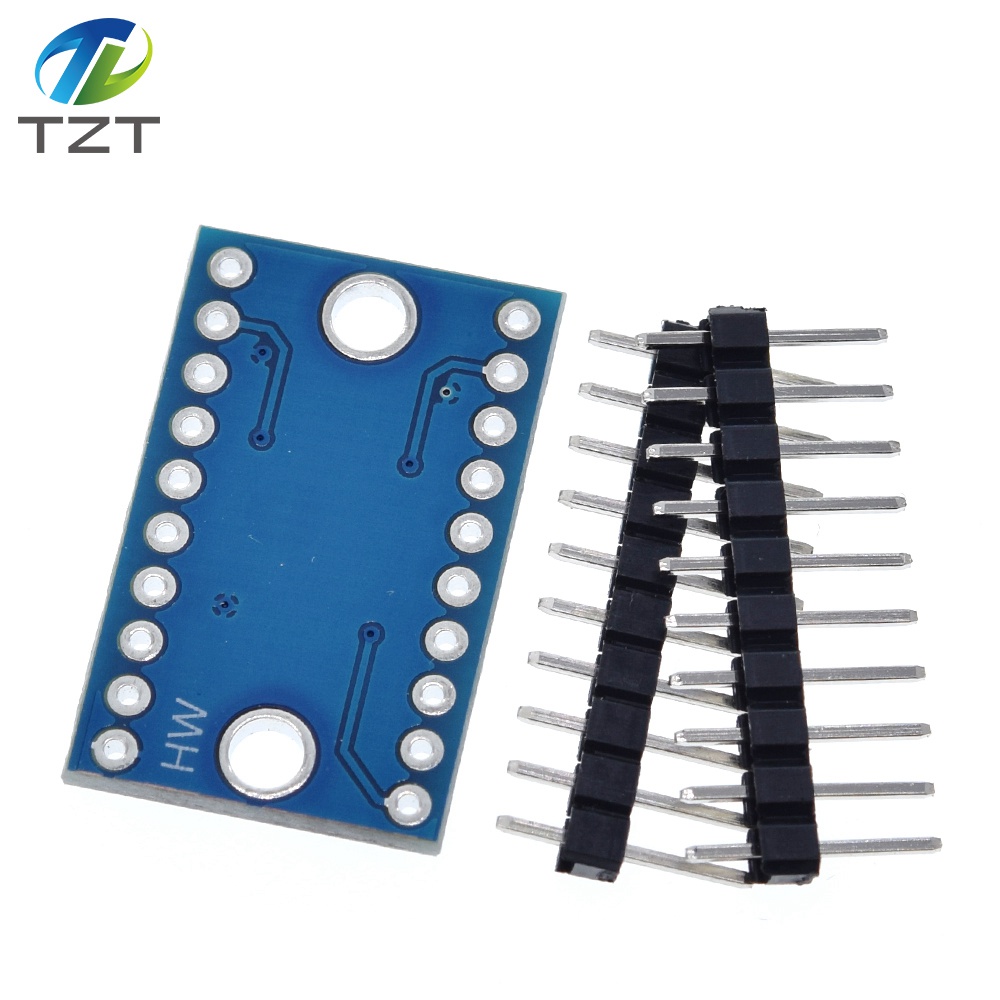

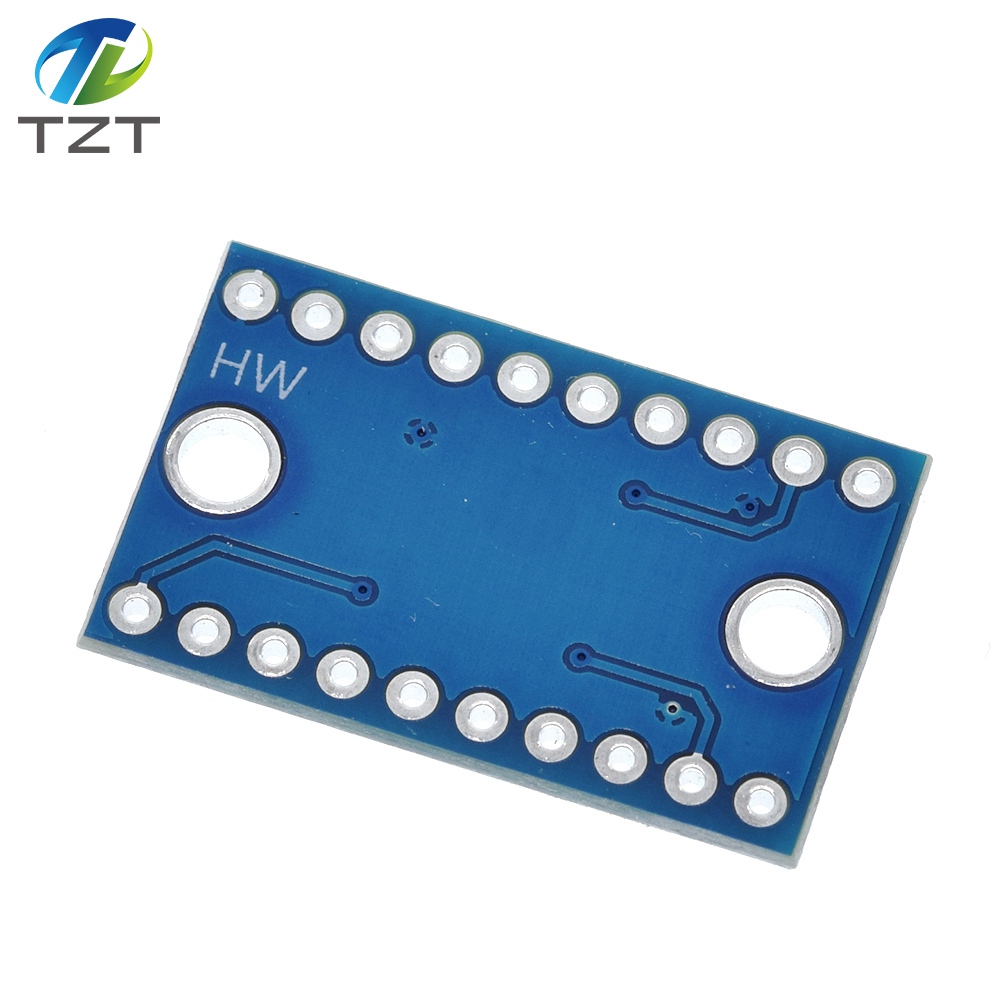

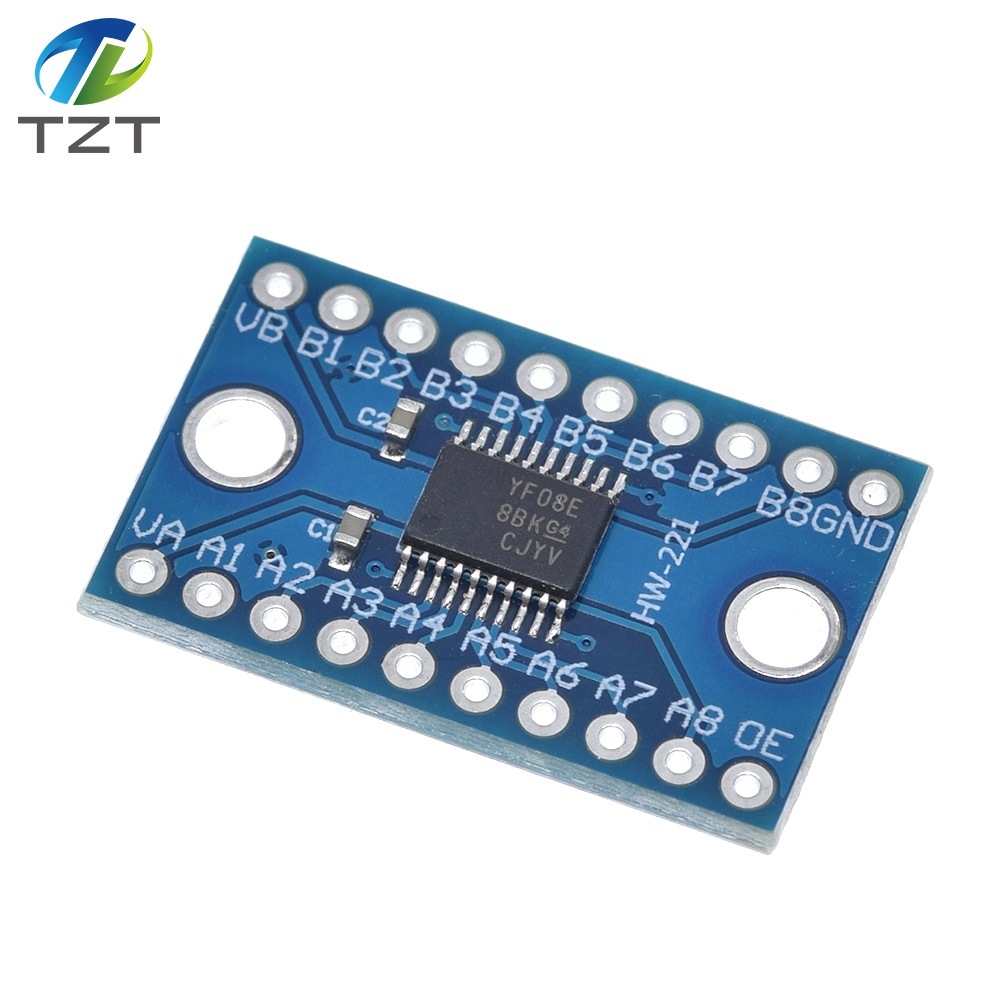

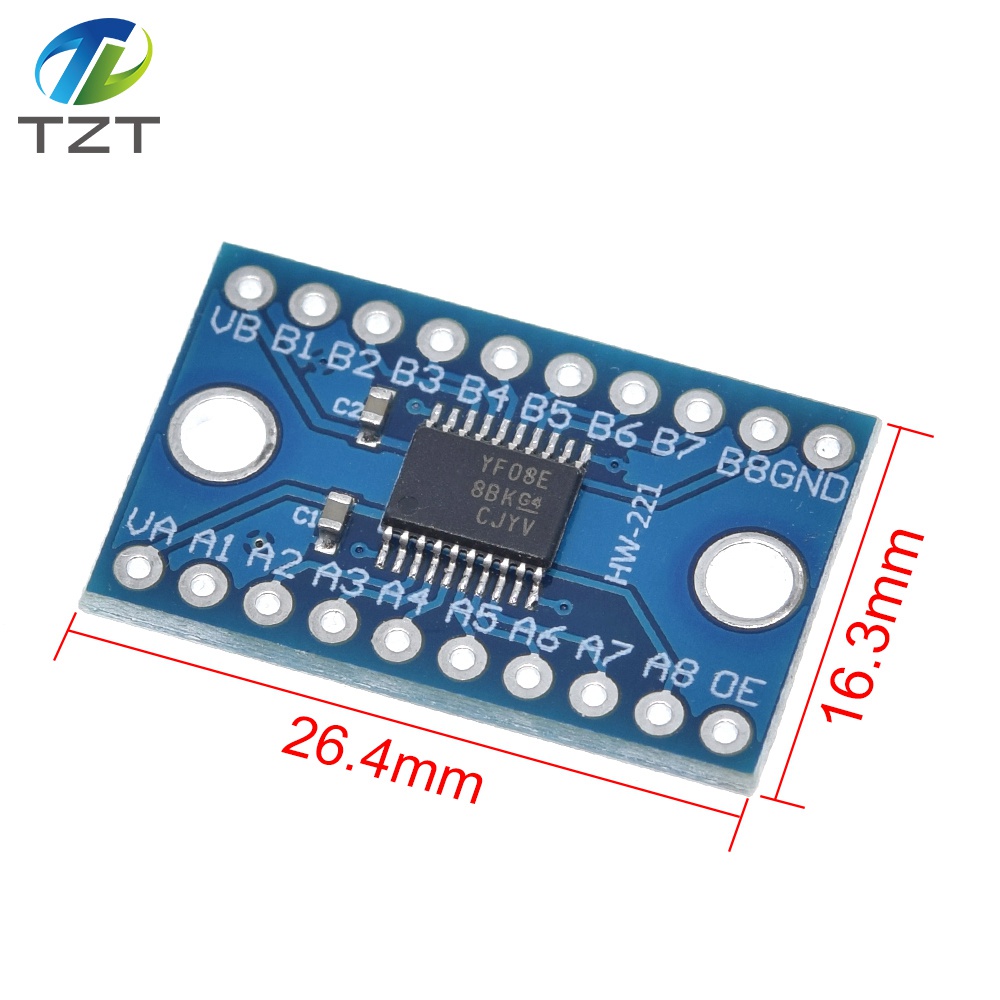

TZT 1/5PCS 8 Channel Duel Hole Logic Level Converter TXS0108 TXS0108E Bi-directional Voltage Module for Arduino With Pins

Score：

Brand：TZT

Weight：3.20~16.00g

Stock：19894

Price：$0.25~1.07

Style：

Quantity:: - +

TXB0108 bi-directional level converter comes in! This chip perform bidirectional level shifting from pretty much any voltage to any voltage and willauto-detect the direction. Only thing that doesn't work well with this chip is i2c (because it uses strong pullups which confuse auto-direction sensor). If you need to use pullups, you can but they should be at least 50K ohm - the ones internal to AVRs/FOR Arduino are about 100K ohm so those are OK! Its a little more luxurious than a 74LVX245 but if you just don't want to worry about directional pins this is a life saver!

Since this chip is a special bi-directional level shifter it does not have strong output pins that can drive LEDs or long cables, it's meant to sit on a breadboard between two logic chips! If you do not need instant bi-directional support, we suggest the 74LVX245 as below which has strong output drive.

Features:

1.1.2V 1.8V 2.2V 2.5V 3.3V 5V Logic Level Bi-directional Converter Module
