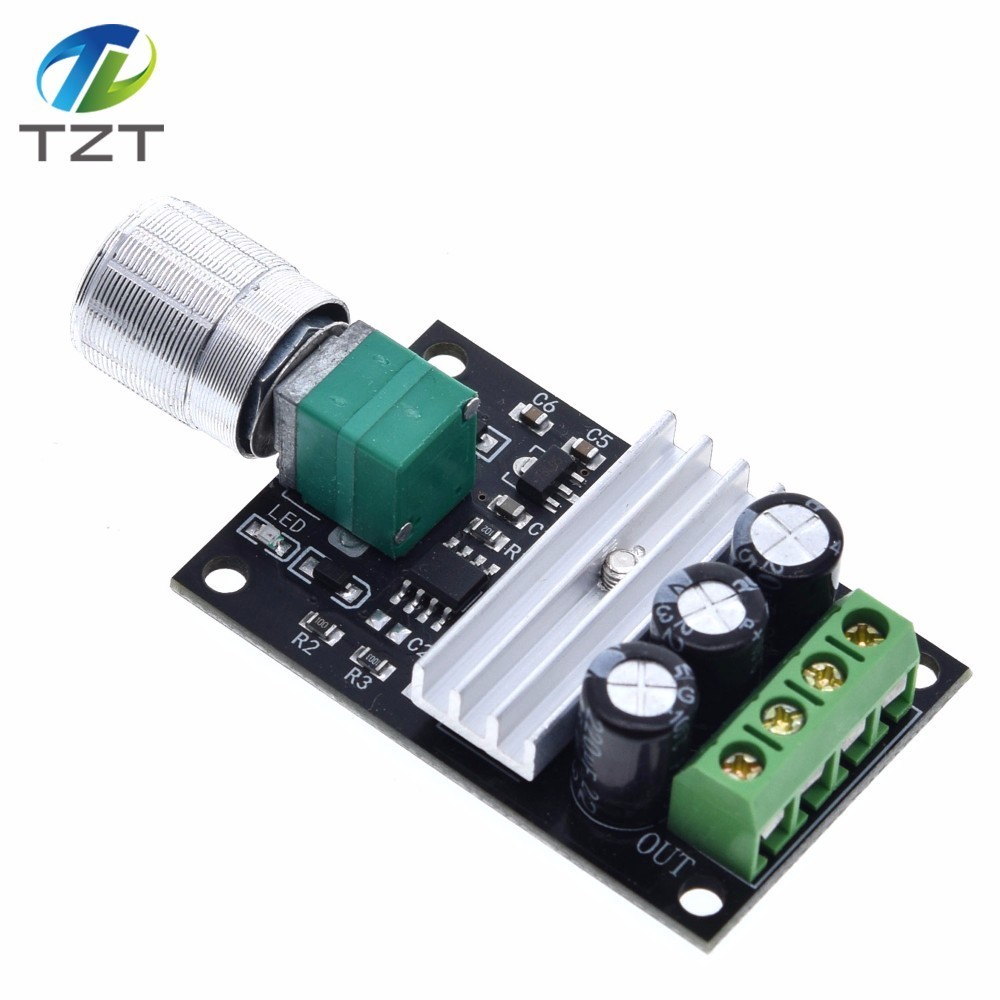

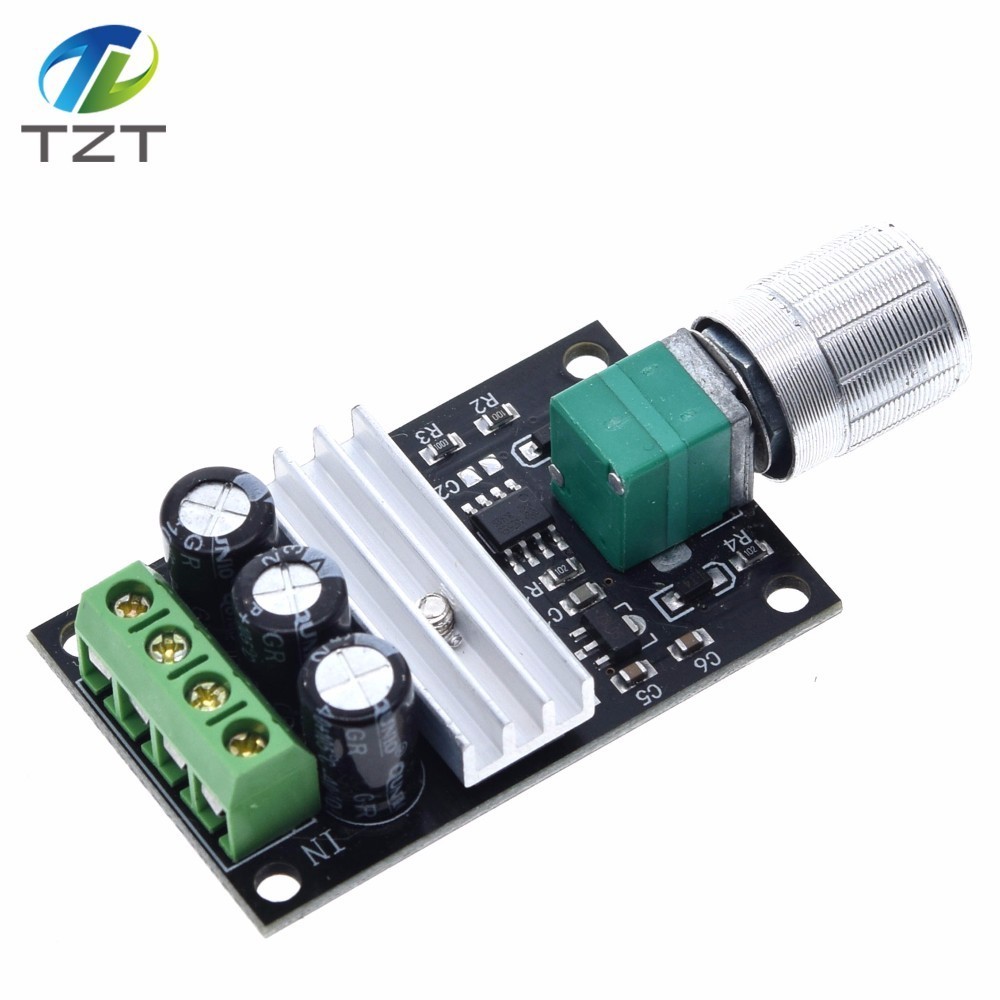

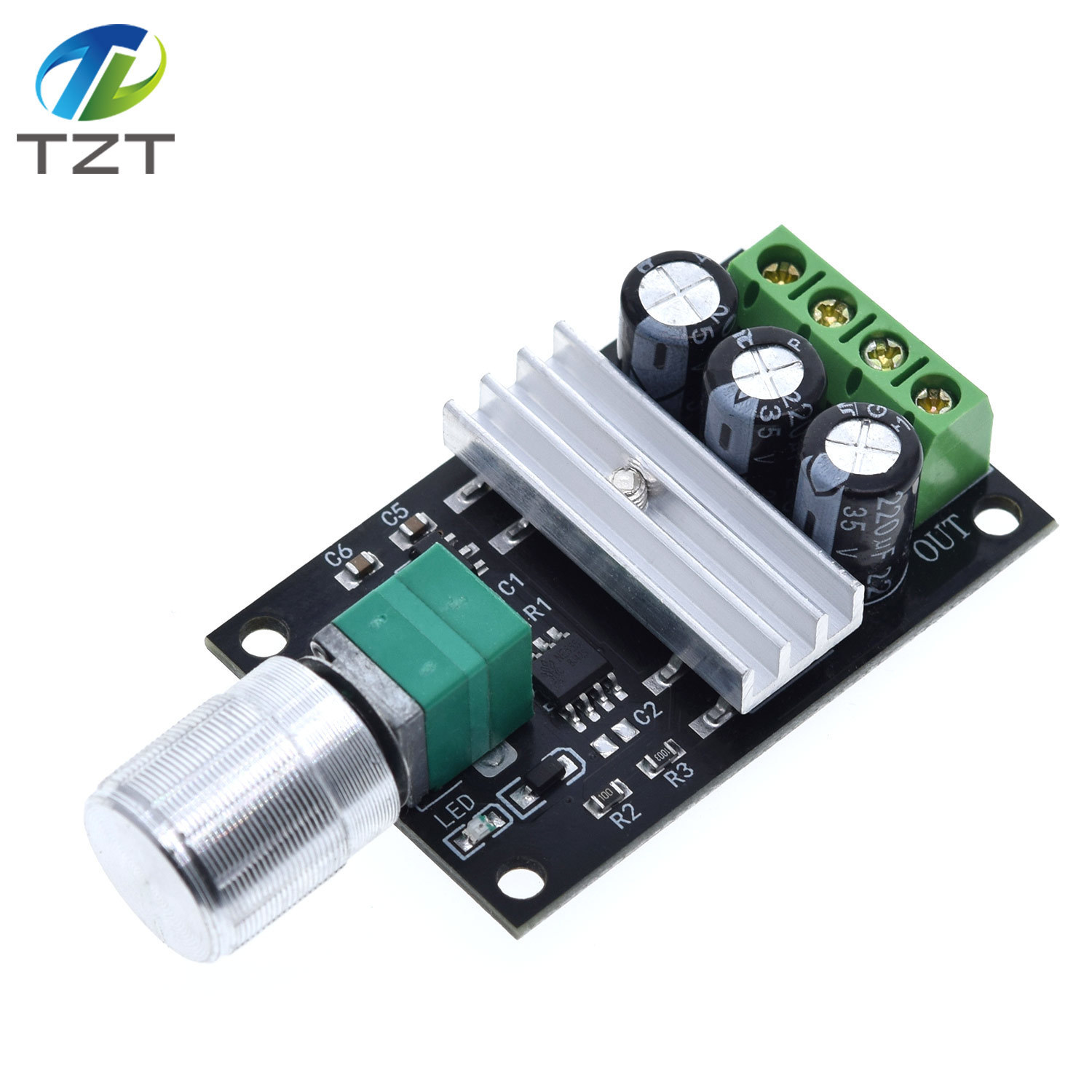

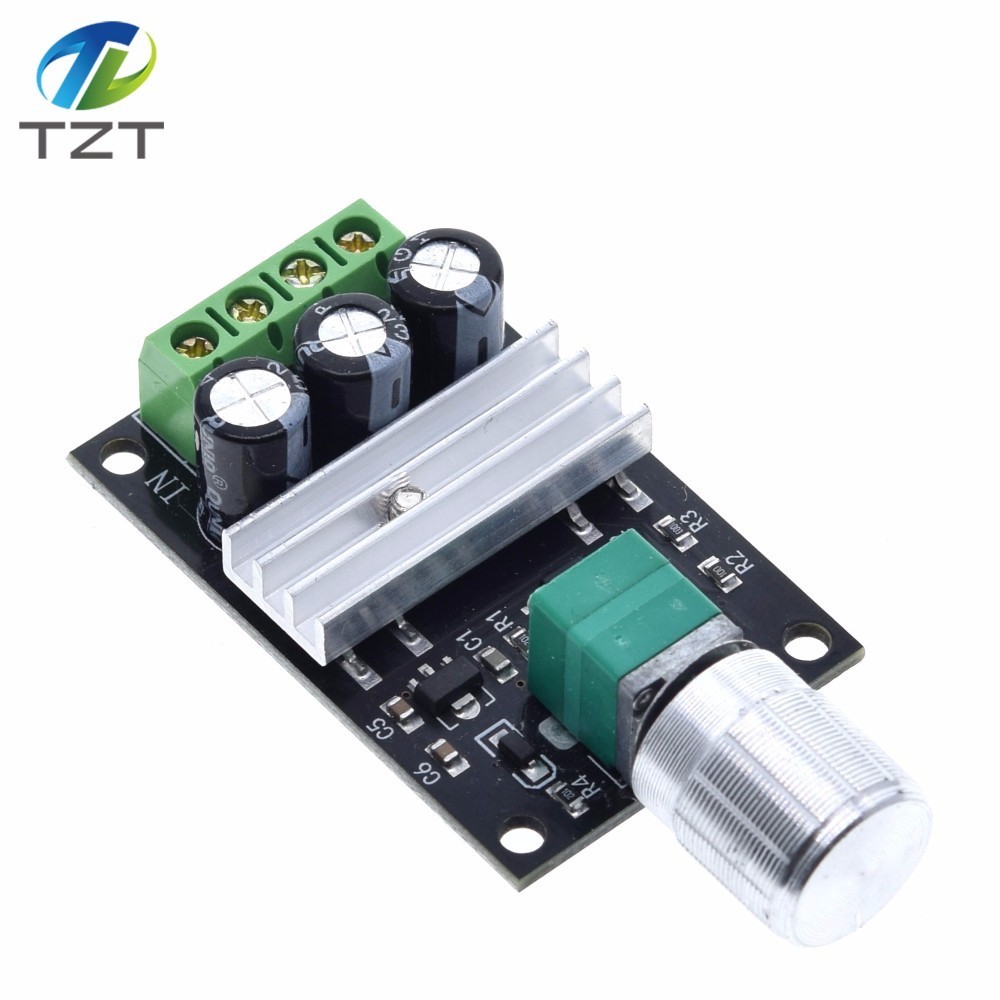

TZT DC 6V 12V 24V 28VDC 3A 80W PWM Motor Speed Controller Regulator Adjustable 3A Motor Speed Controller Regulator

Feature:
100% brand new and high quality.
This DC Motor Speed Controller allows controlling the direction of  DC motor, using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of3A to your DC motor or other DC load.

Specification:
Input supply voltage: 6V-28VDC
The maximum output power: 80W
The maximum continuous output current : 3A
Duty Cycle adjustable: 0%-100%

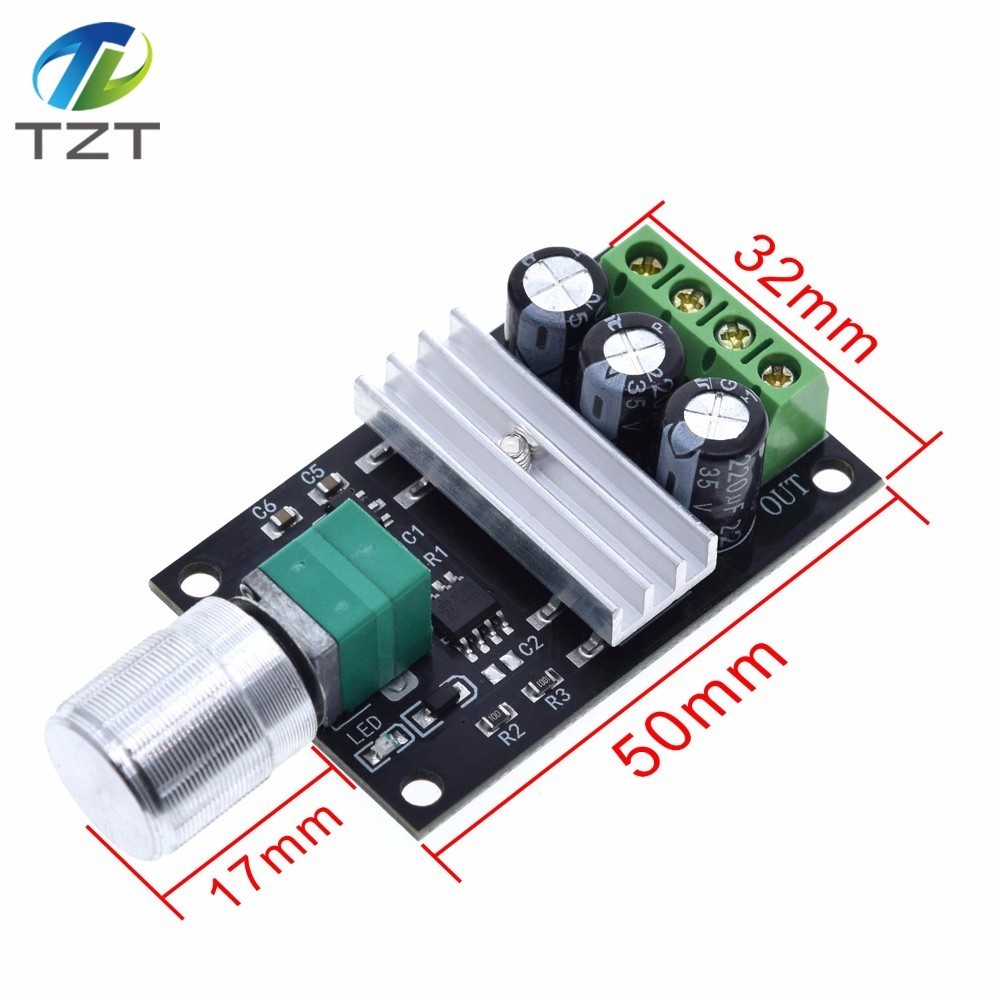

Product size: approx. 70*32*17mm/2.75*1.25*0.66''
Net weight: approx. 23g
Quantity: 1pc

Operating instruction:

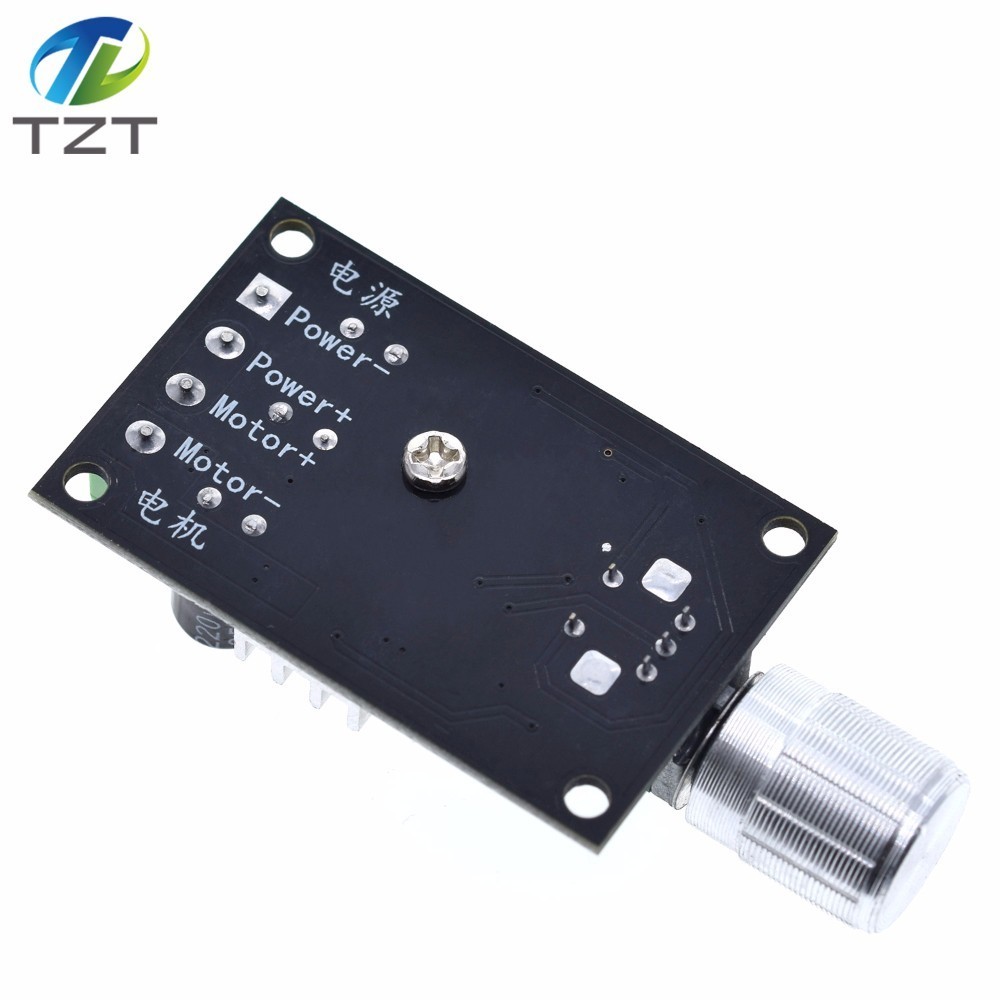

1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.

Note:
Please allow 1-3mm error due to manual measurement and there will be different color as different display, please understand. Thanks.

1 x PWM Motor Speed Control Switch Controller
