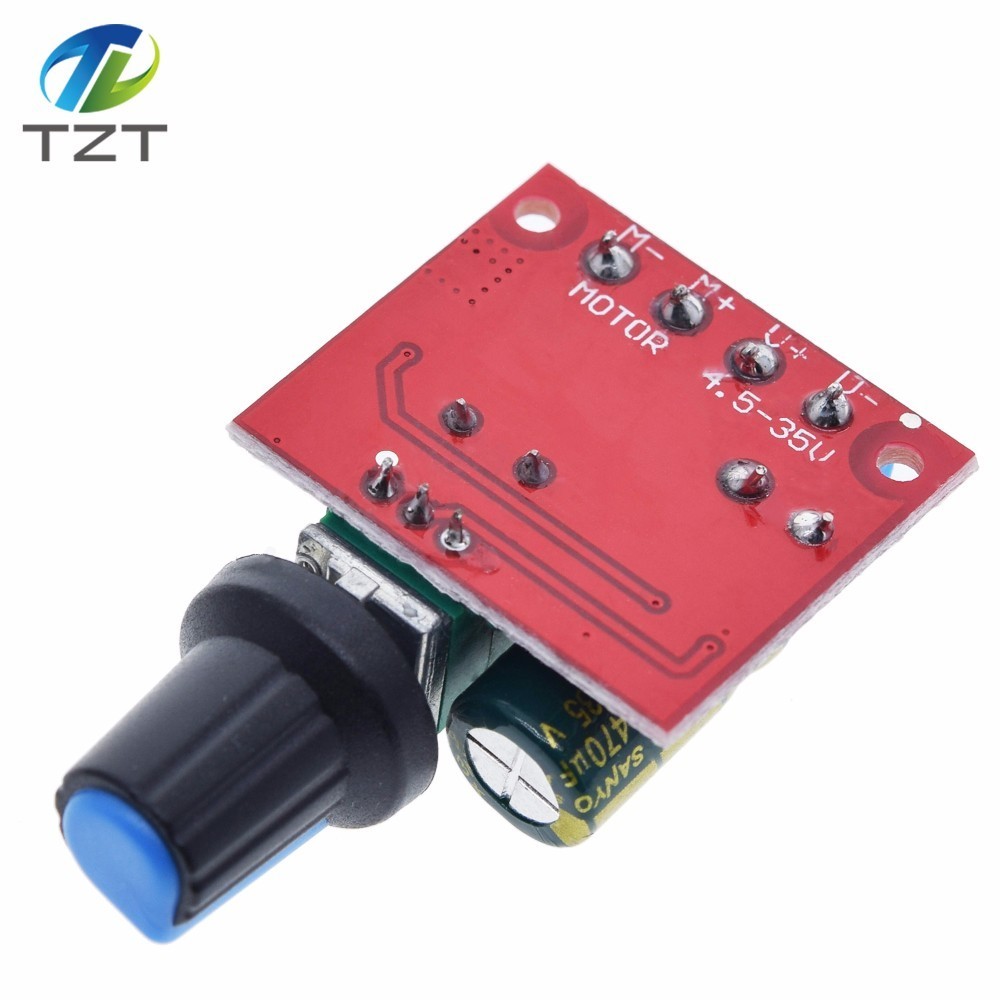

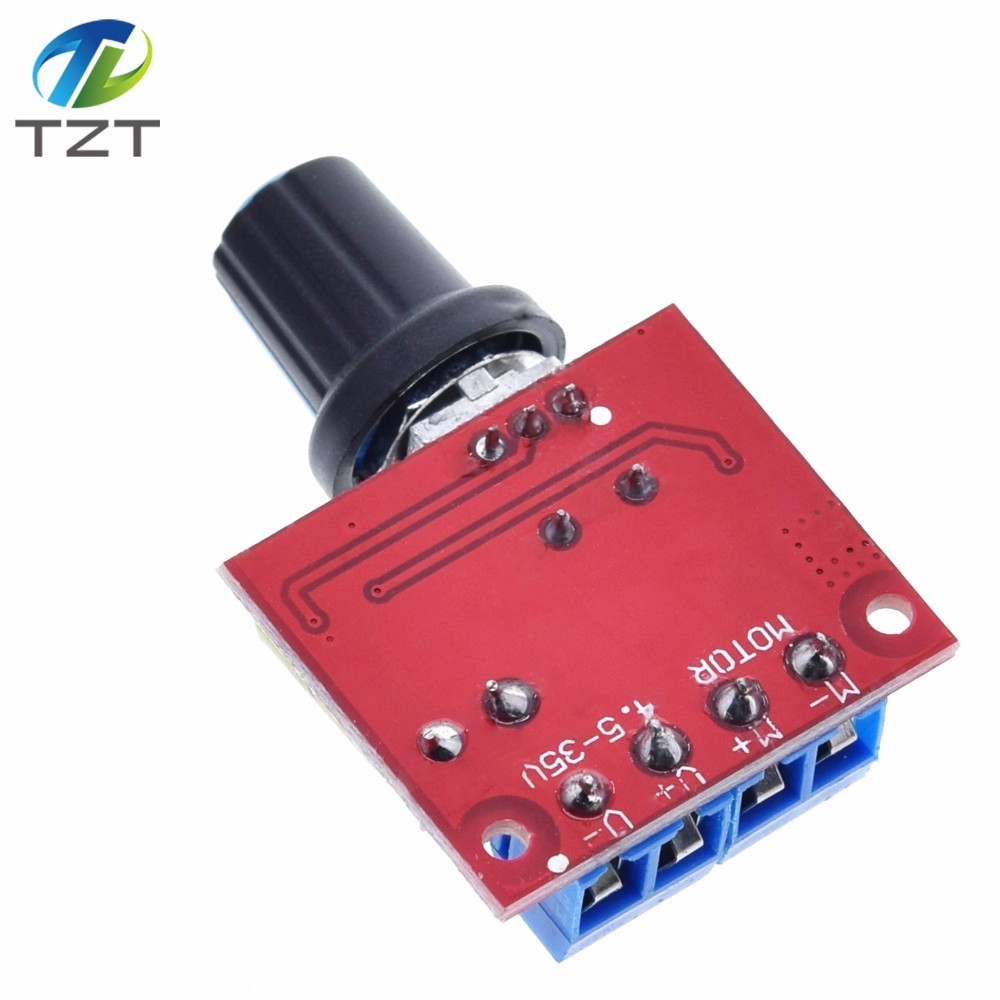

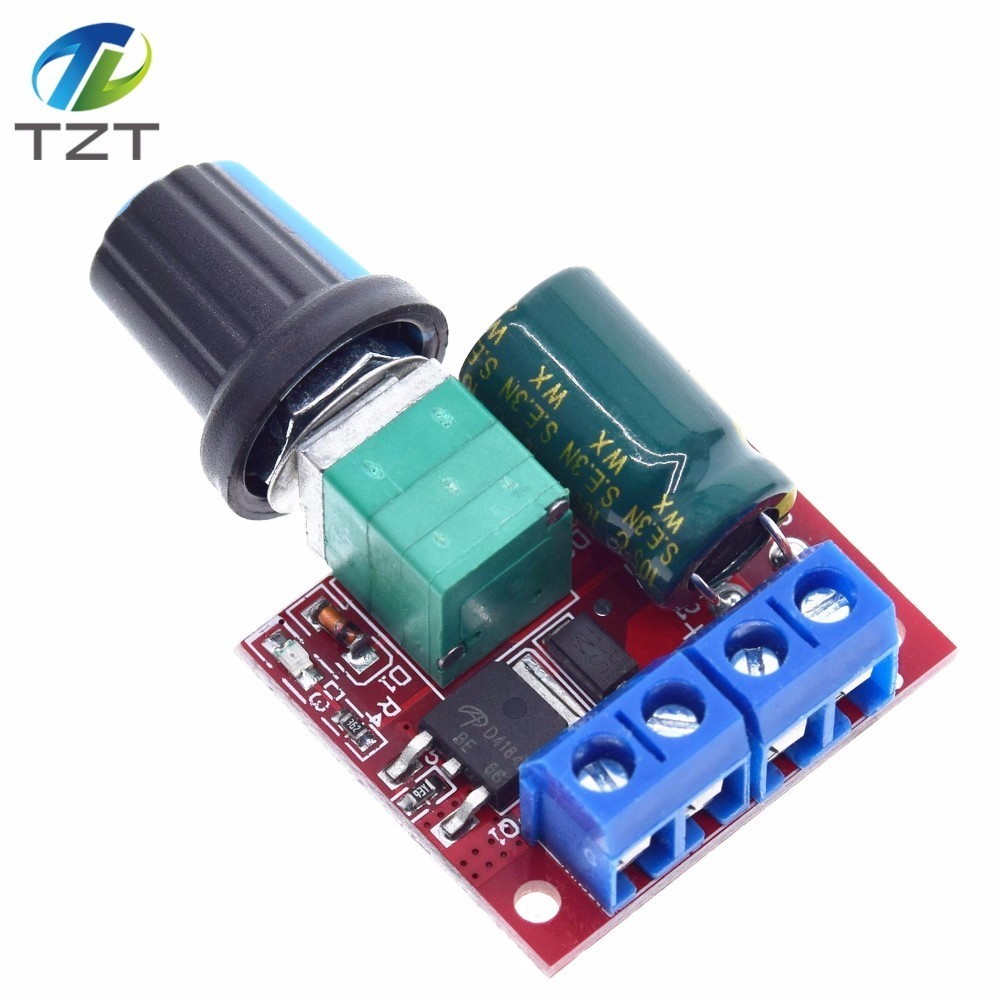

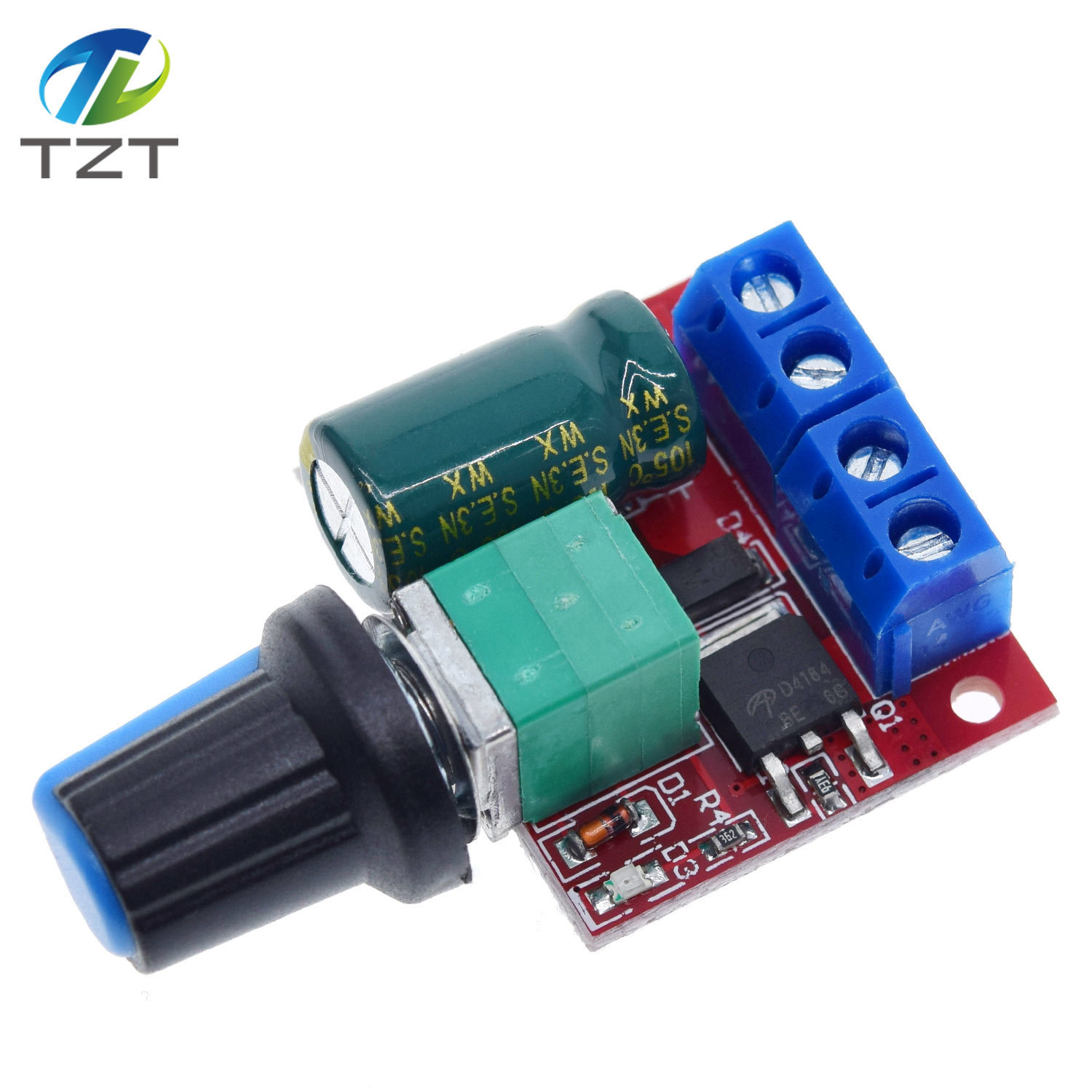

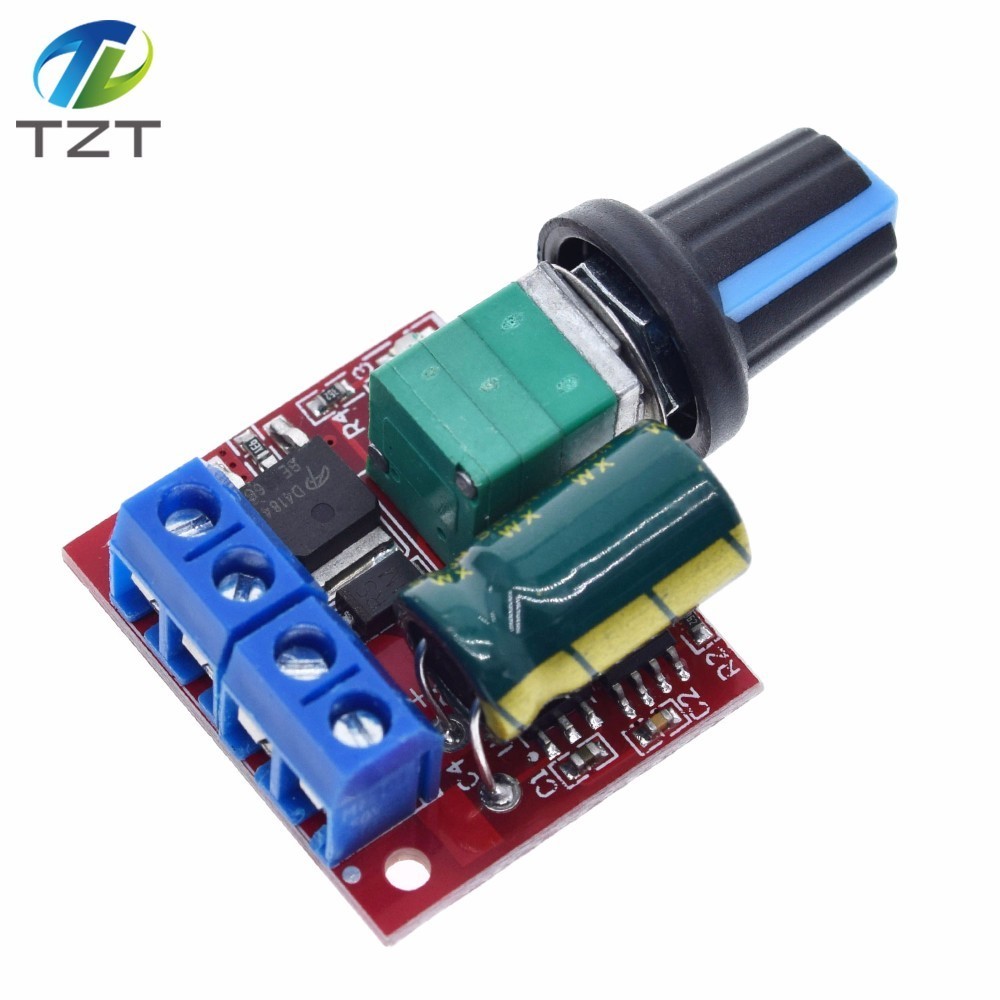

TZT DC 4.5V-35V 5A 20khz LED PWM DC Motor Controller Speed Control Dimming Max 90W Newest

Operating voltage: DC4.5V-35V

Output current: 0-5A

Output power: 90W (max)

Quiescent current: 7uA (standby)

PWM duty cycle: 1% -100%

PWM frequency: 20khz

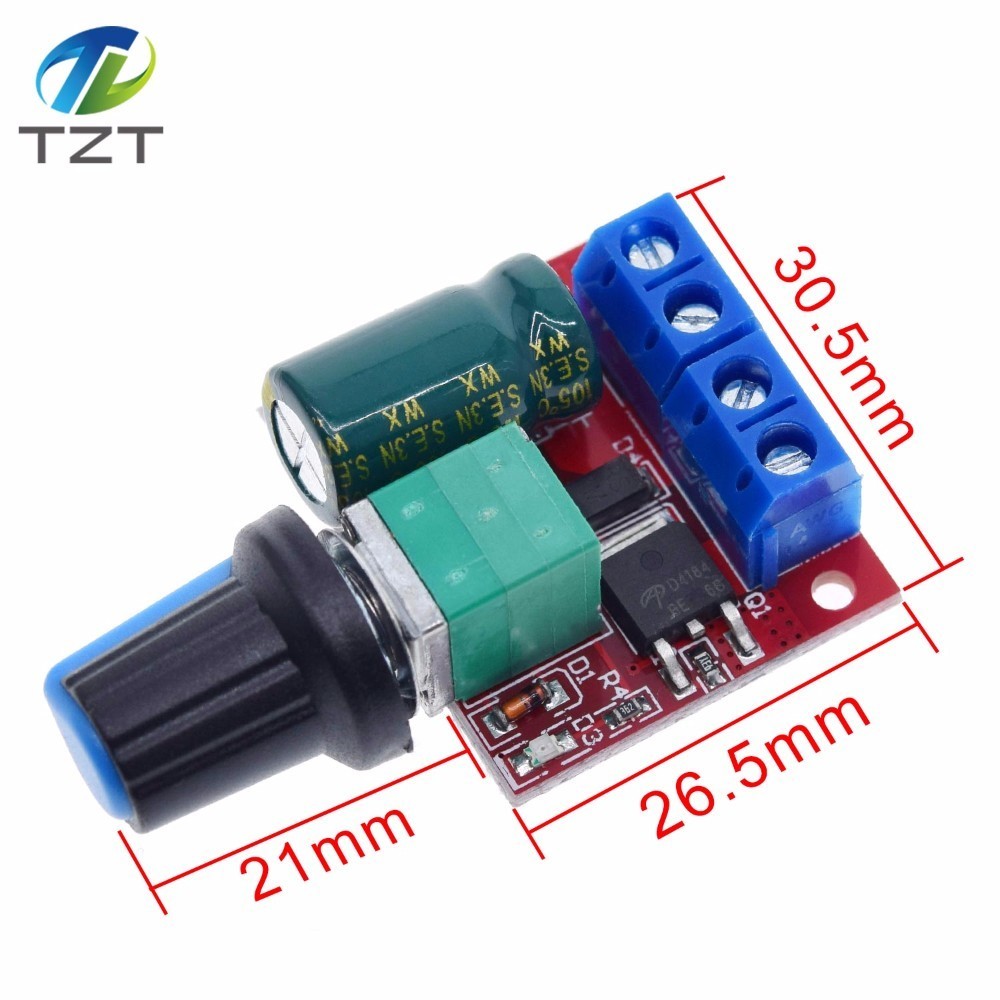

Size: 30mm x 26mm x 14mm (without handle)

Precautions:

DC motor governor input for the DC, can not be directly connected to the AC (for example: 220V AC 220V), otherwise it will burn!

The positive and negative terminals of the DC power supply are not reversed, otherwise the governor may be damaged.

The motor can be either positive or negative. When the direction of operation and expectations do not match, you can adjust the direction of the line order.

Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
