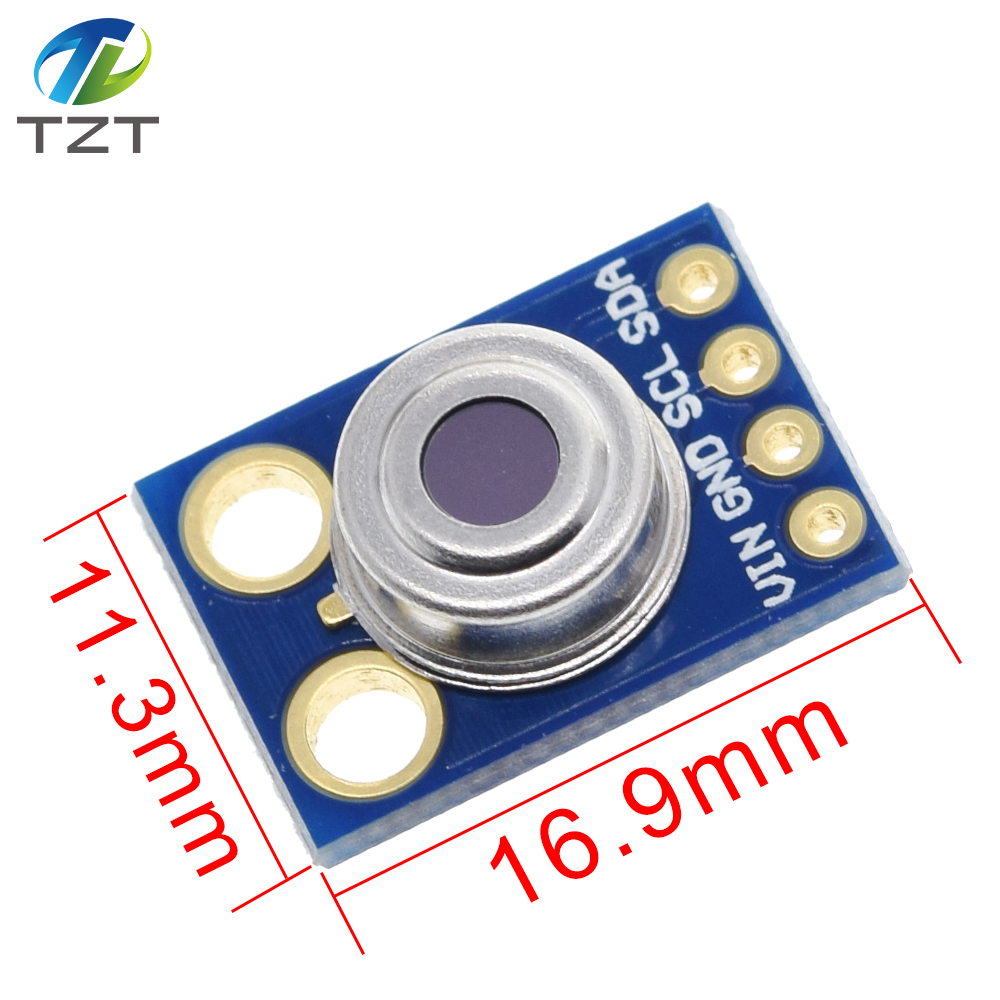

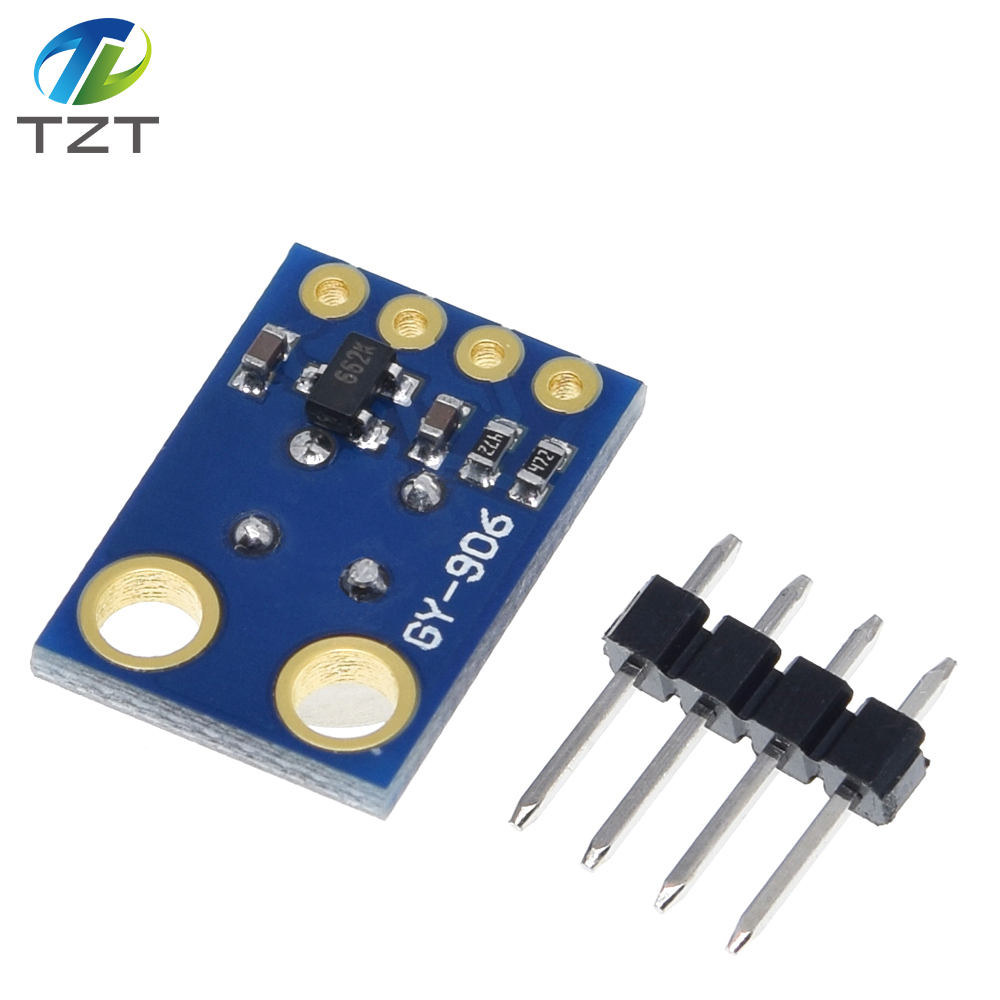

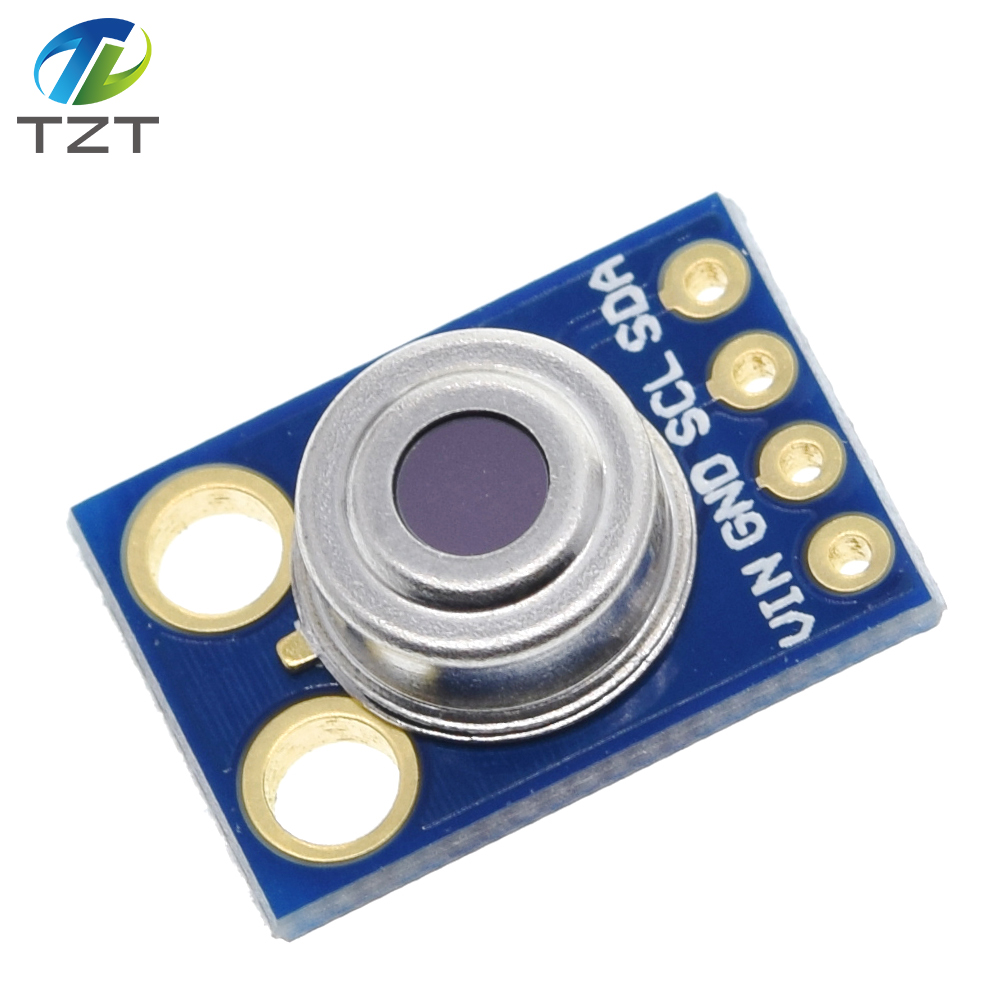

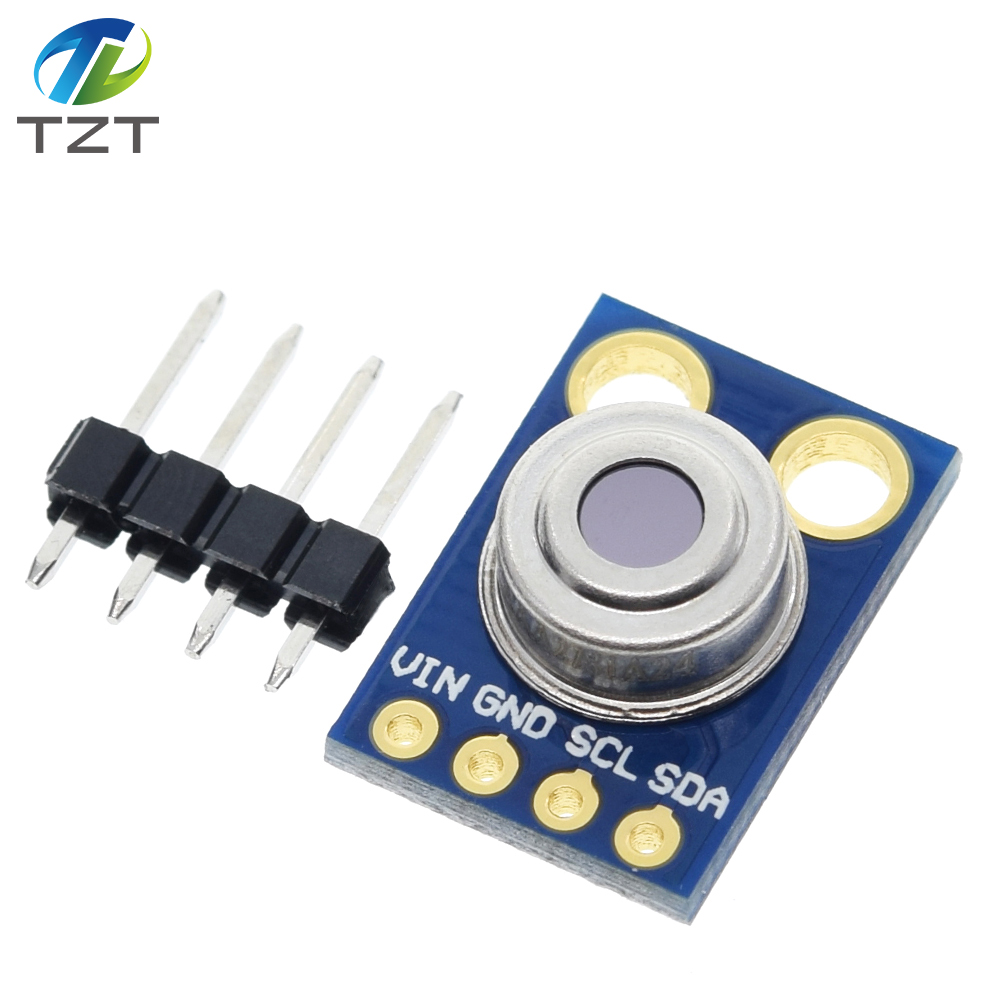

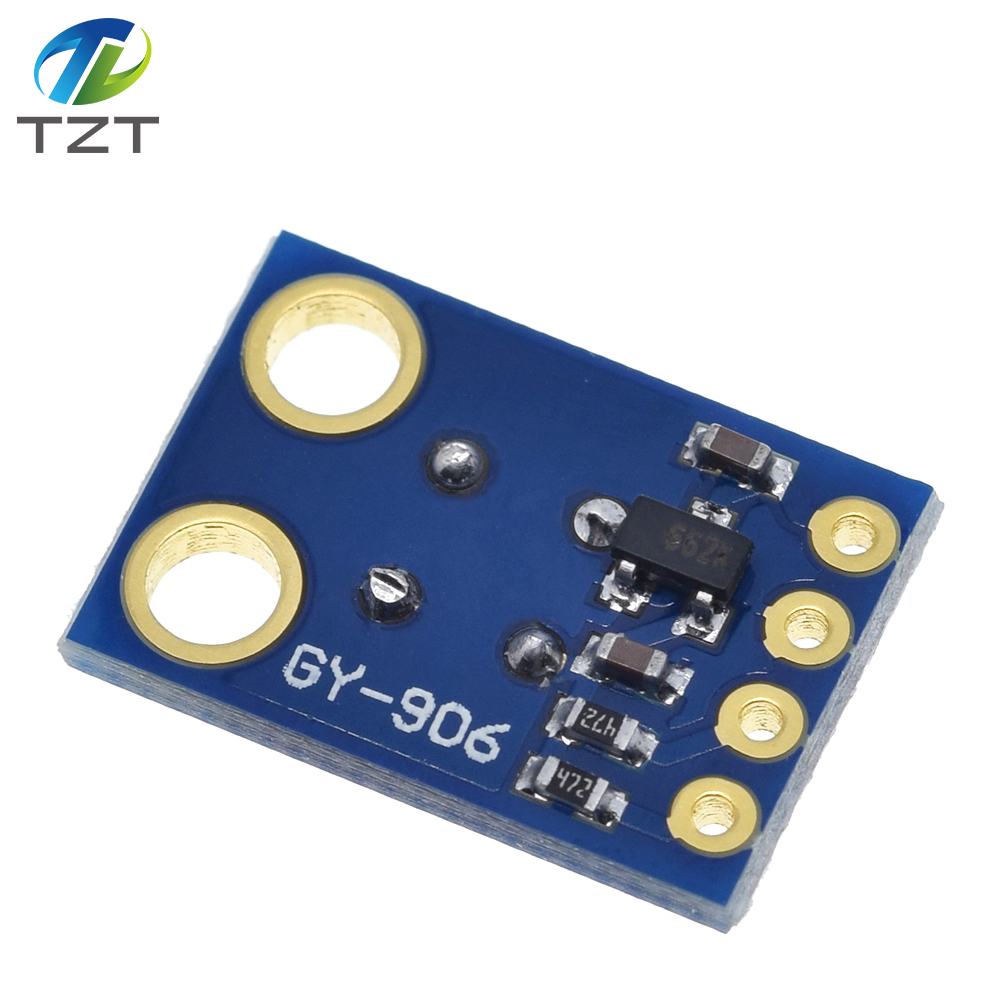

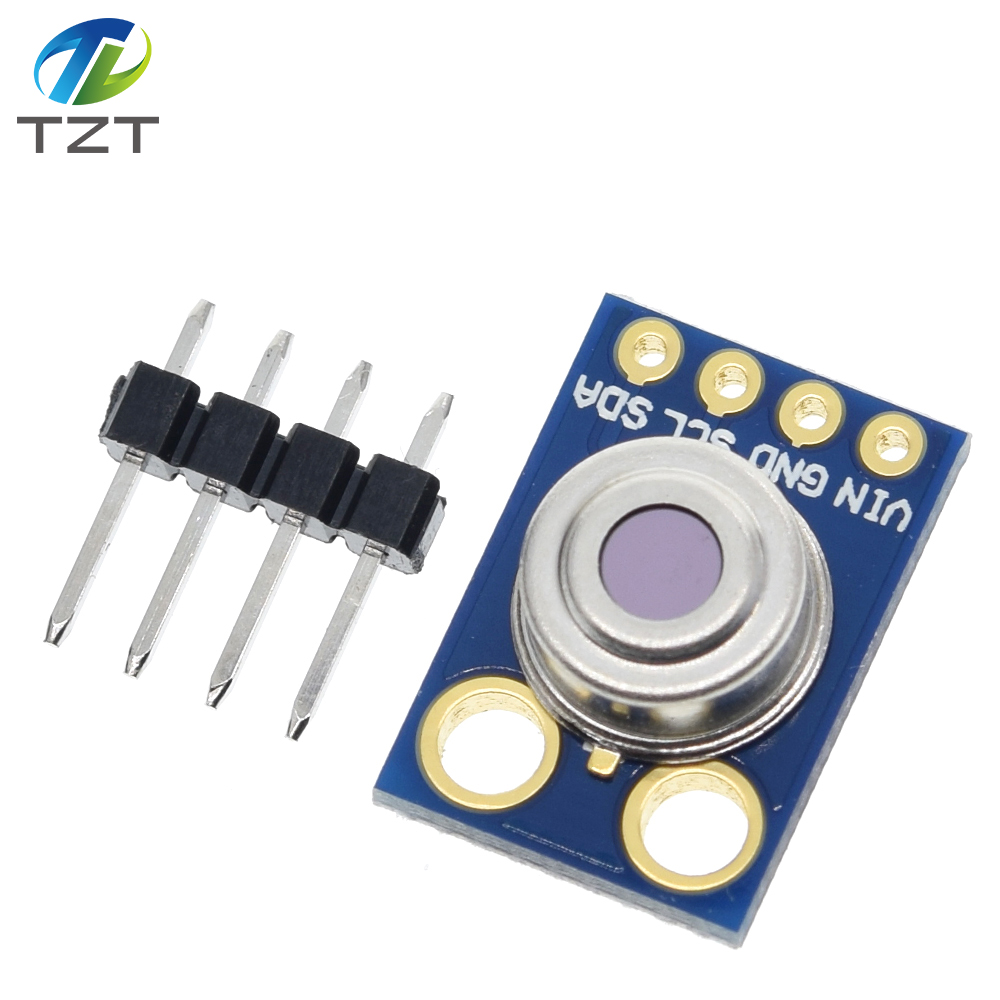

TZT GY-906 MLX90614ESF New MLX90614 Contactless Temperature Sensor Module For Arduino Compatible

Score：

Brand：TZT

Weight：0.01g

Stock：98649

Price：$3.64

Style：

Quantity:: - +

Using a Chip: MLX90614

Power supply: 3-5v (internal low dropout regulator)

Communication: standard IIC communication protocol

Up for sale is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered. Please indicate if you would like one or the other soldered. There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.

From the manufacturer:

Features and Benefits:

Small size, low cost

Mounted on a breakout board with two types of pins

10k Pull up resistors for the I2C interface with optional solder jumpers

Easy to integrate

Factory calibrated in wide temperature range:

-40 ... + 125 ° C for sensor temperature and

-70 ... + 380 ° C for object temperature.

High accuracy of 0.5 ° C over wide temperaturerange (0 ... + 50 ° C for both Ta and To) High (medical) accuracy calibration

Measurement resolution of 0.02 ° C

Single and dual zone versions
