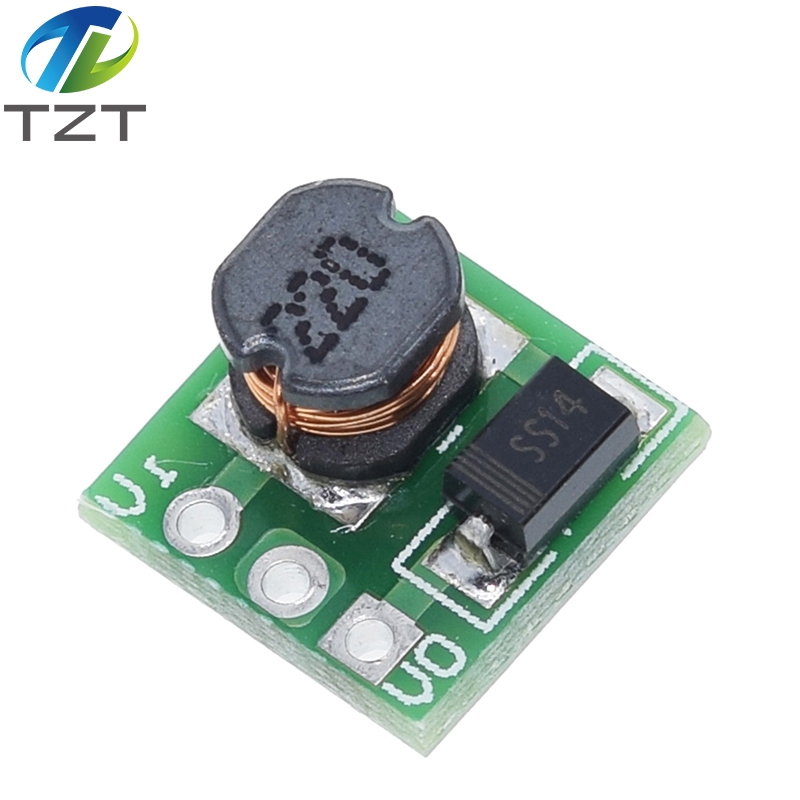

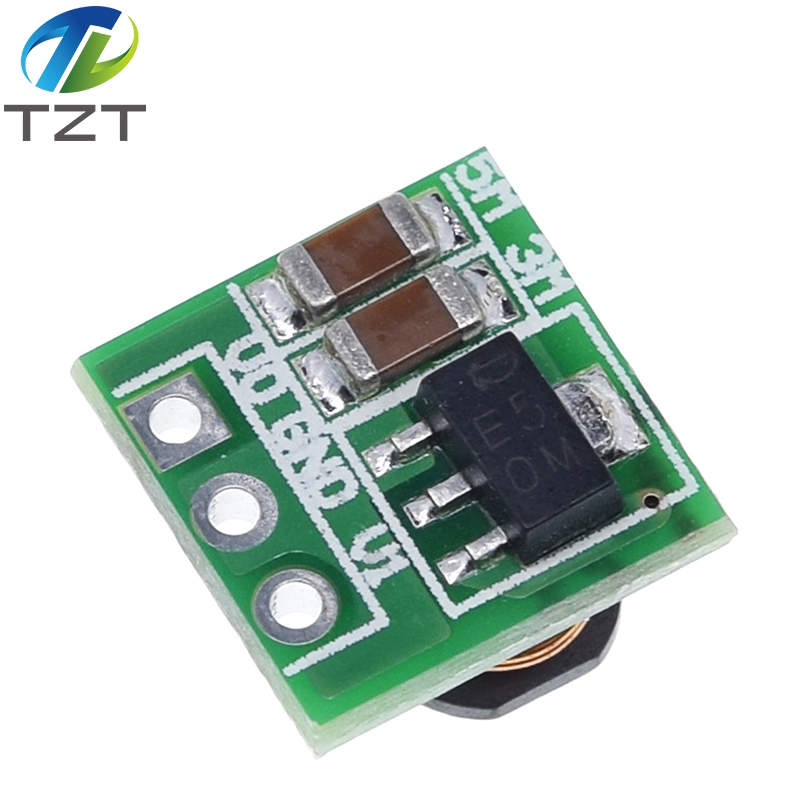

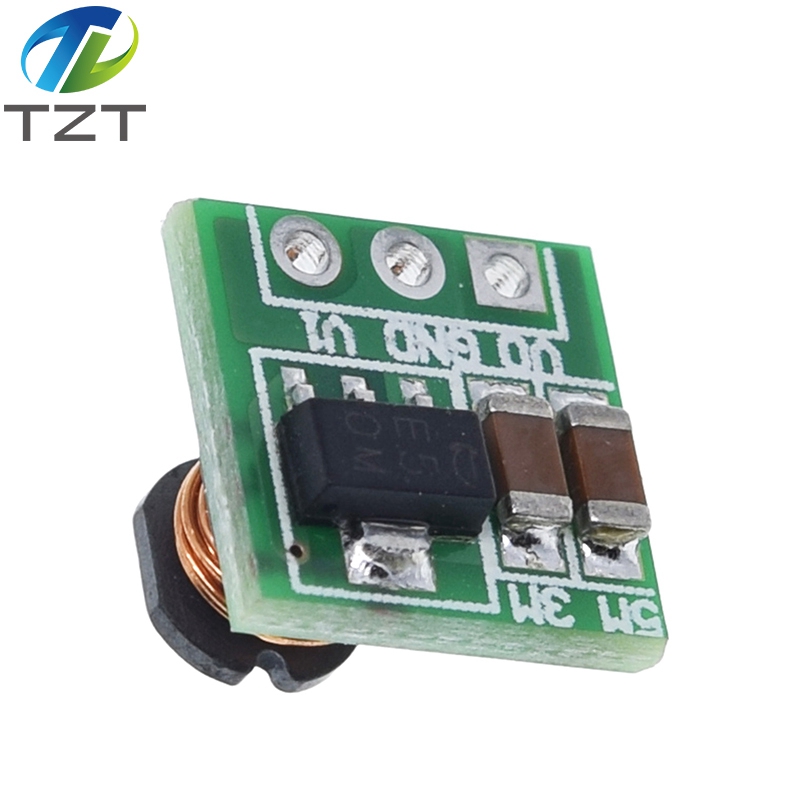

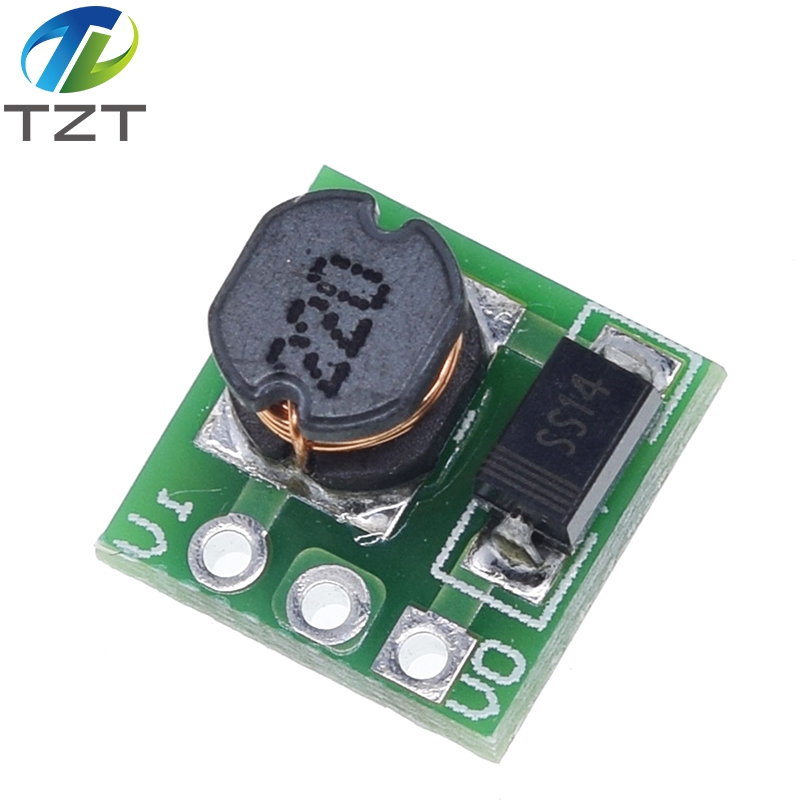

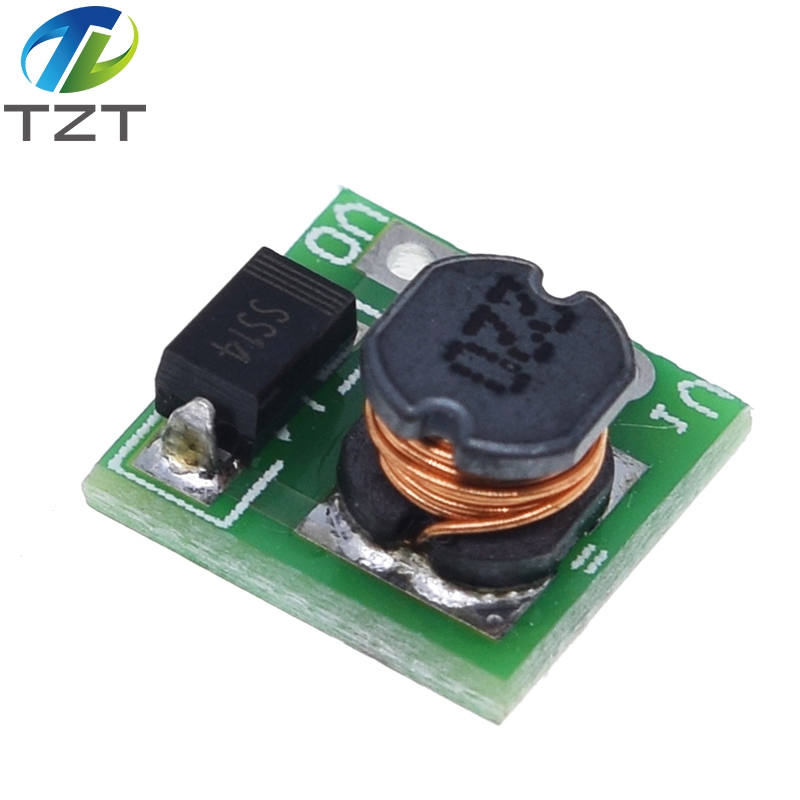

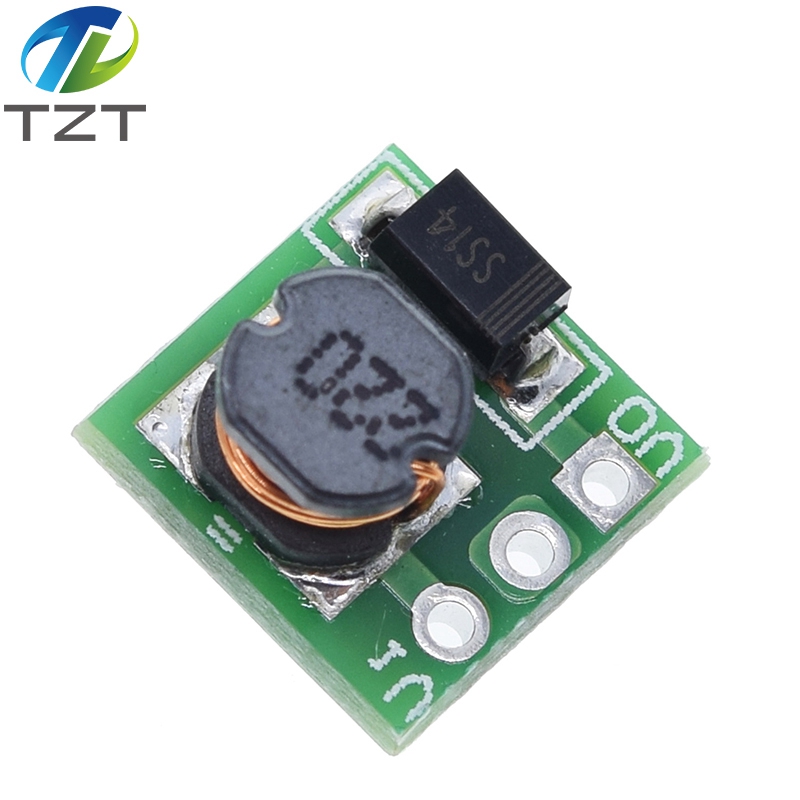

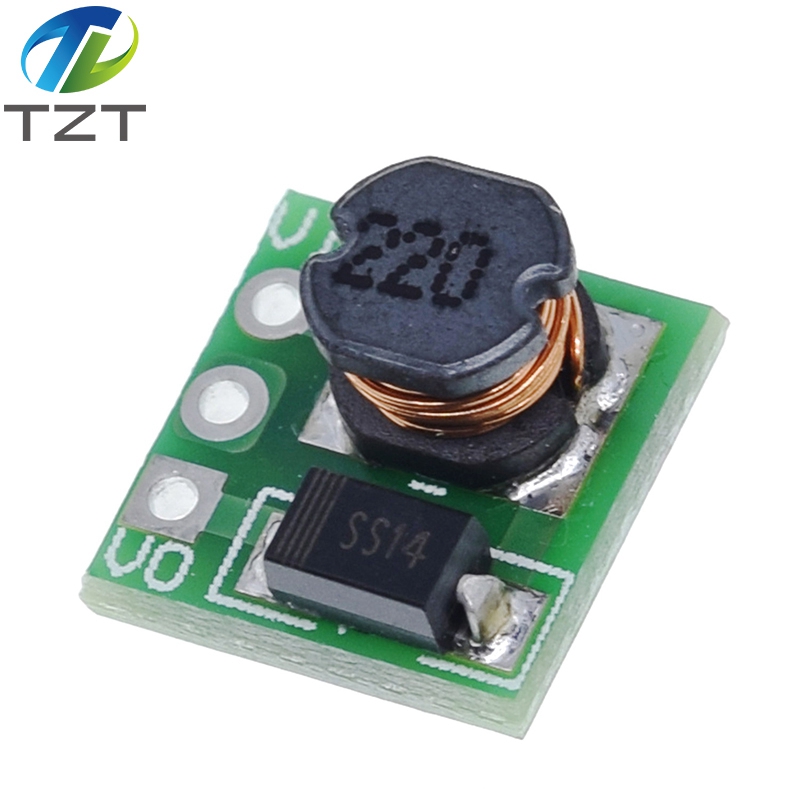

TZT 0.9-5V To 5V DC-DC Step-Up Power Module Voltage Boost Converter Board 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V To 5V
Score：
Brand：TZT
Weight：0.01g
Stock：98744
Price：$0.14
- Style：
-
-
- Quantity:
Download
ReviewsDescription:
Input voltage 0.9~ 5V,output 5V
Maximum output current: 480 MA,
Start
Voltage 0.8V, Output Current 7MA
INPUT
1-1.5V, OUTPUT 5V 40-100MA;
INPUT
1.5-2V, OUTPUT 5V 100-150MA;
INPUT
2-3V, OUTPUT 5V 150-380MA;
INPUT
above 3V, OUTPUT 5V 380-480MA;
DC-DC
Boost module working frequency 150KHZ. efficiency
<85%( Recommended
high efficiency version ) .
2.54mm
pin pitch.

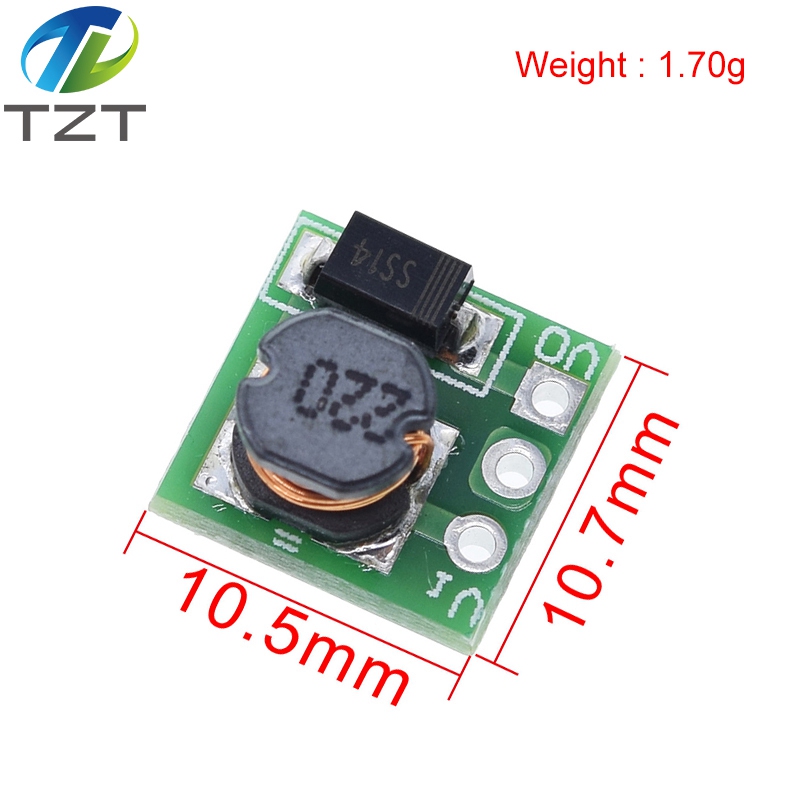

Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small).
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small).
Weight
: about 1g( Very
light)
Applications:
Battery
powered equipment
Wireless
Module,NRF24L01 CC1101 CC2500 etc.
Development
Board,FPGA/CPLD UNO MEGA2560 PRO MINI 8051 C8051 AVR STC etc
Camera, Video
camera
VCR
PDA
LED
Lighting
Wireless
communication equipment
MP3/MP4
player
Audio
equipment
Attention
:
This is a DC-DC voltage converter module,Must be noted when using:
1
Input voltage can not be greater than the maximum input range
2 Output power
can not be greater than the maximum load for a long time
3 Input power must
be greater than the output power, because the power consumption of the module
itself
Q
& A:
Q
: Why output voltage is less than the nominal voltage
A
: Input power supply power is too low.Test the input voltage with a multimeter,
a t this time of the input voltage is very low
