TZT Hot sale GY-291 ADXL345 Digital triaxial acceleration of gravity inclination Module IIC / SPI transmission For Arduino

Score：

Brand：TZT

Weight：0.01g

Stock：998324

Price：$0.88

Style：

Quantity:: - +

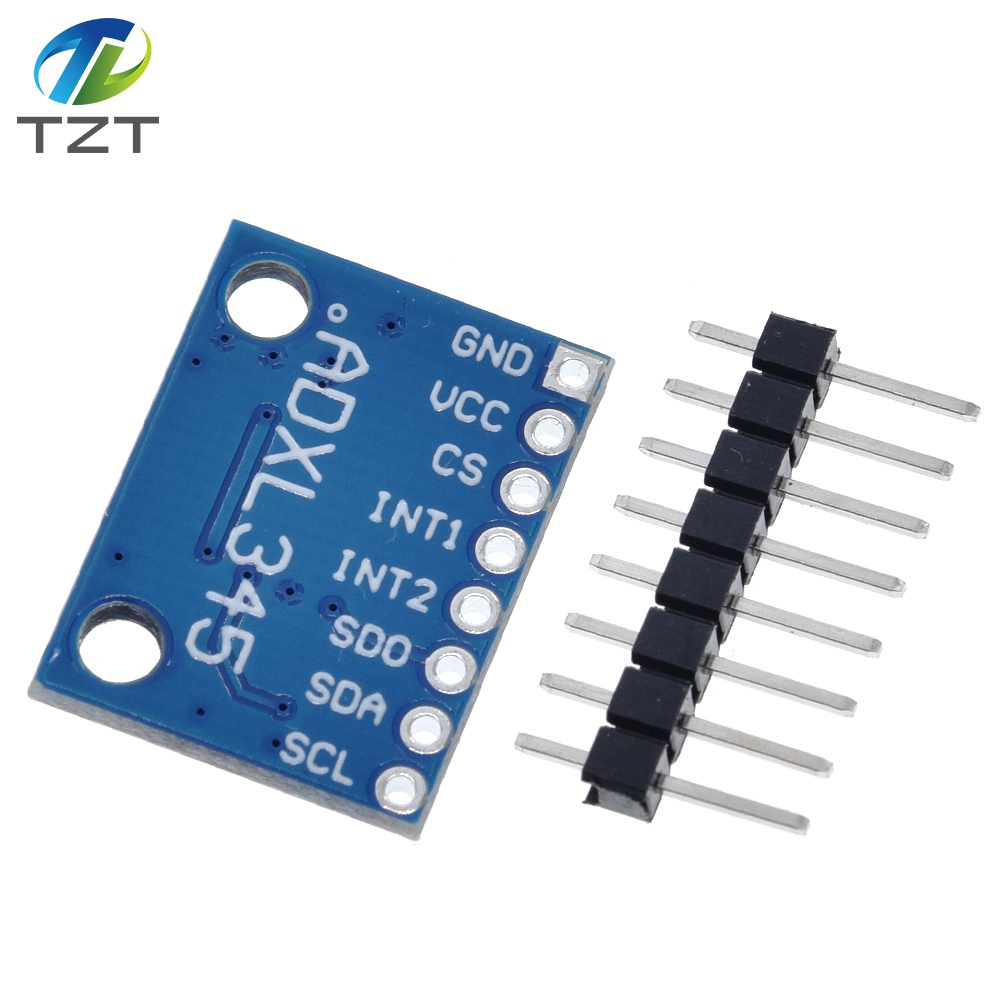

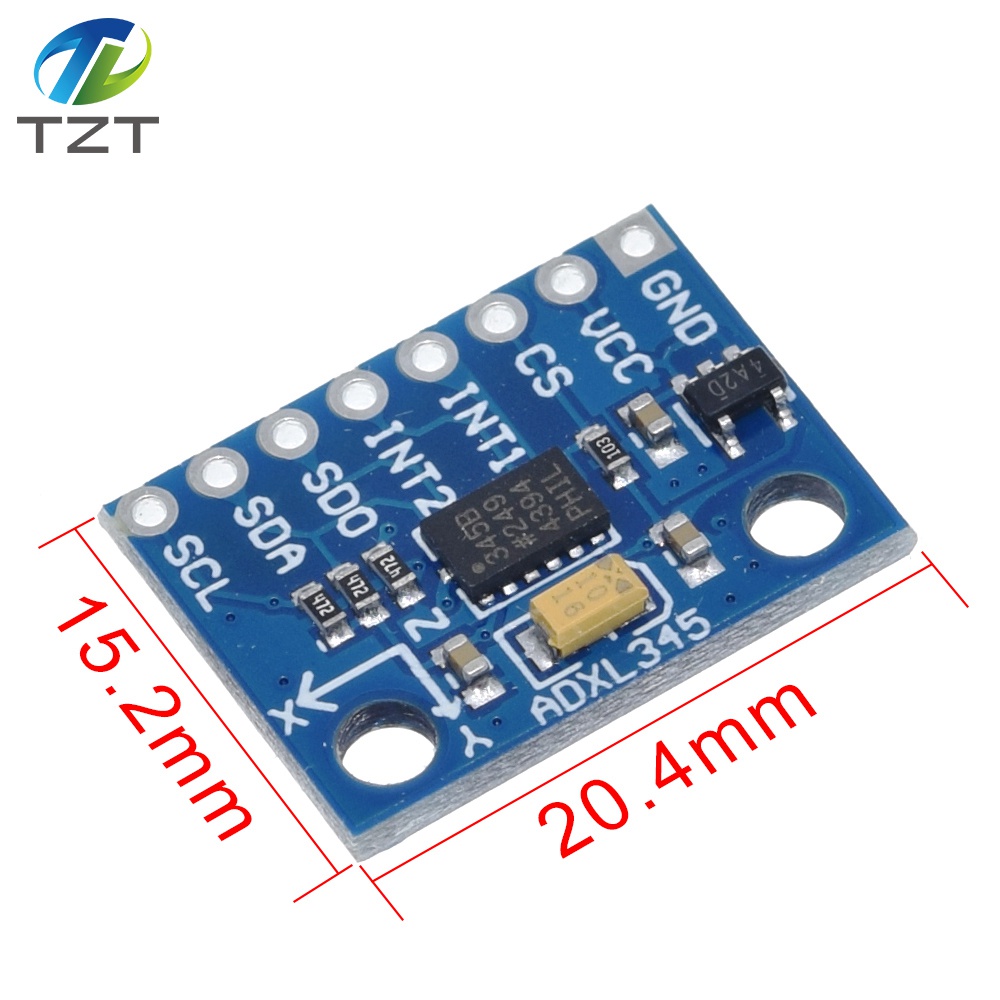

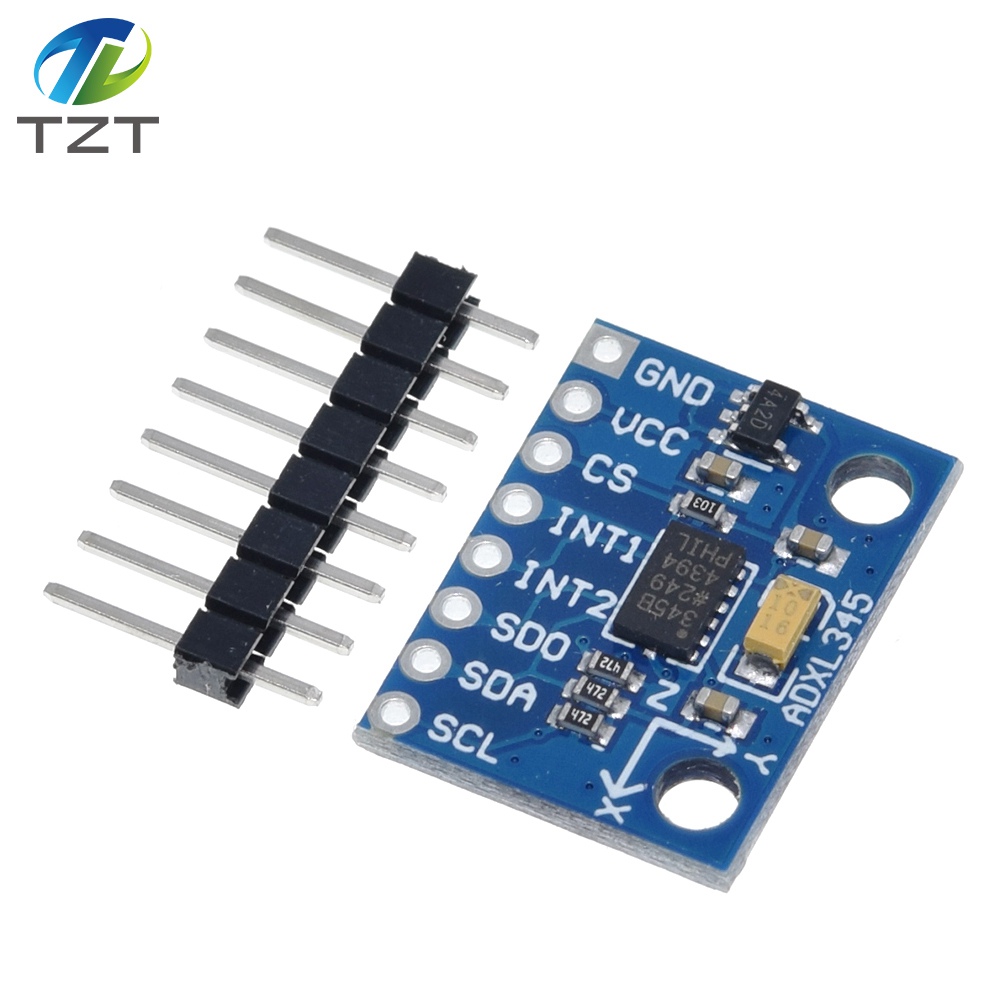

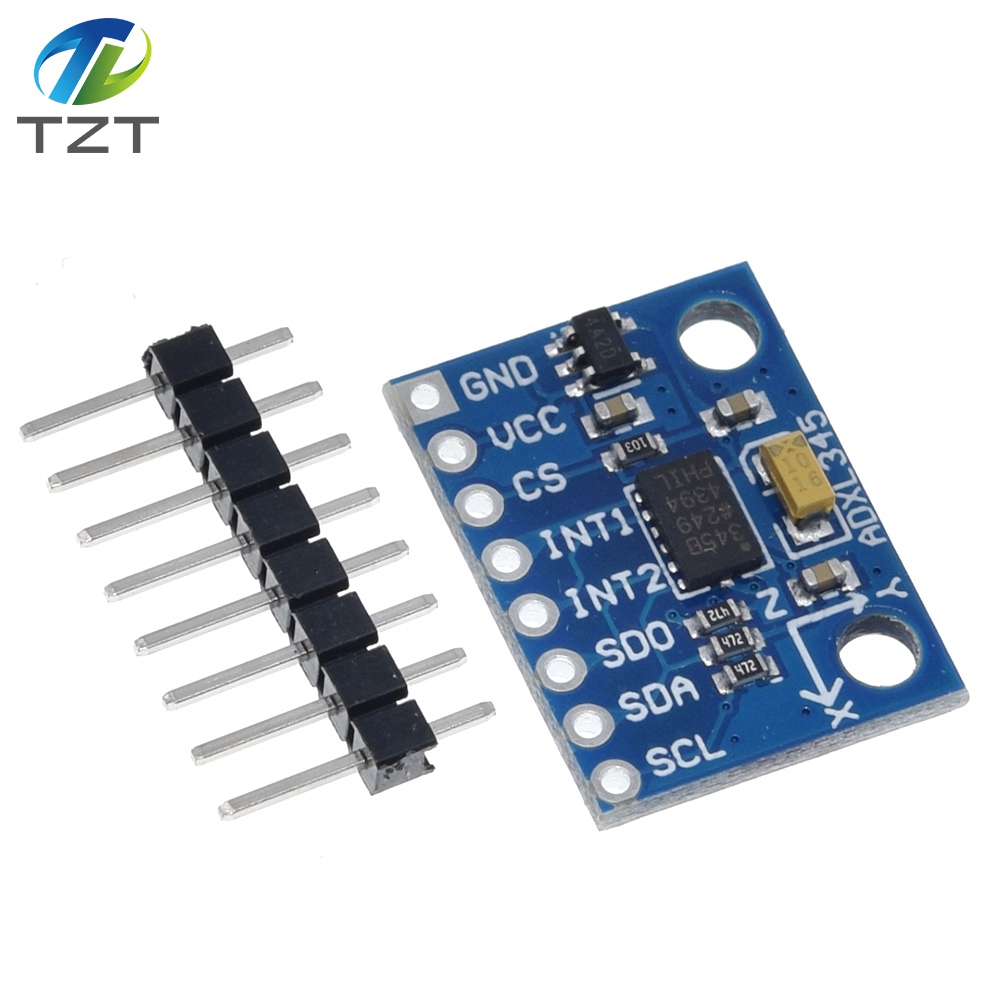

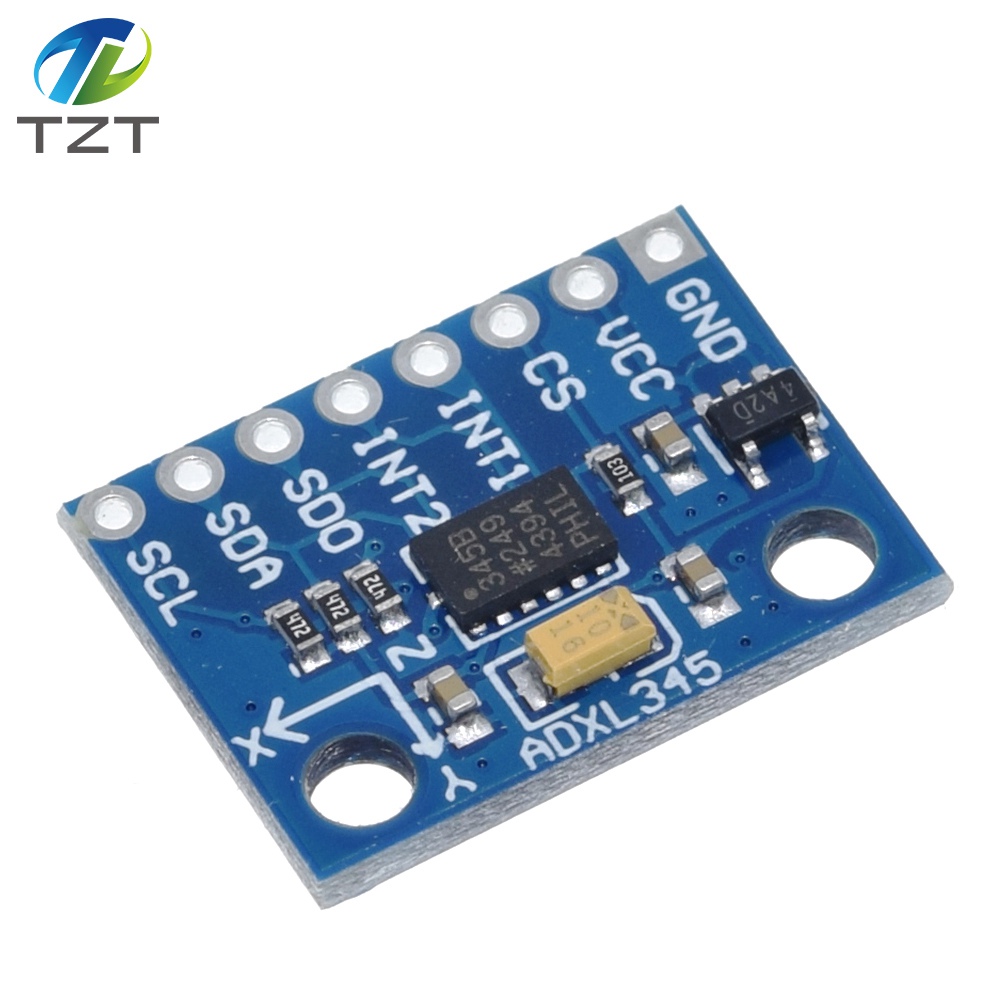

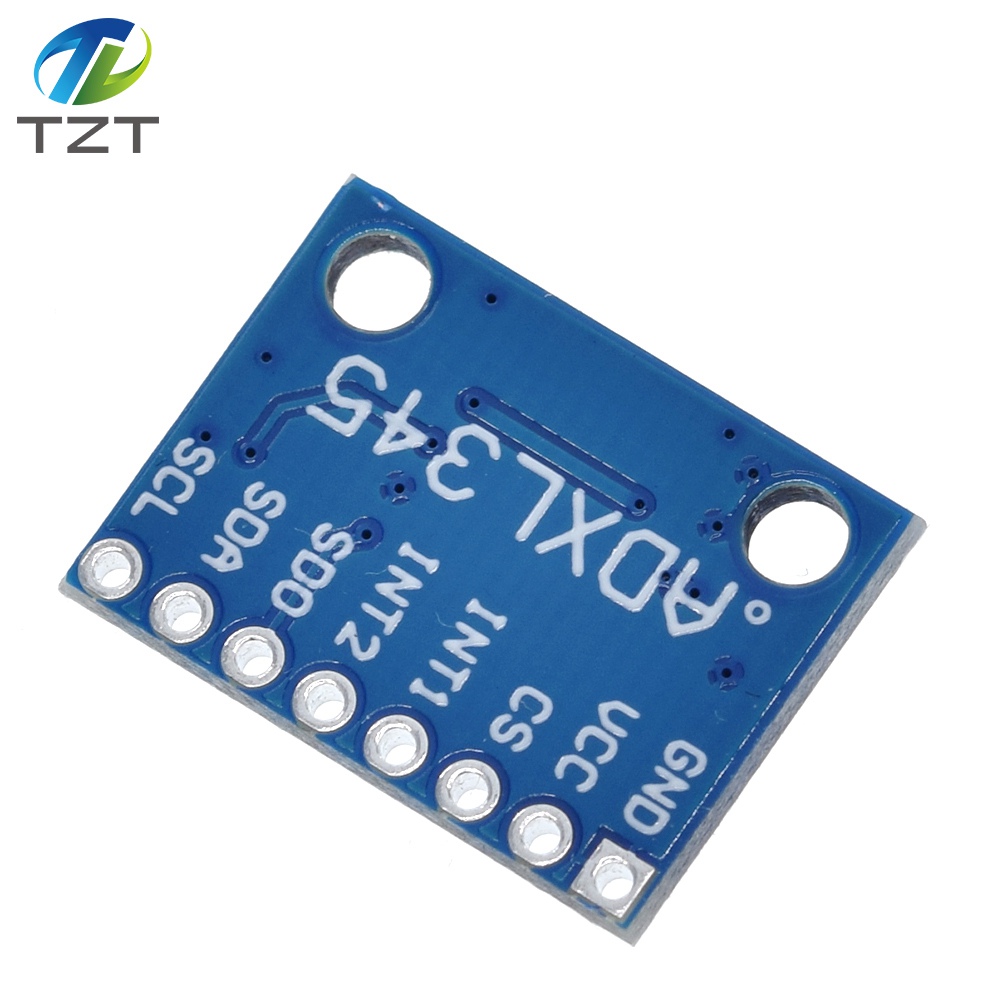

Name: ADXL345 module (the triaxial acceleration due to gravity)

Model: GY-291

Using the chip: ADXL345

Power supply :3-5v

Means of communication: IIC / SPI communication protocol

Measuring range: ± 2g ± 16g

Schematics, data, manuals and reference documentation

51, AVR, Arduino microcontroller test code

A lot of cash, you need to be able to directly photographed, large price advantages!

3-axis, ± 2g / ± 4g / ± 8g / ± 16g
Digital acceleration module

Outline

The ADXL345 is a small, thin, low-power 3-axis accelerometer, can high

TAT ± 16 g acceleration measurement of the high resolution (13 bits). Number of digital outputs
It is for the 16-bit two's complement format

SPI (3-wire or 4-wire) or I2C digital interface.

ADXL345 is well suited for mobile device applications. It can tilt-sensing applications
Measuring the static acceleration of gravity can also measure the movement or shock lead dynamic plus

Speed. It has a high resolution (4 mg / LSB), measuring approximately 0.25 ° tilting

Angle changes. The accelerometer ADXL345 digital output, without the need for

The analog-to-digital conversion, which can save the system cost and board space. In addition,

ADXL345 is a small, thin, ultra-low-power 3-axis accelerometer, resolution

(13), the measurement range of ± 16g. The digital output data for the 16-bit binary
Complement format, via the SPI (3-wire or 4-wire) or I2C digital interface access.

ADXL345 is well suited for mobile device applications. It can be in tilt-sensing applications
To measure the static acceleration of gravity, can also measure the movement or shock lead dynamic

State acceleration. Its high resolution (3.9mg/LSB), capable of measuring less than 1.0 °
The inclination angle change.

The device offers a variety of special detection function. Activity and non-activity detection function through
By comparing any axis acceleration and a user-set threshold value to detect presence or absence of op

The action occurred. Percussion single vibration detection function can detect any direction and dual vibration

For. The freefall detection function can detect whether a device is falling. These

The function can be independently mapped to two interrupt output pin. Is the applicant
Please patented integrated memory management system with a 32 first-in, first-out
(FIFO) buffer that can be used to store data, so the host processor load
Minimize and reduce overall system power consumption.
Low-power mode to support motion-based intelligent power management, which extremely low
Power consumption threshold sensing and motion acceleration measurement.
ADXL345 3 mm x 5 mm x 1 mm, 14-pin small ultra-thin plastic
Package.
