ESP-01 Esp8266 ESP-01S Model Of The ESP8266 Serial Breadboard Adapter To WiFi Transceiver Module Breakout UART Module

Description:

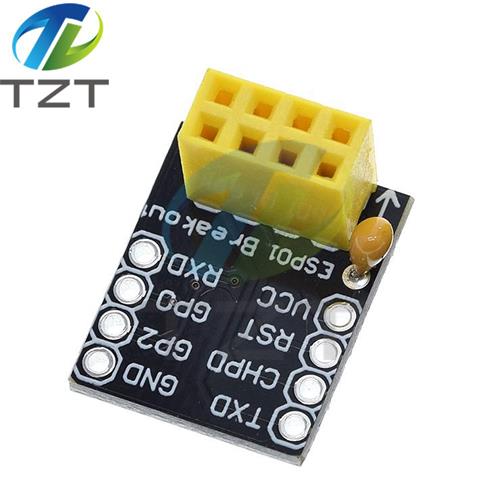

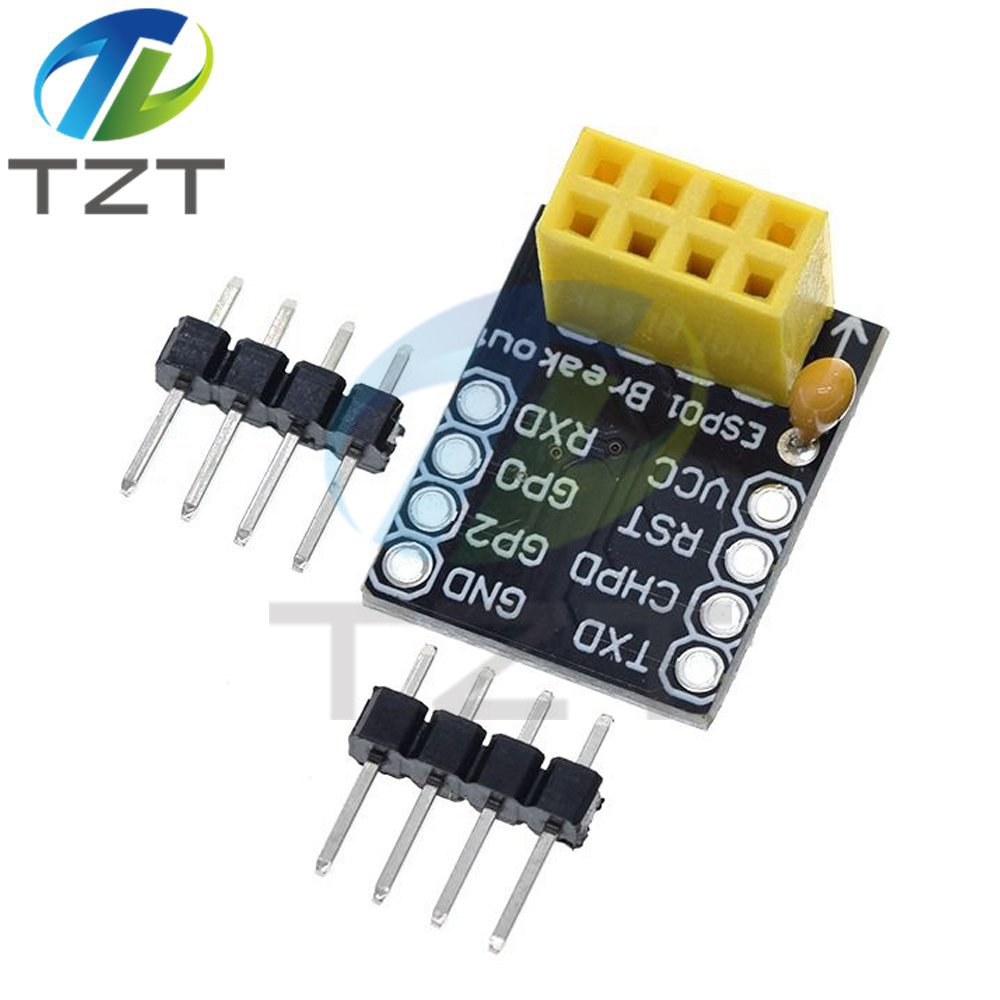

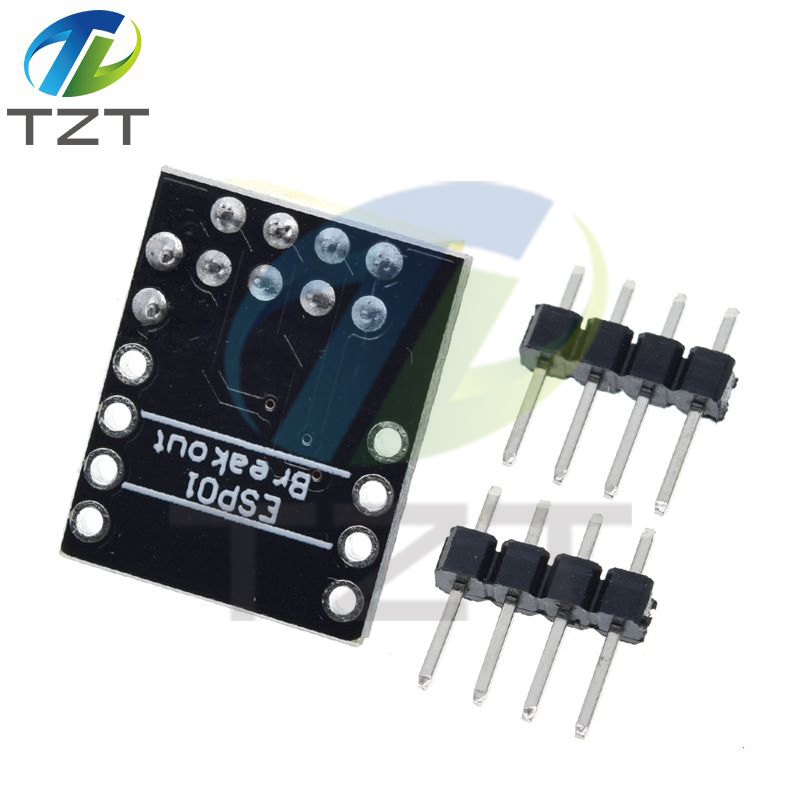

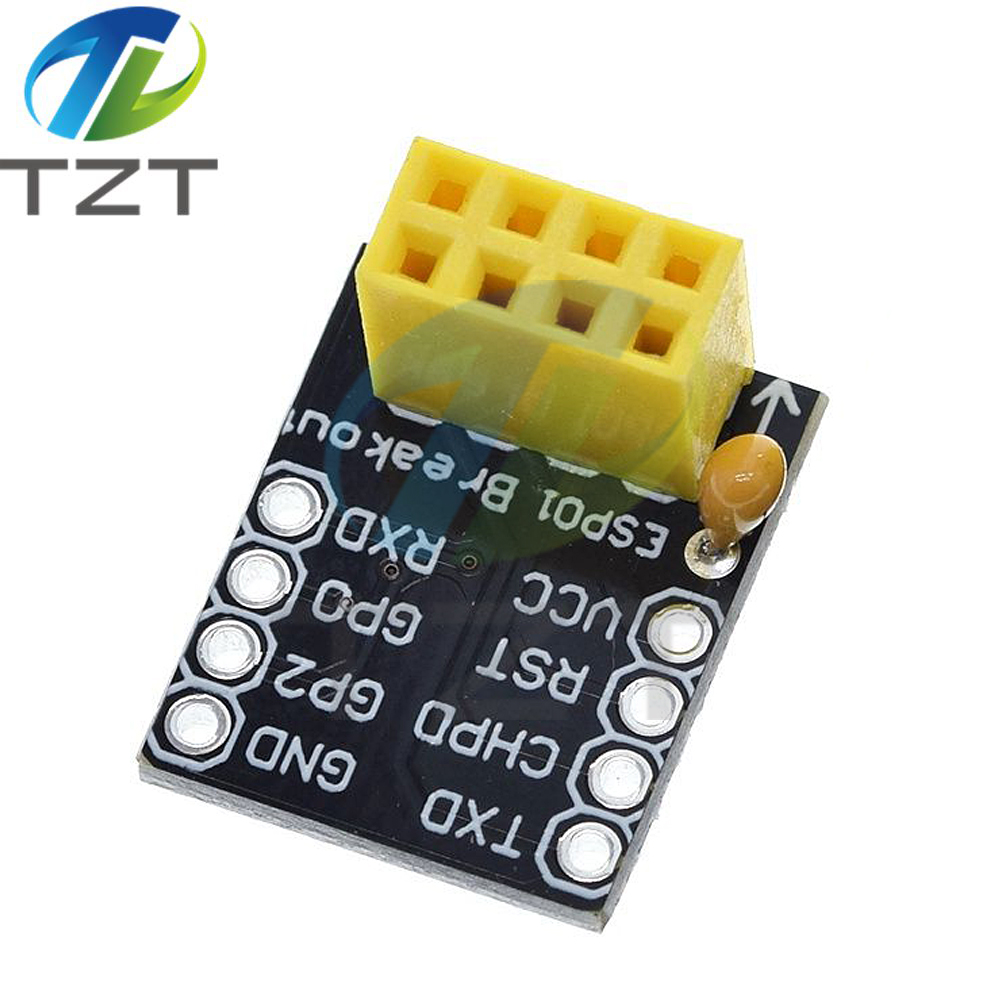

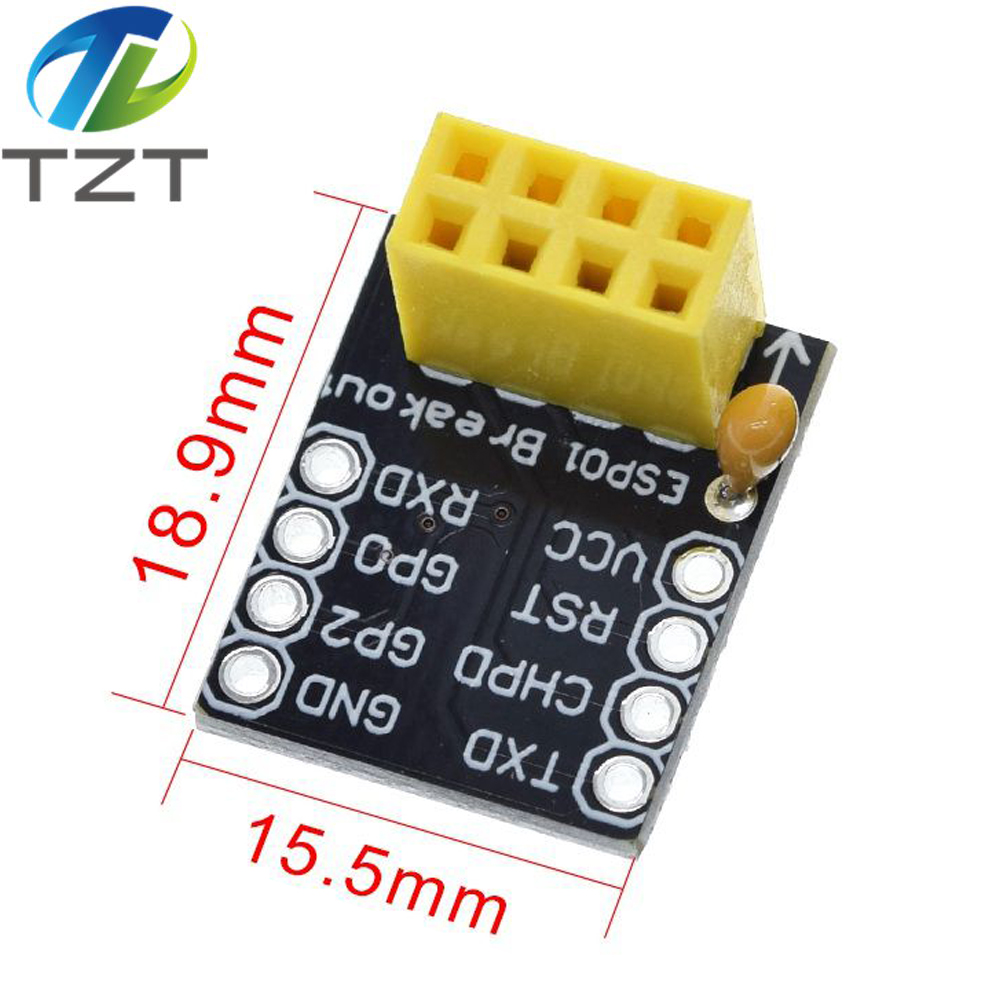

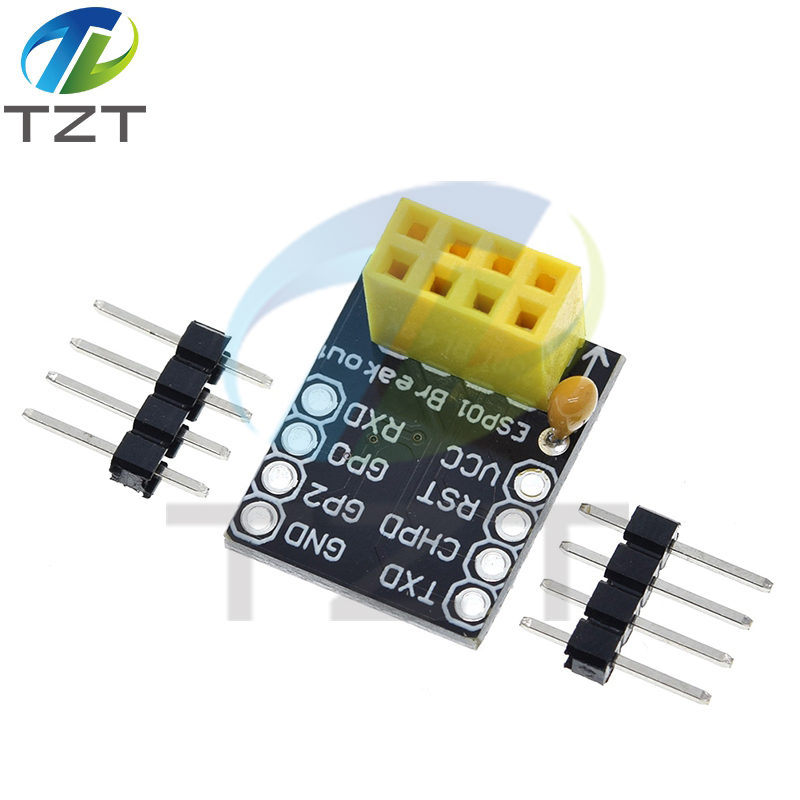

This is a breadboard adapter for the popular ESP-01 model of the ESP8266 serial-to-WiFi transceiver module.

As ESP-01 Pin arrangements are not breadboard friendly and are not labeled, which makes it little inconvenient for rapid prototyping.This breadboard adapter will help you to make

prototyping with esp-01 module much more easier.

This breakout conveniently offers clear pinout silkprint on top and will nicely fit your prefered breadboard.

Last but not least, we added a 0.1µF decoupling capacitor so the ESP-01 will always run smoothly and without a hitch.

Connection:

URAT        Adapter

3.3V           VCC

3.3V           CH-PD

TX               RX

RX              TX

Choose both NL CR 15200 baud rate
