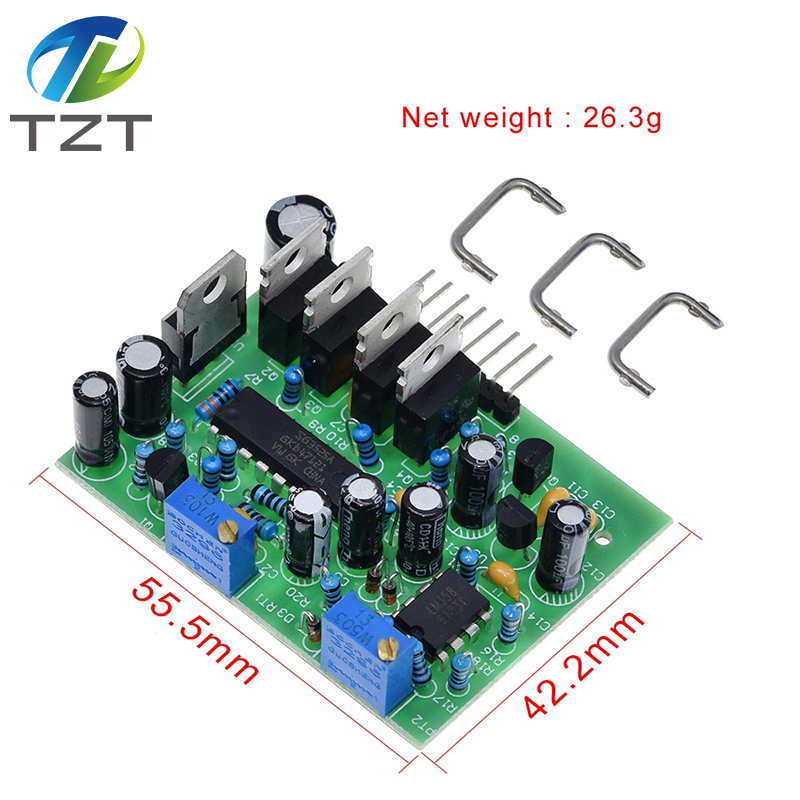

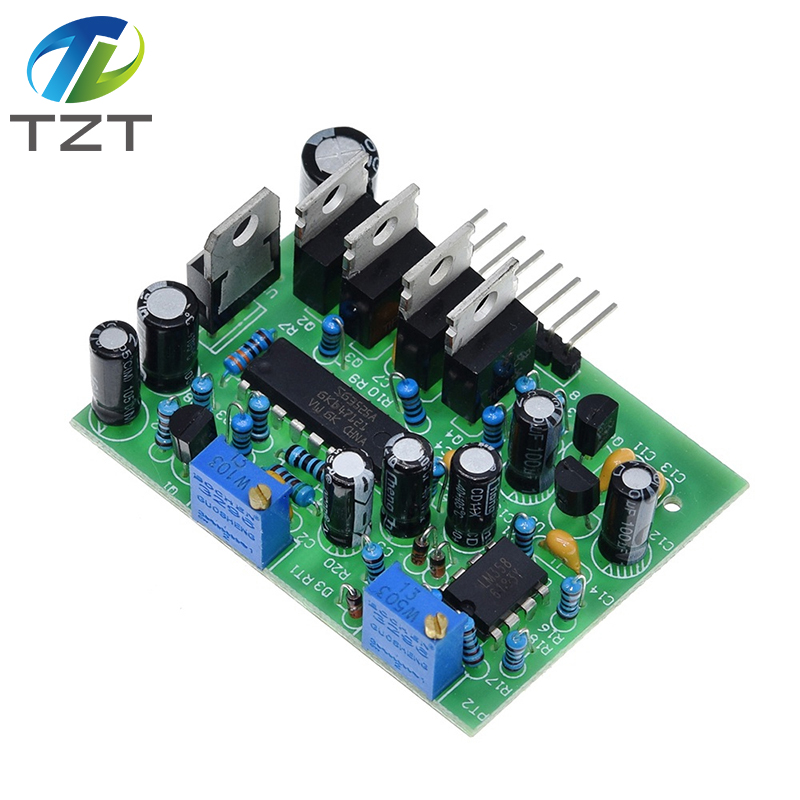

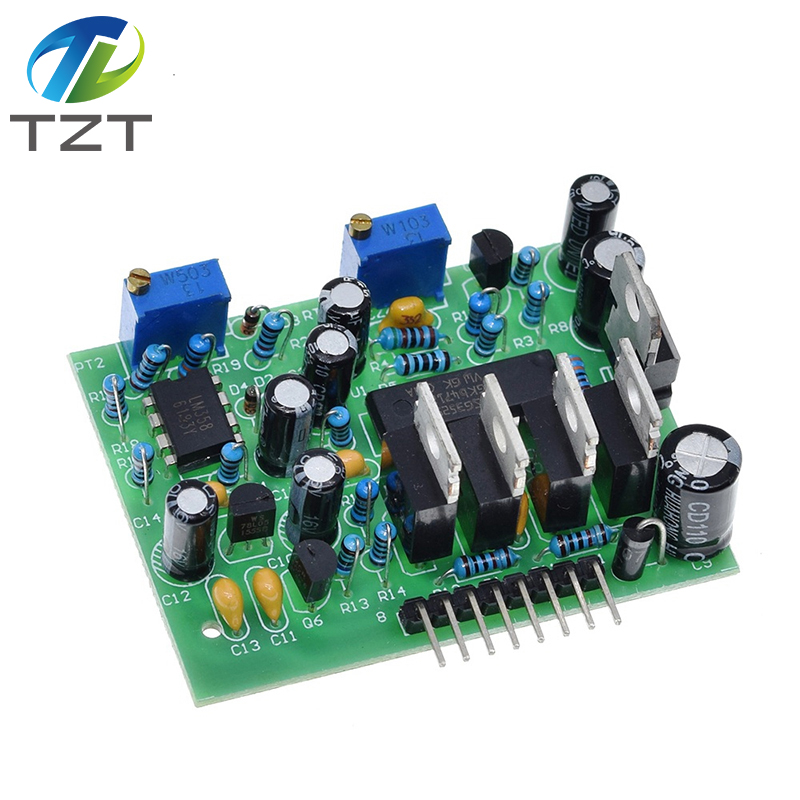

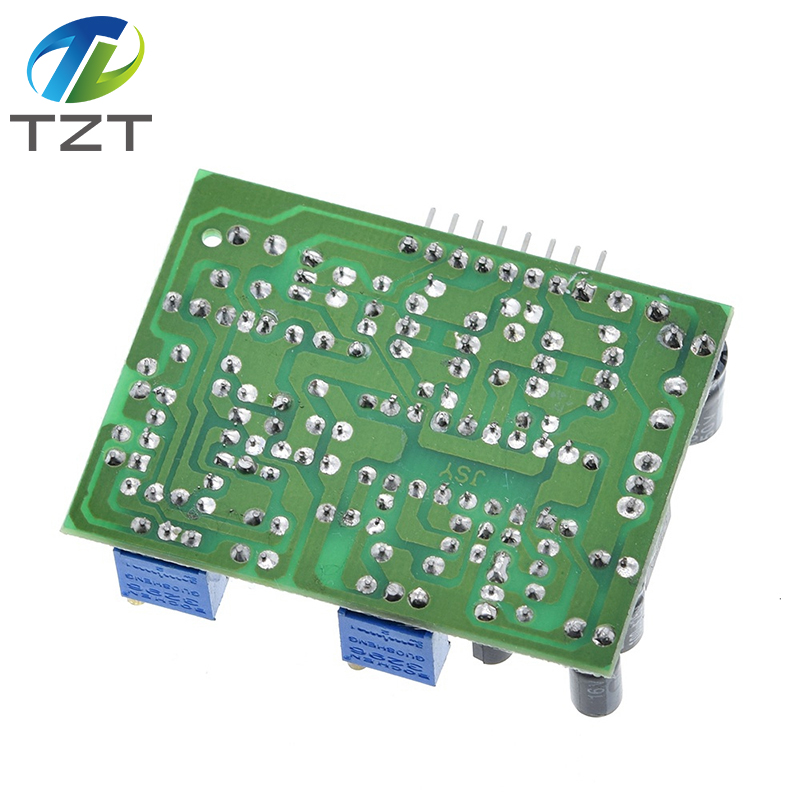

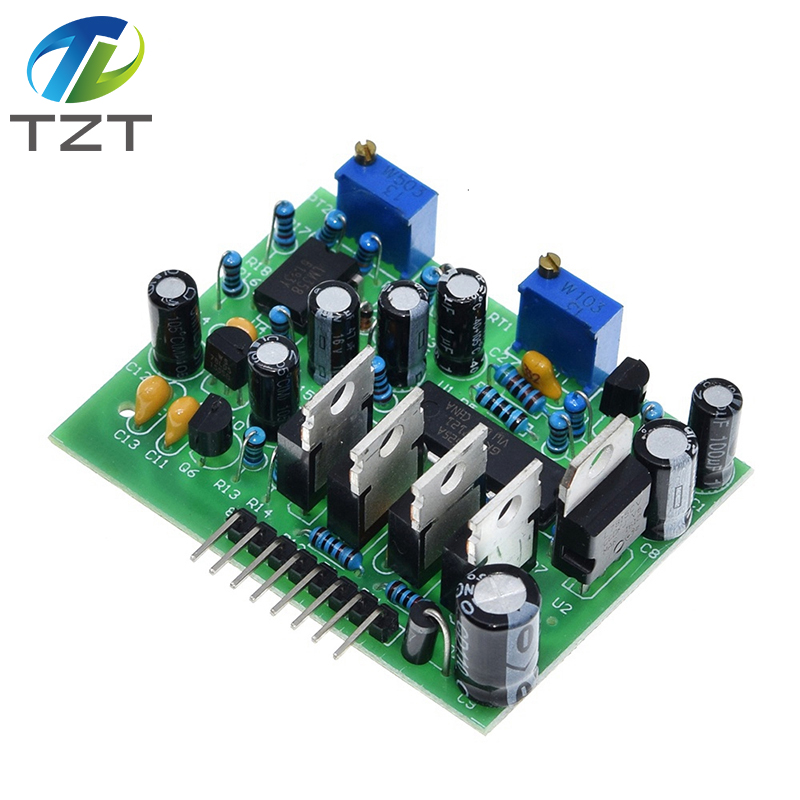

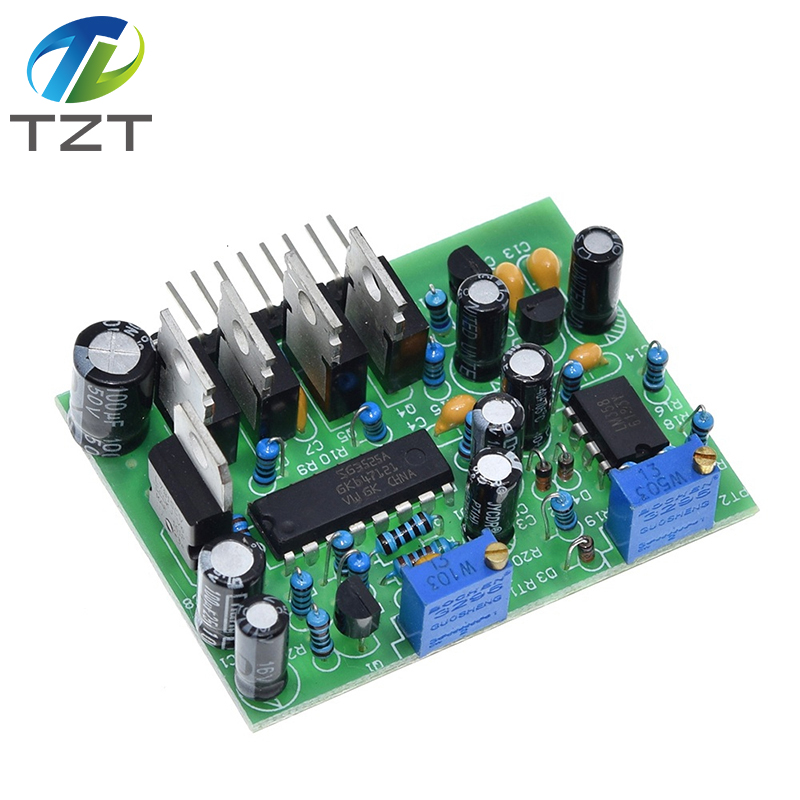

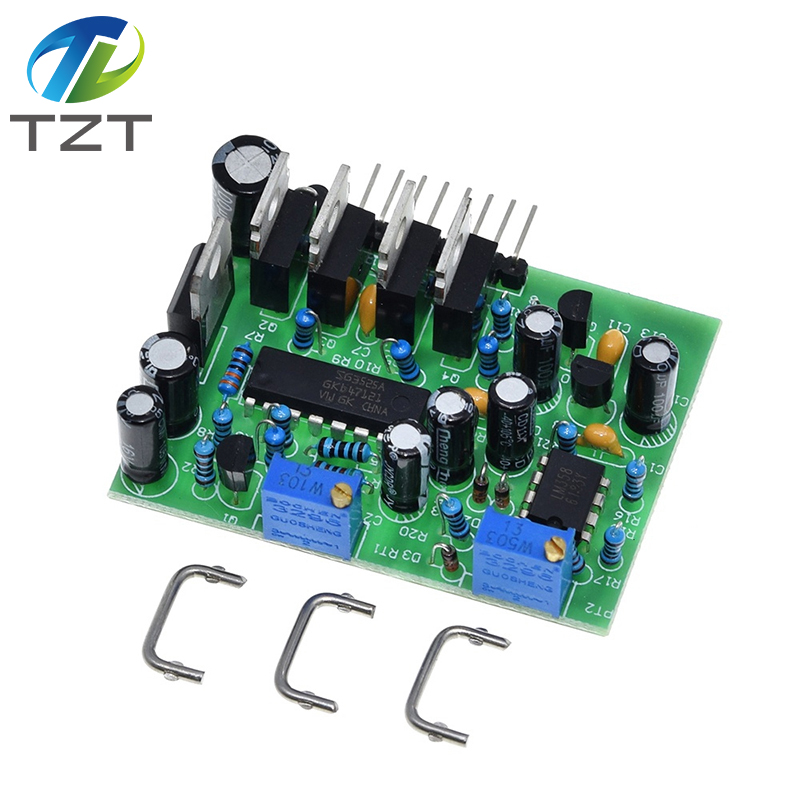

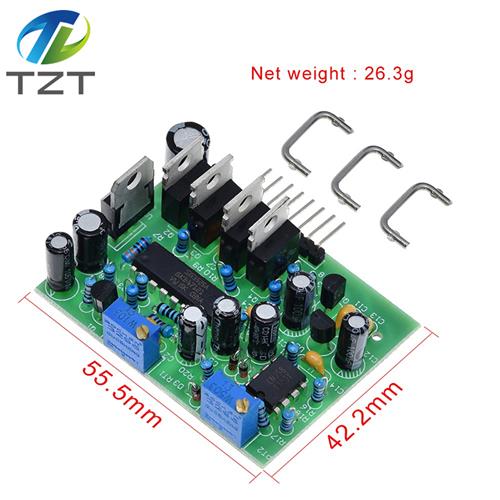

13-40KHz Inverter Driver Board SG3525 LM358 High Current High Frequency Adjustable DC 12-24V Driving 5000W

Product Introduction:
1.Voltage Range:12-24V
2.Power Transposition Protection
3.Preceding Stage Overcurrent (short circuit) Protection
4.Backing Stage Overcurrent (short circuit) Protection,adopt locking protection
  ie:after protection,it needs to loosen driving power switch;push again,there will be driving signal output
5.Frequency Range:13KHz-40KHz
6.High Power TO-220 output(can drive 5000W motor)

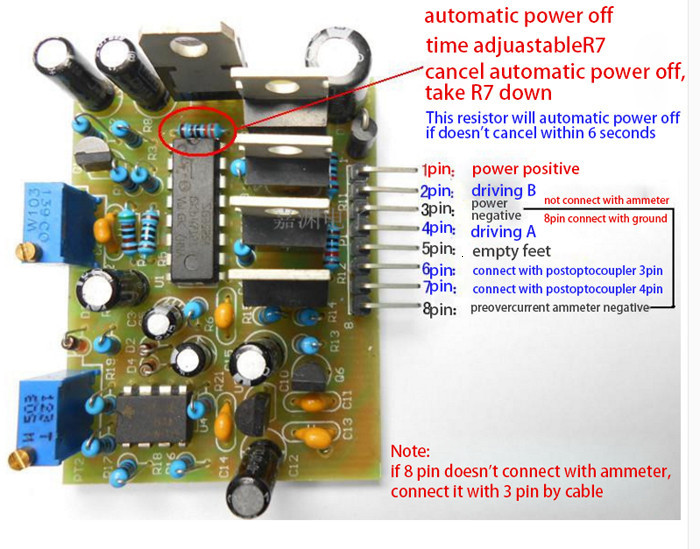

7.6s Automatic Power Off Function,and it will effectively protect human body( time can be adjusted with R7,  remove the R7 to cancel the automatic OFF function)
8.Chip:SG3525
9.Resistance Material:metal film
