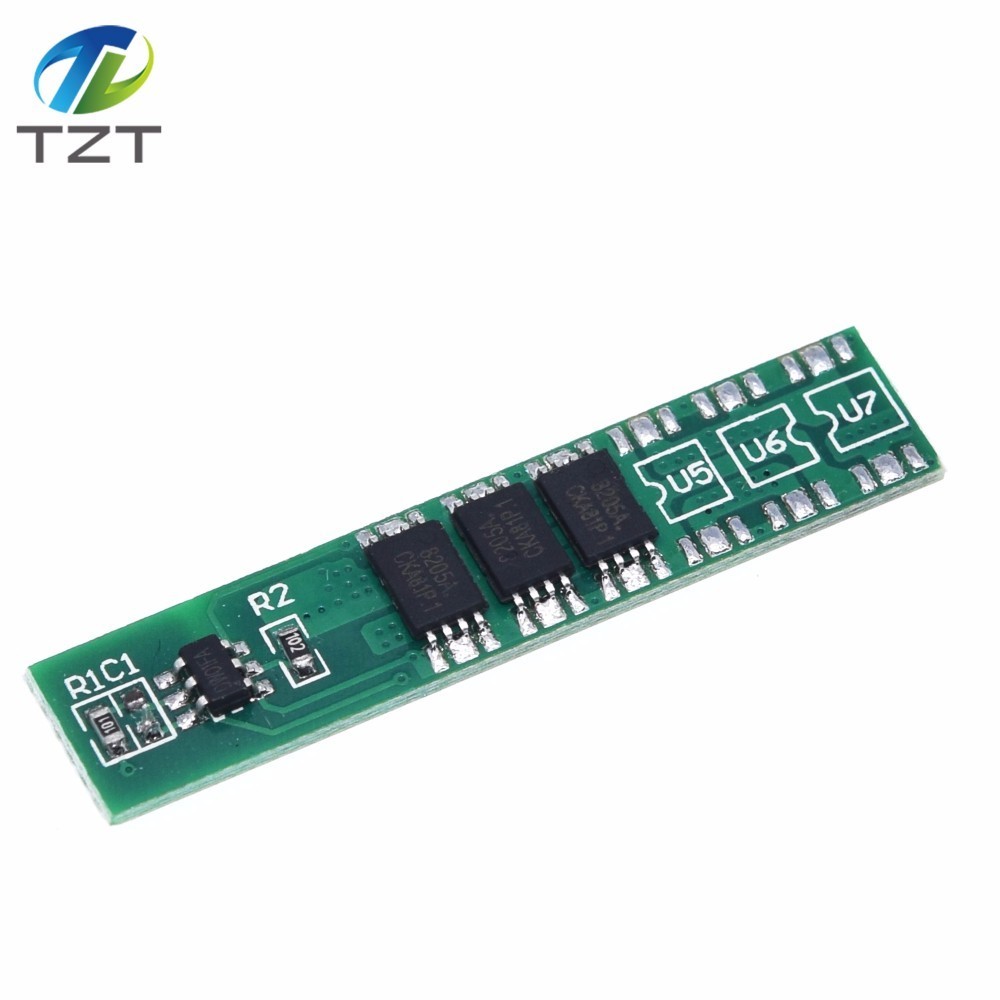

TZT 1S 15A 3.7V Li-ion 3MOS 4MOS 6MOS BMS PCM Battery Protection Board PCM for 18650 Lithium Lion Battery

Score：

Brand：TZT

Weight：0.80~0.80g

Stock：7219065

Price：$0.19~0.20

Style：

Quantity:: - +

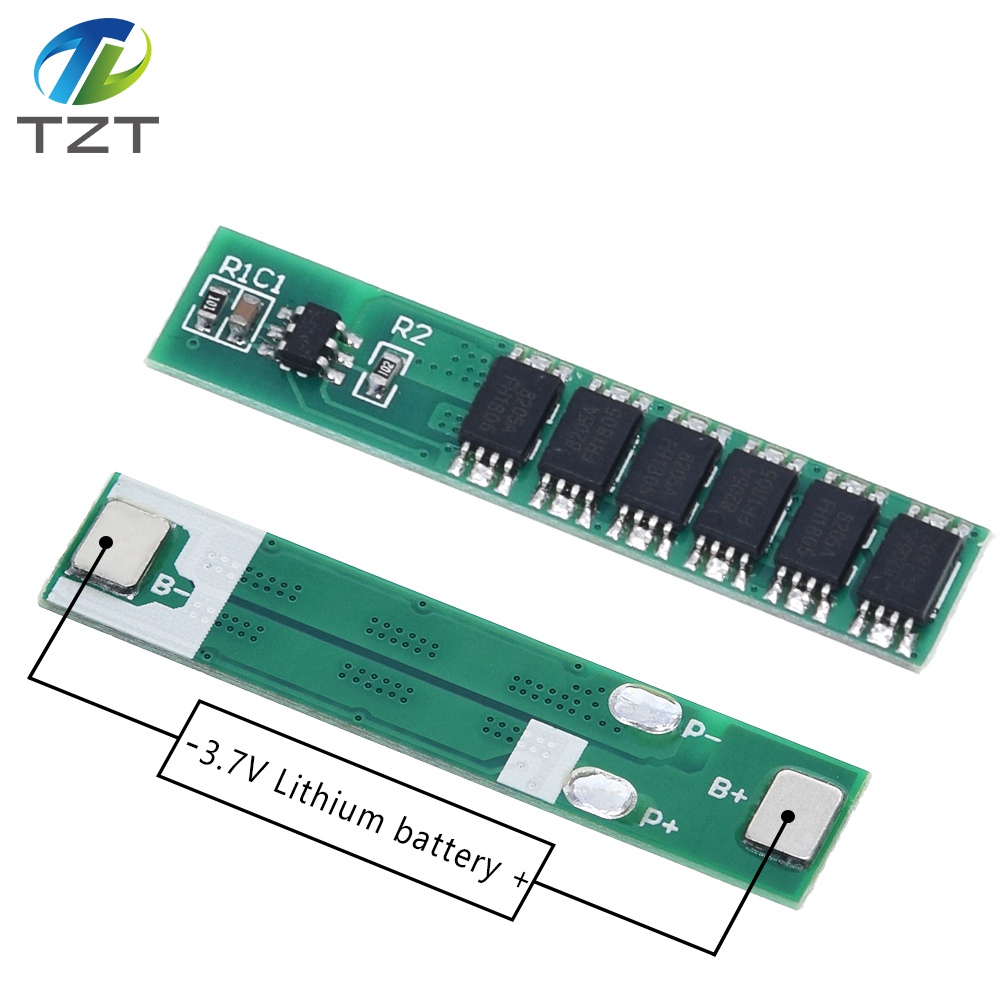

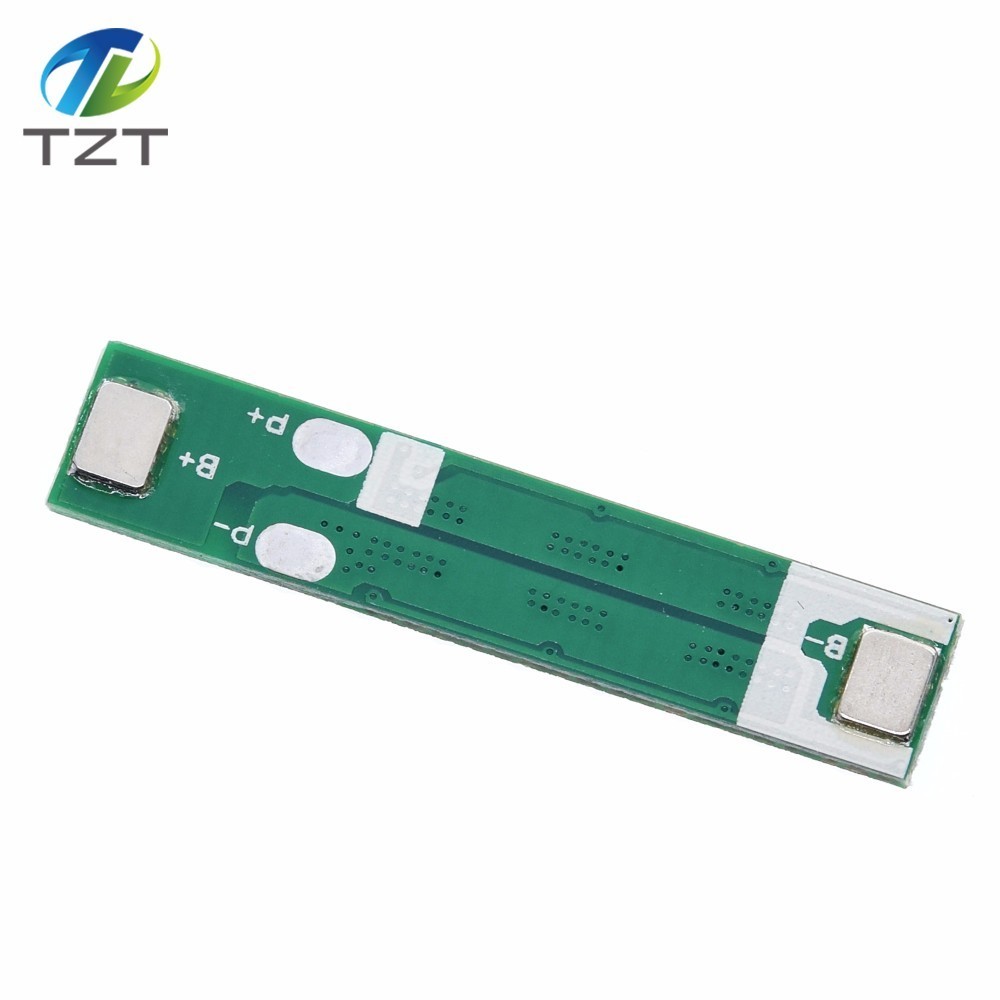

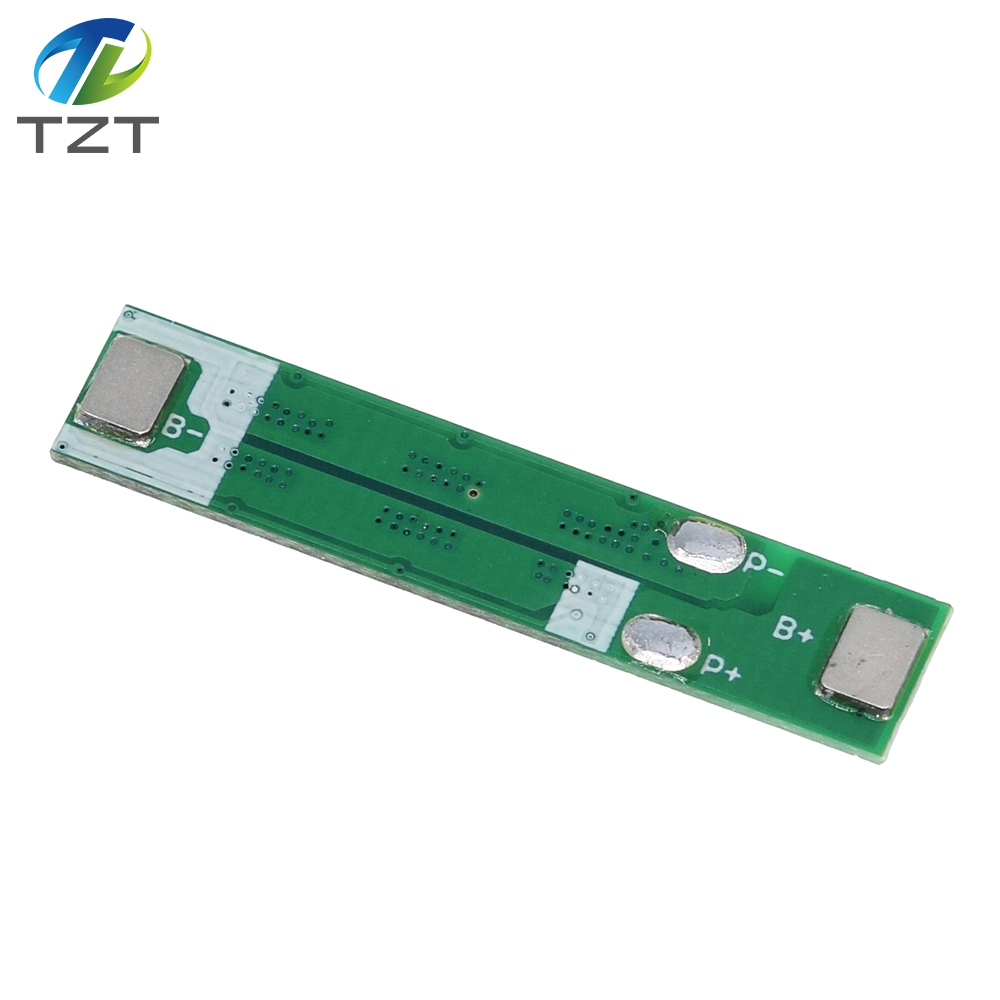

Technical parameters: Overcharge detection voltage: 4.25 + 0.05V Overcharge disconnection voltage: 4.23 + 0.05V Overdischarge detection voltage: 2.45 + 0.1v Maximum continuous current: 12A Overcurrent detection current: 15A Charging voltage: 4.2v Product size: 35*7.6*2MM IC component: DW01+8205A Main functions: Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection. Wiring instructions: B+ connect the positive electrode of the battery. B- connect the battery cathode. P+ is the input positive pole of battery output P- is the output input cathode of the battery pack Wire connection:

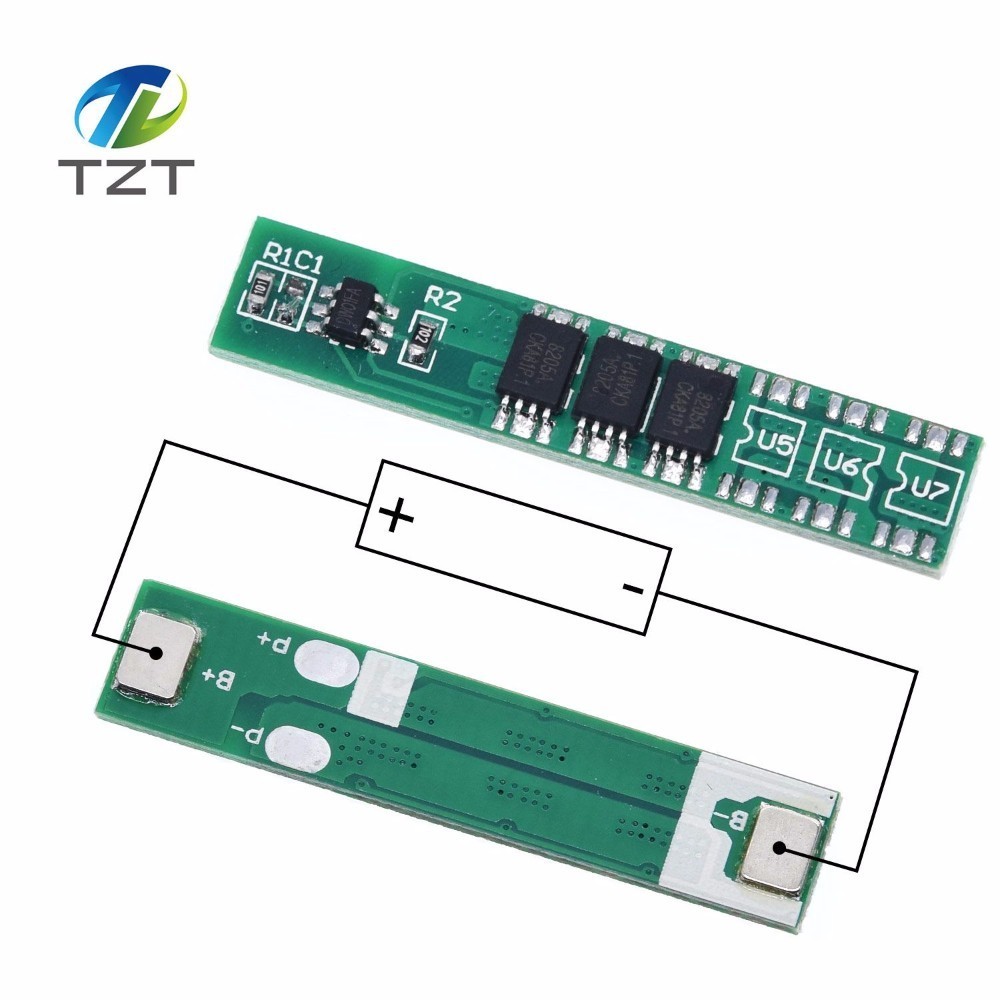

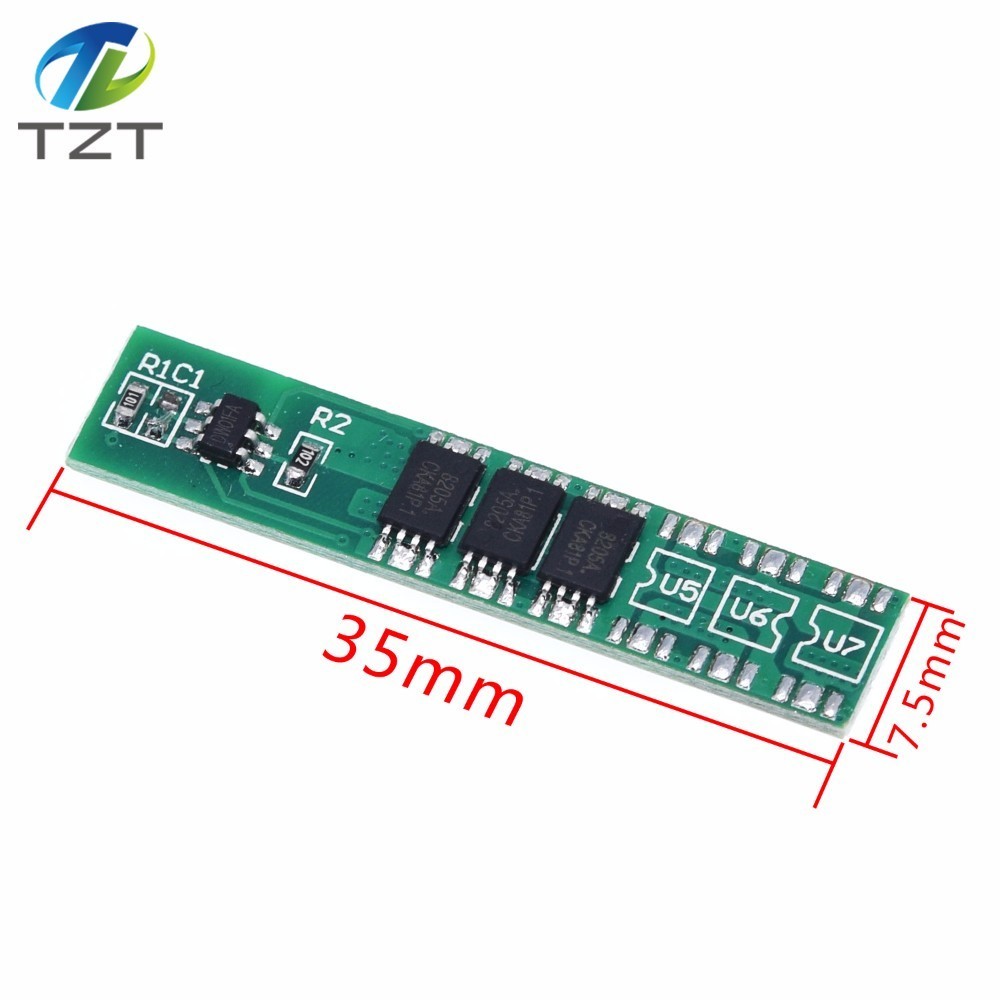

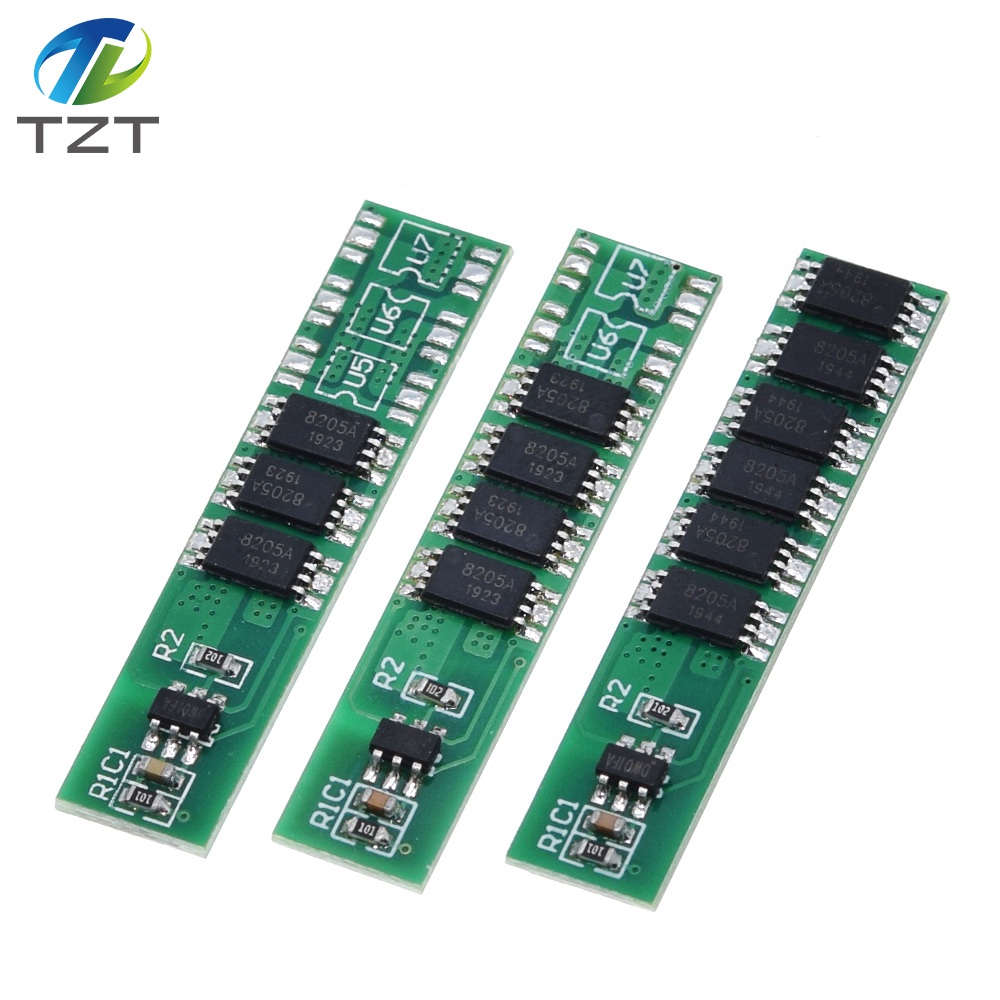

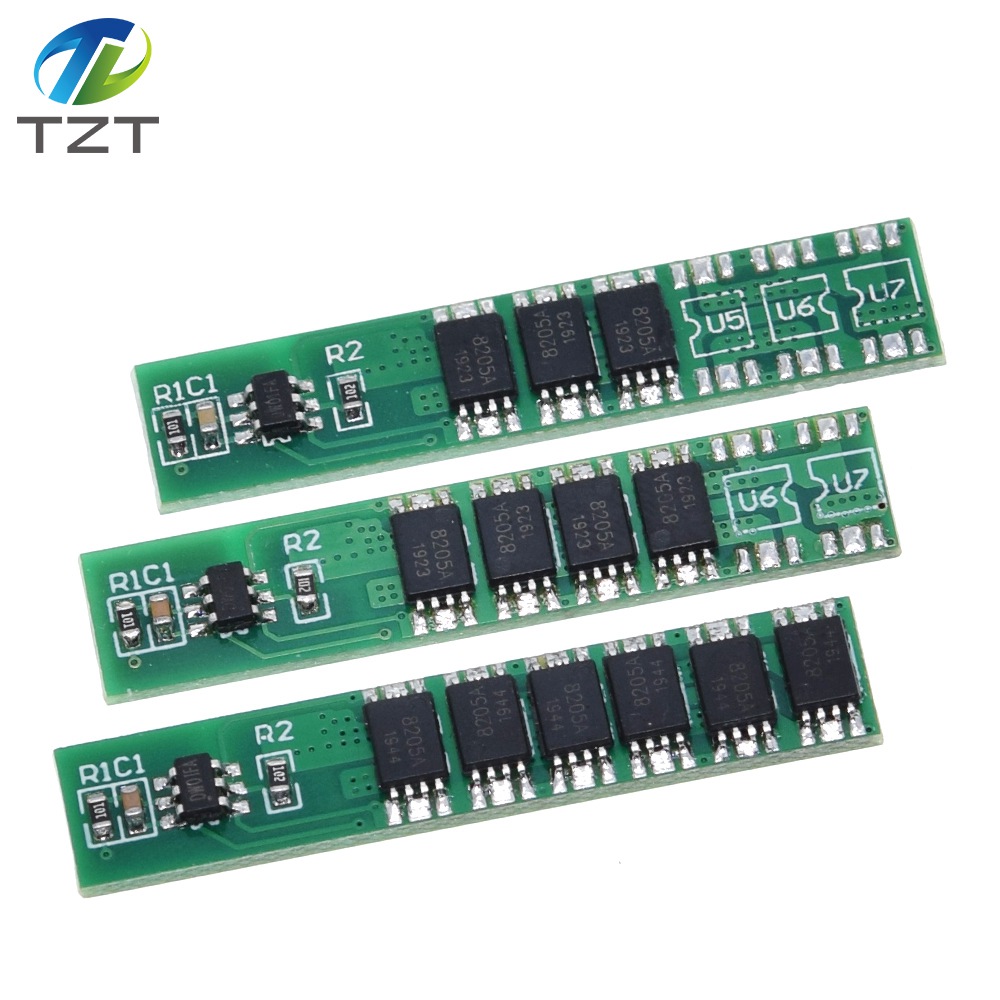

3MOS Specification Over charge voltage: 4.25±0.05V Over charge release voltage:4.23±0.05V Over discharge voltage:2.54±0.1V Maximal continuous charging/discharge current: 6A Maximal Discharging current: 7.5A Size: L35*W7*T2mm Weight: 10g

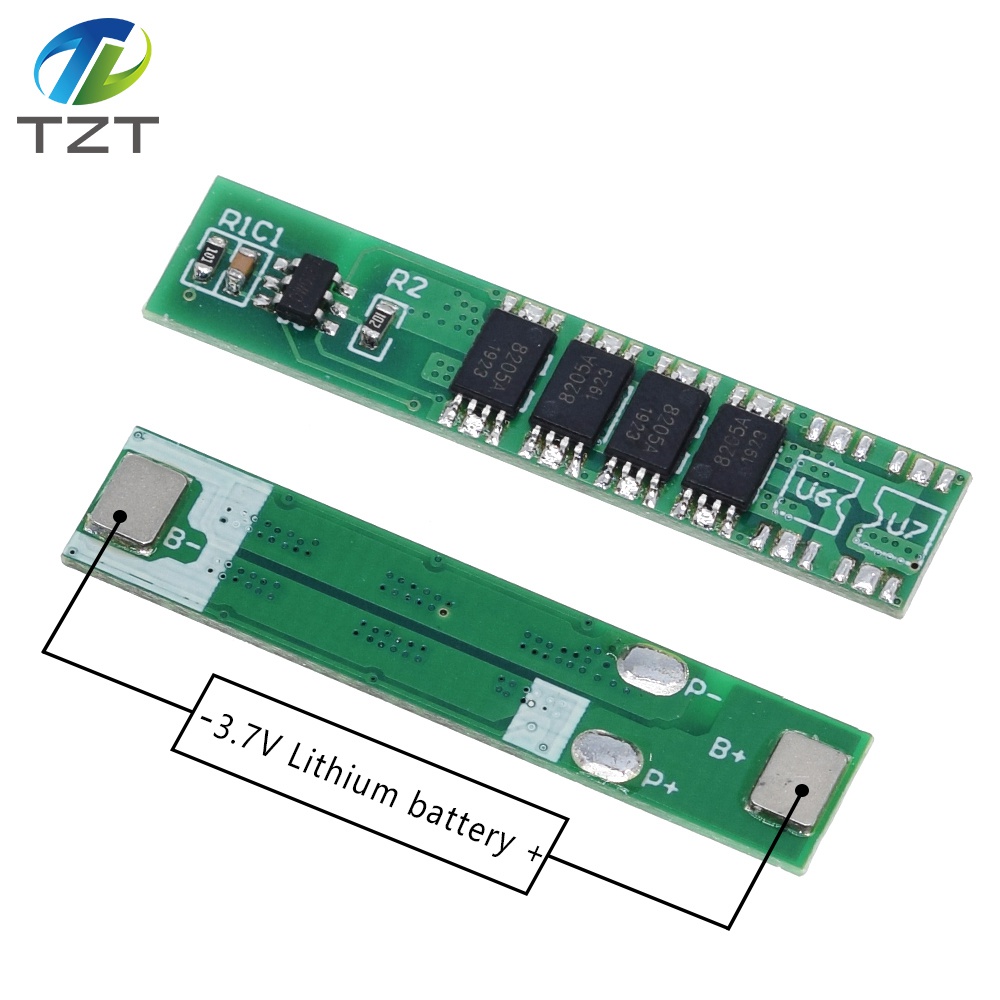

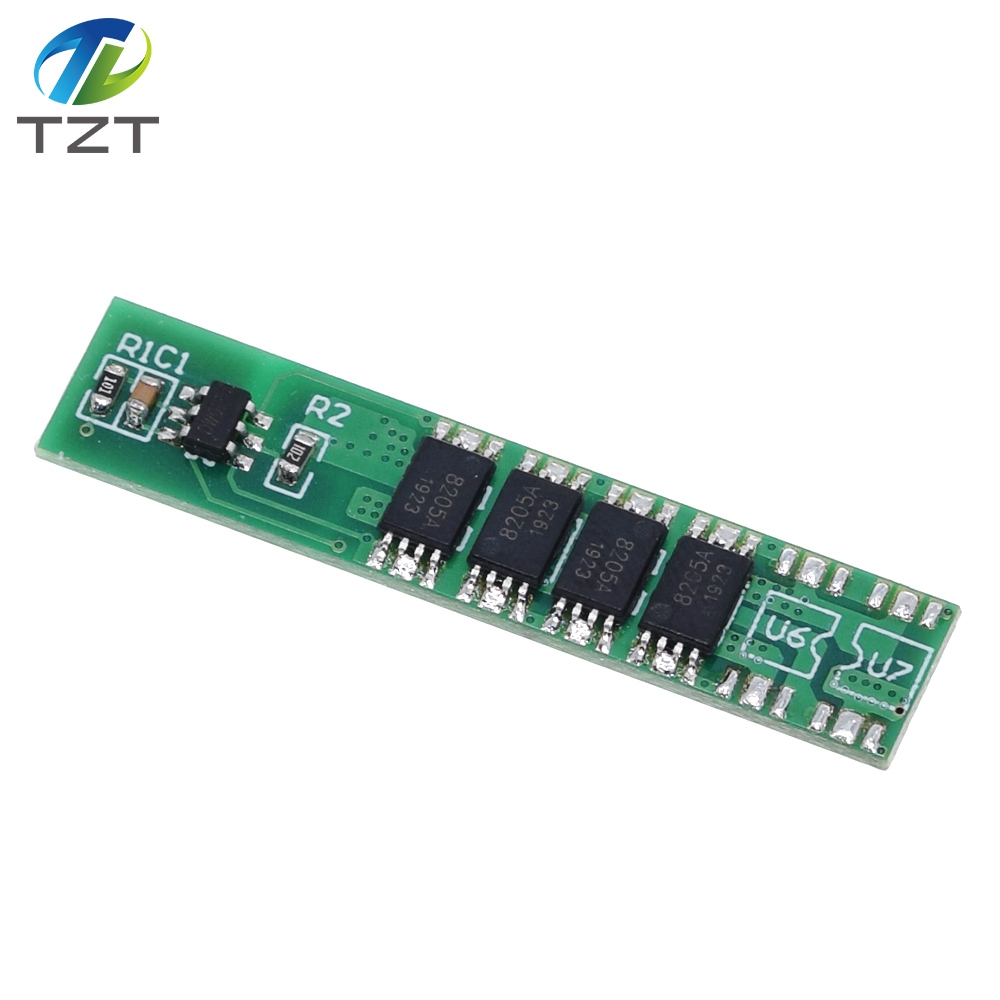

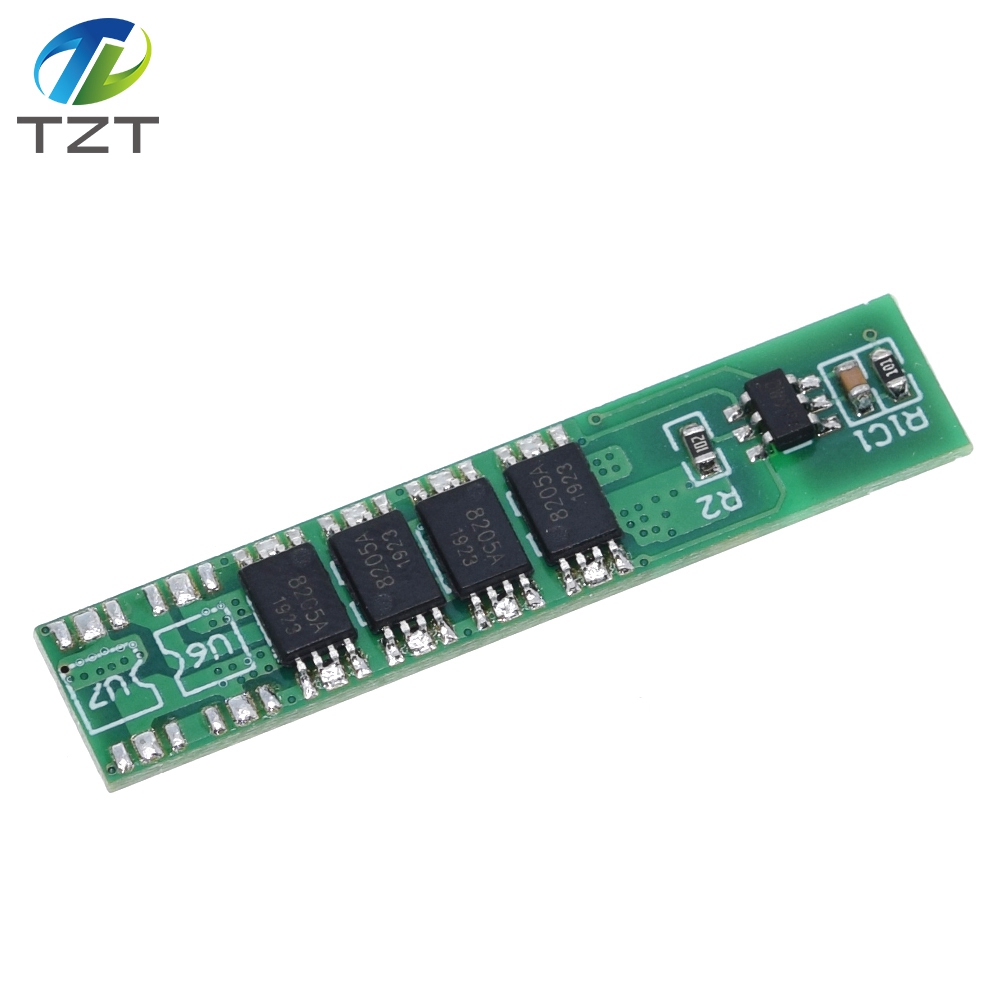

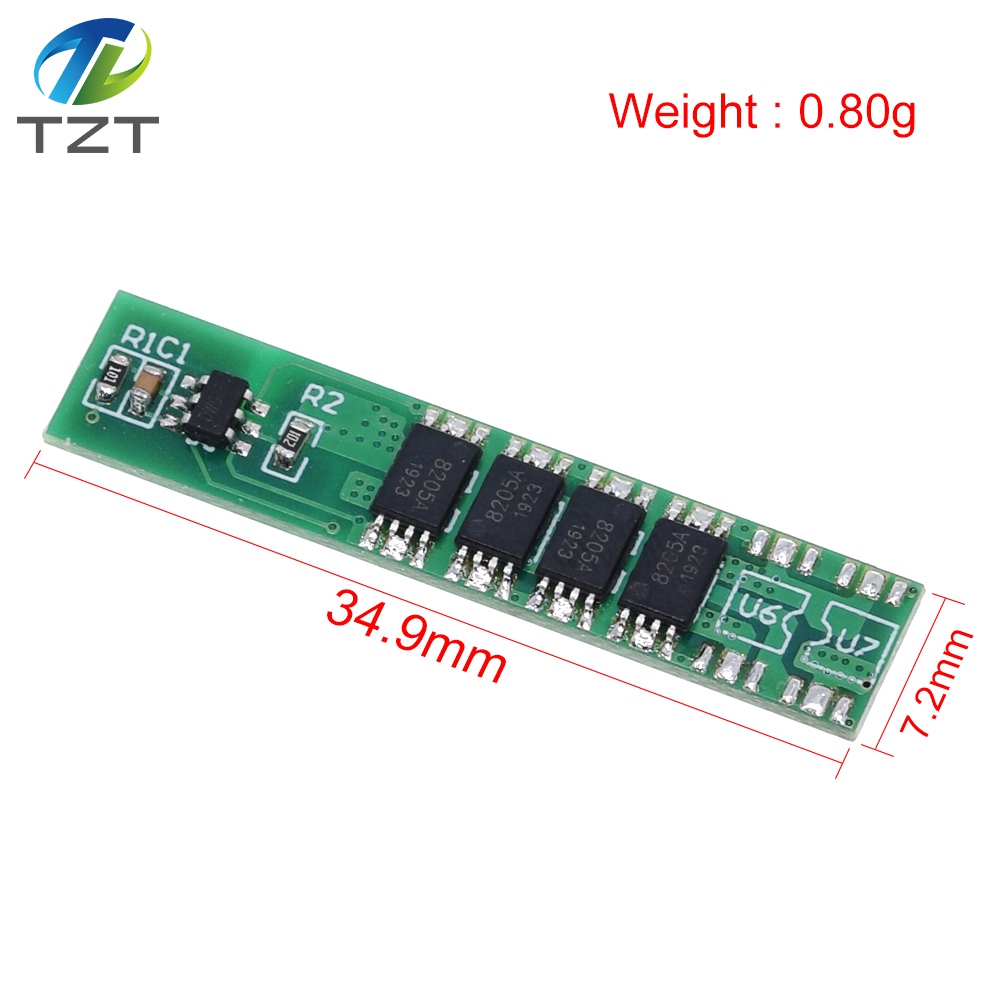

4MOS: Over charge voltage: 4.25±0.05V Over charge release voltage:4.23±0.05V Over discharge voltage:2.54±0.1V Maximal continuous charging/discharge current: 7.5A Maximal Discharging current: 10A Size: L35*W7*T2mm Weight: 10g Technical parameters:

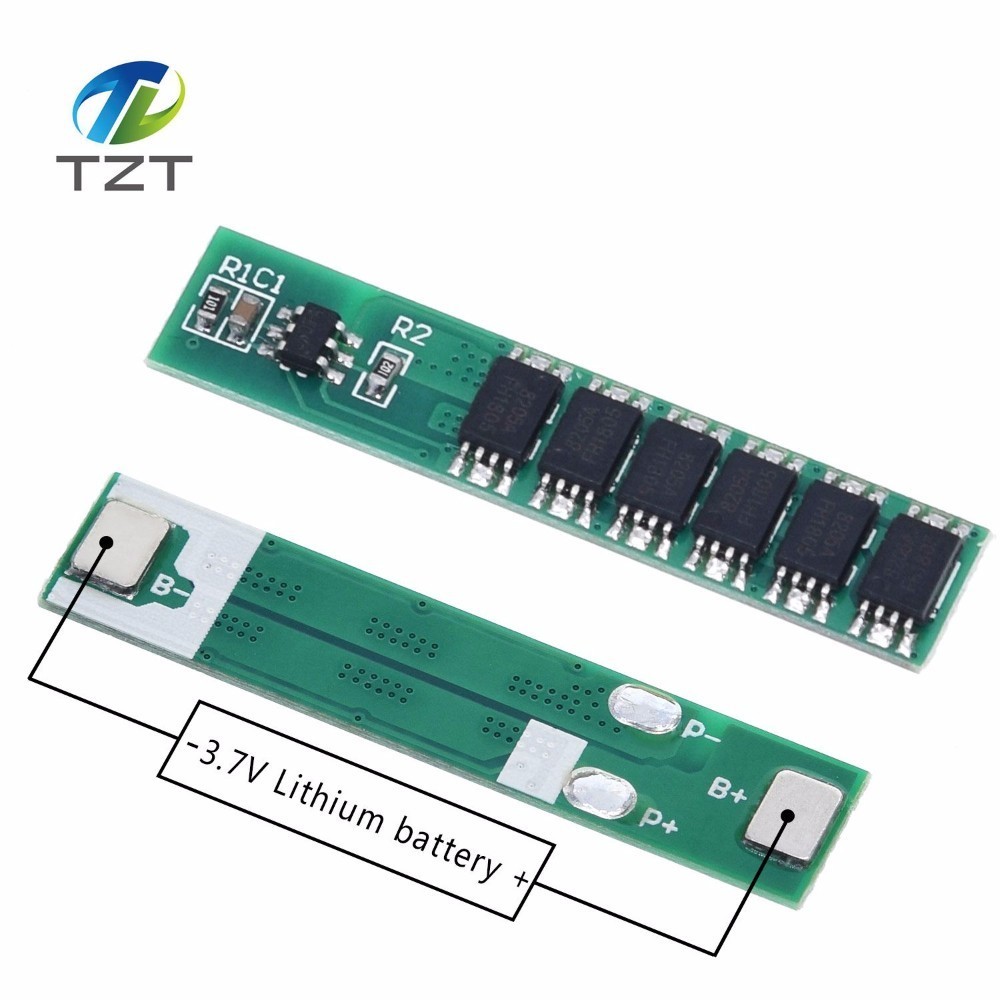

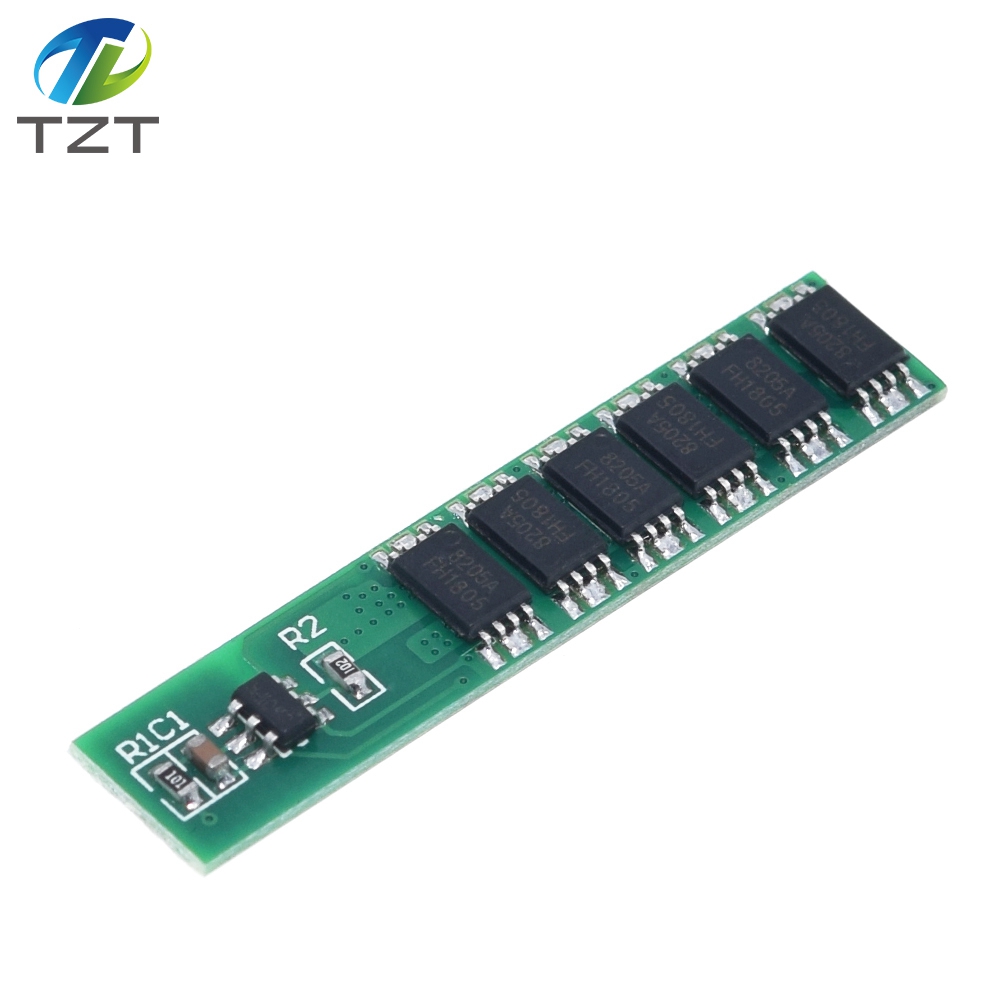

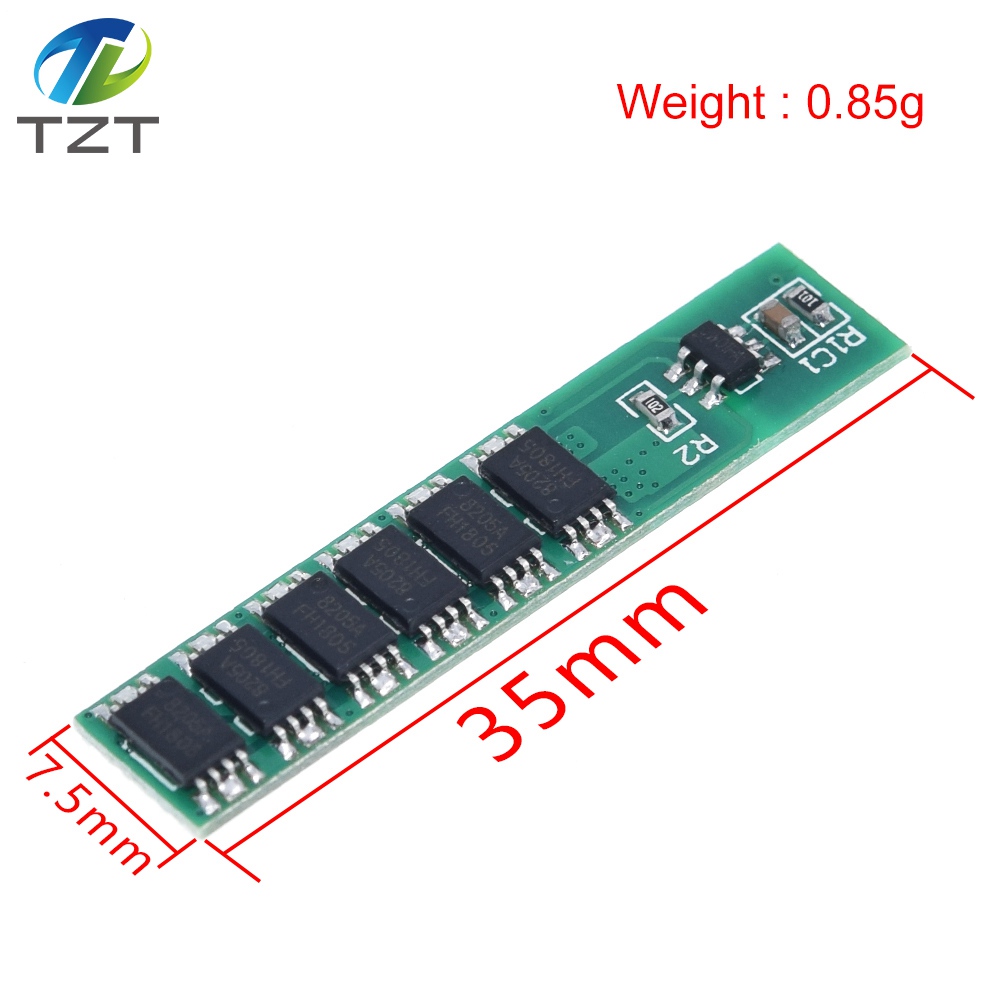

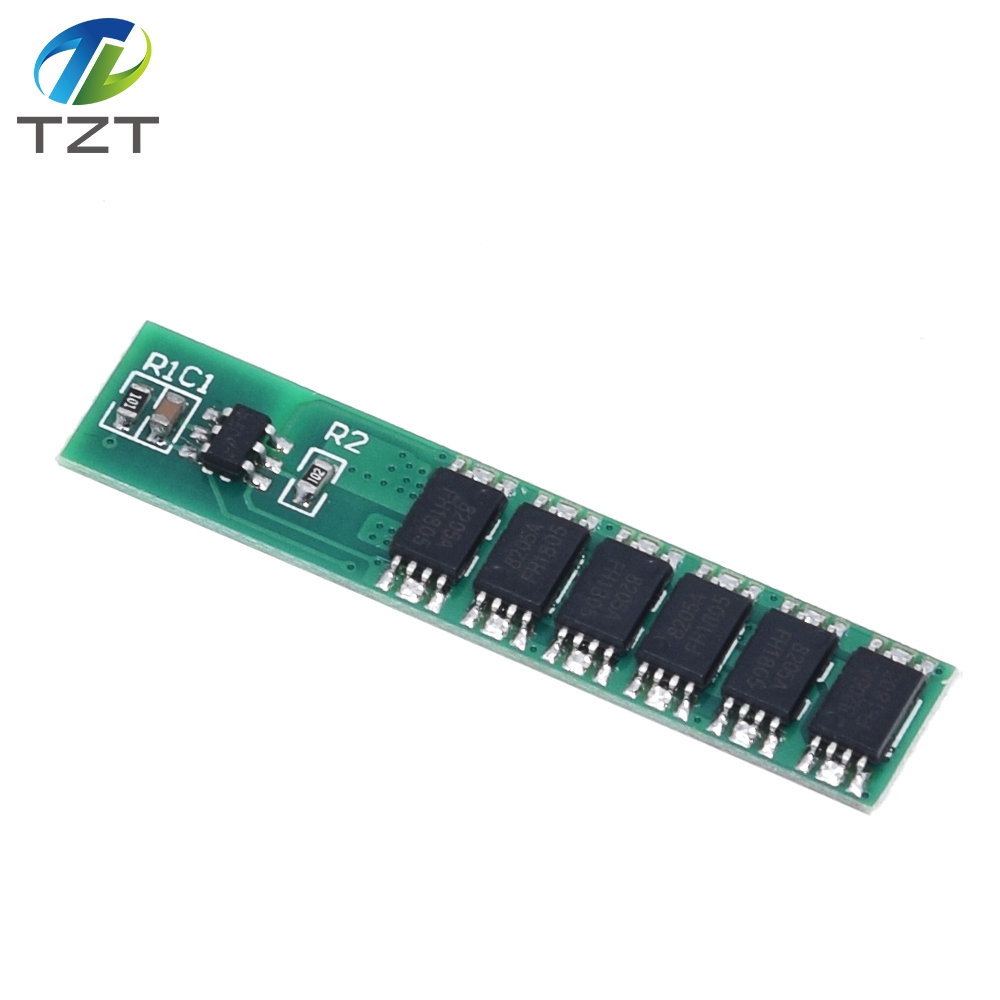

6MOS: Overcharge detection voltage: 4.25 + 0.05V Overcharge disconnection voltage: 4.23 + 0.05V Overdischarge detection voltage: 2.45 + 0.1v Maximum continuous current: 12A Overcurrent detection current: 15A Charging voltage: 4.2v Product size: 35*7.6*2MM IC component: DW01+8205A Main functions: Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection. Wiring instructions: B+ connect the positive electrode of the battery. B- connect the battery cathode. P+ is the input positive pole of battery output P- is the output input cathode of the battery pack
