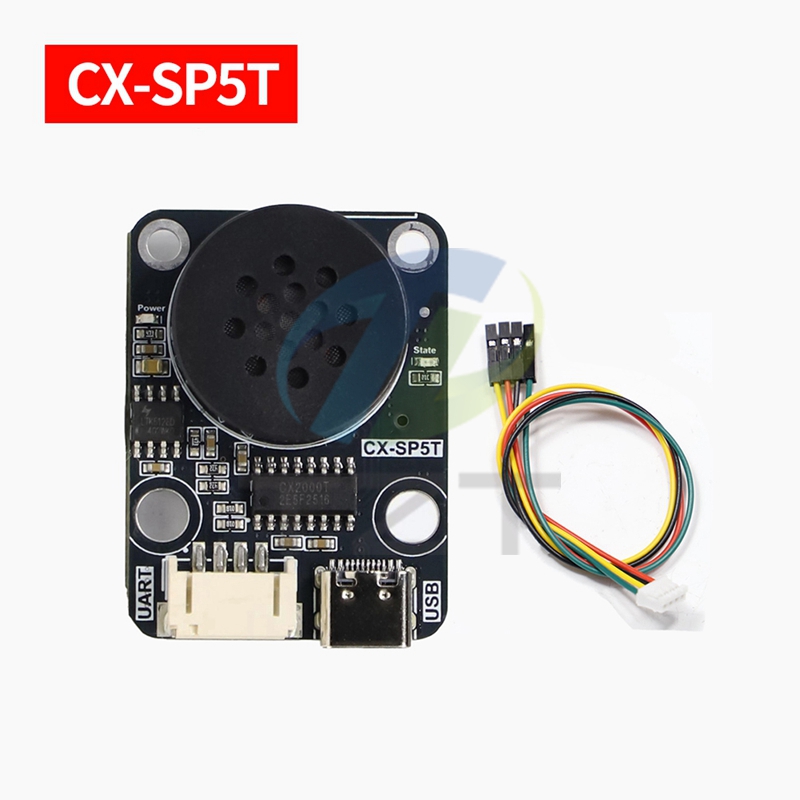

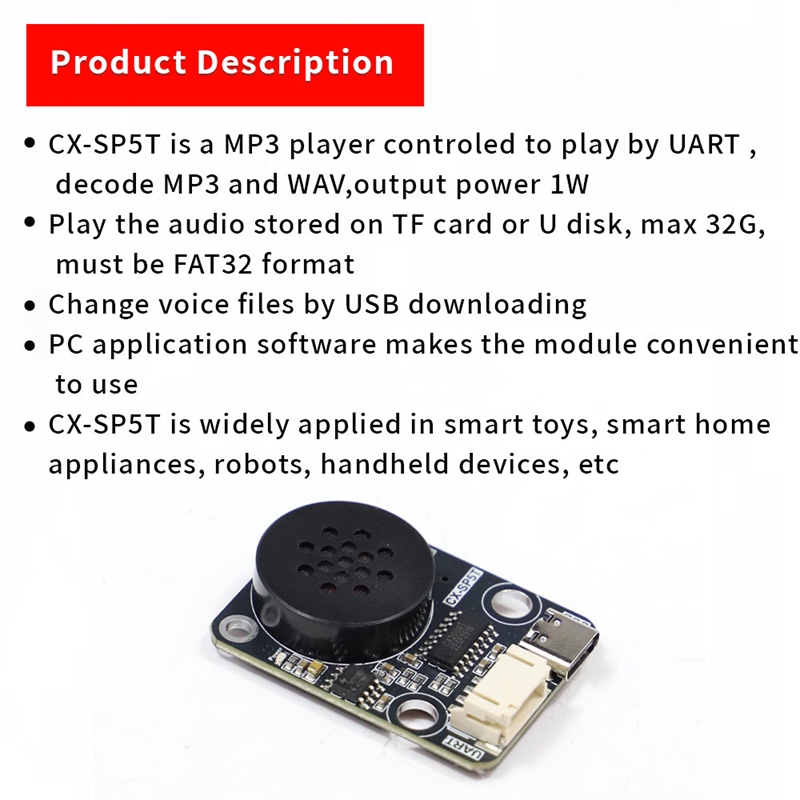

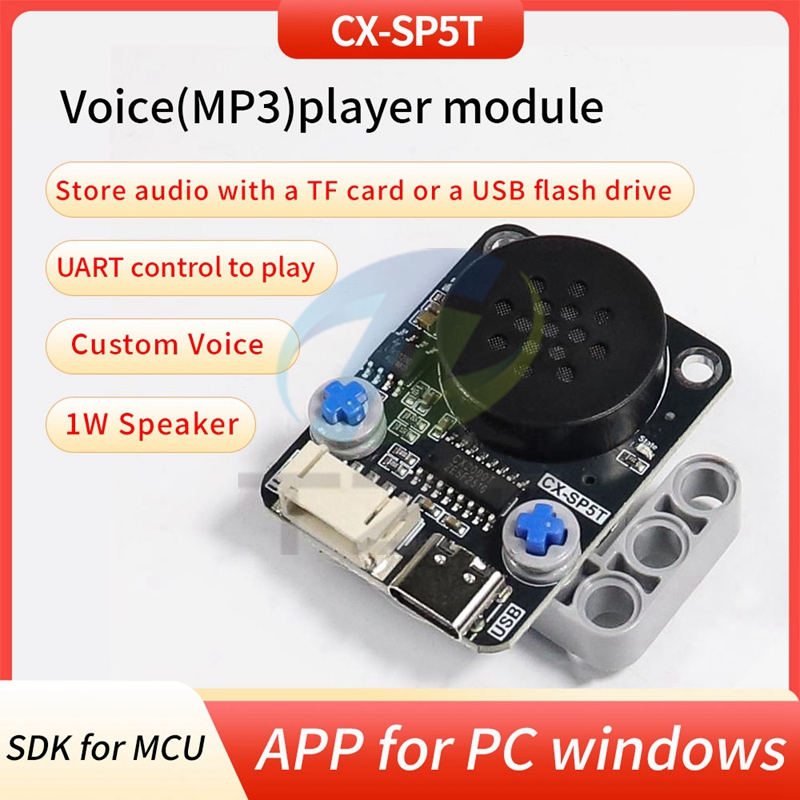

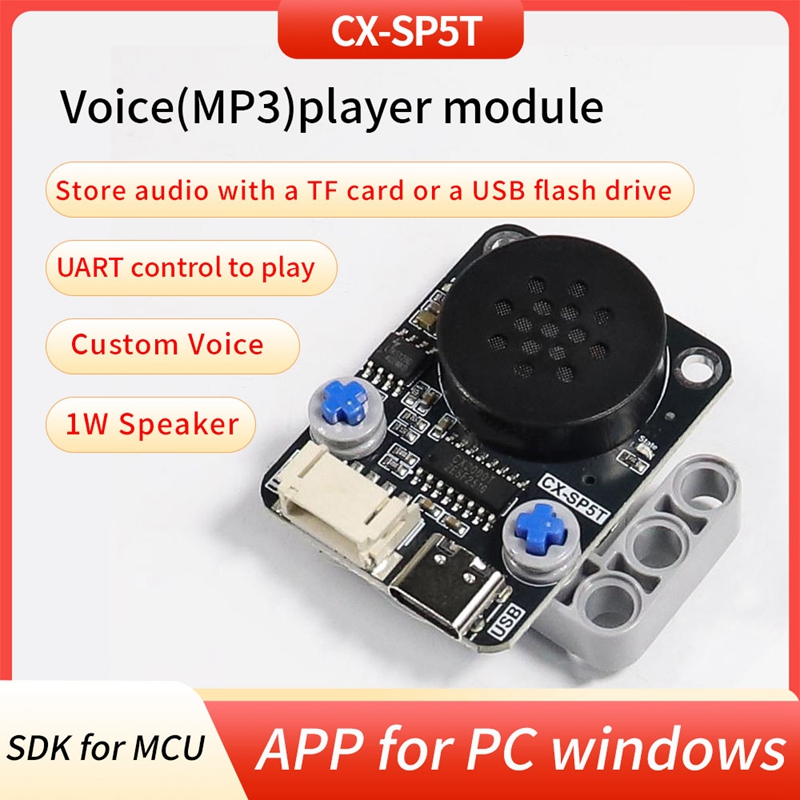

MP3 voice player module UART serial port control intelligent voice broadcast compatible with electronic building block music SP5T

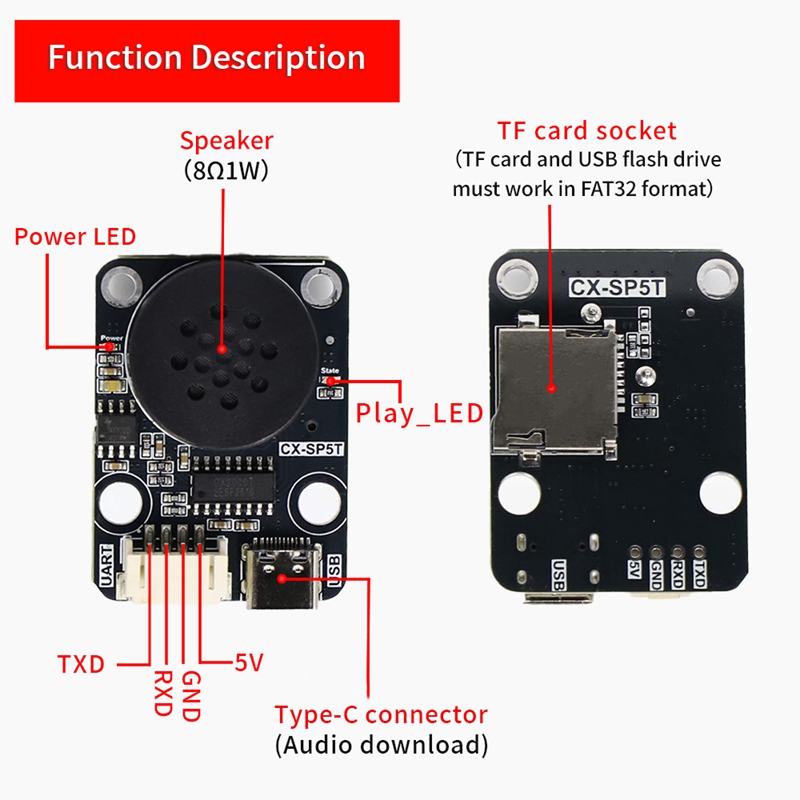

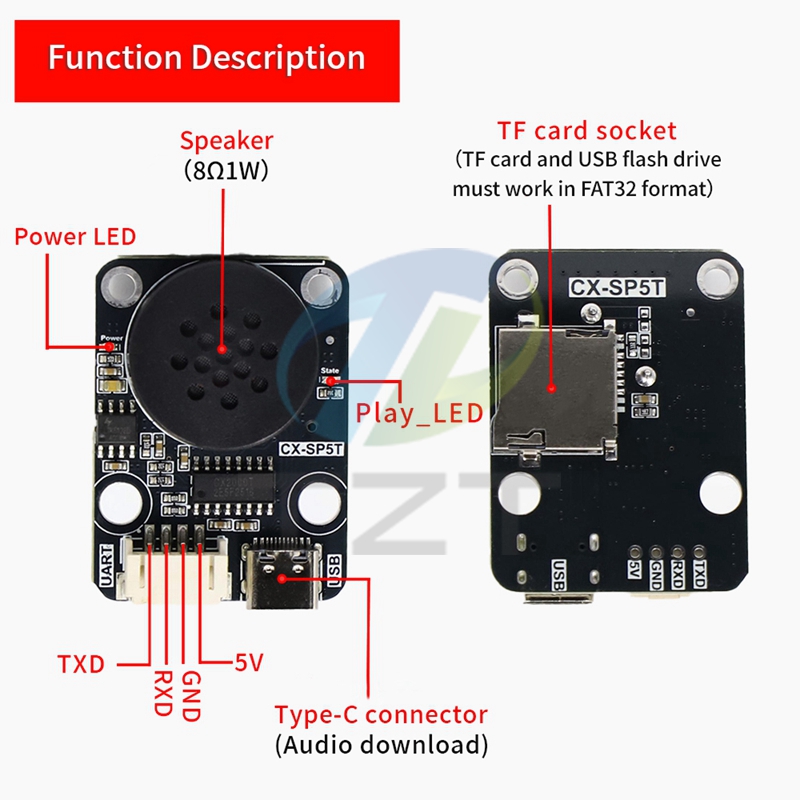

Pins and Interface definition

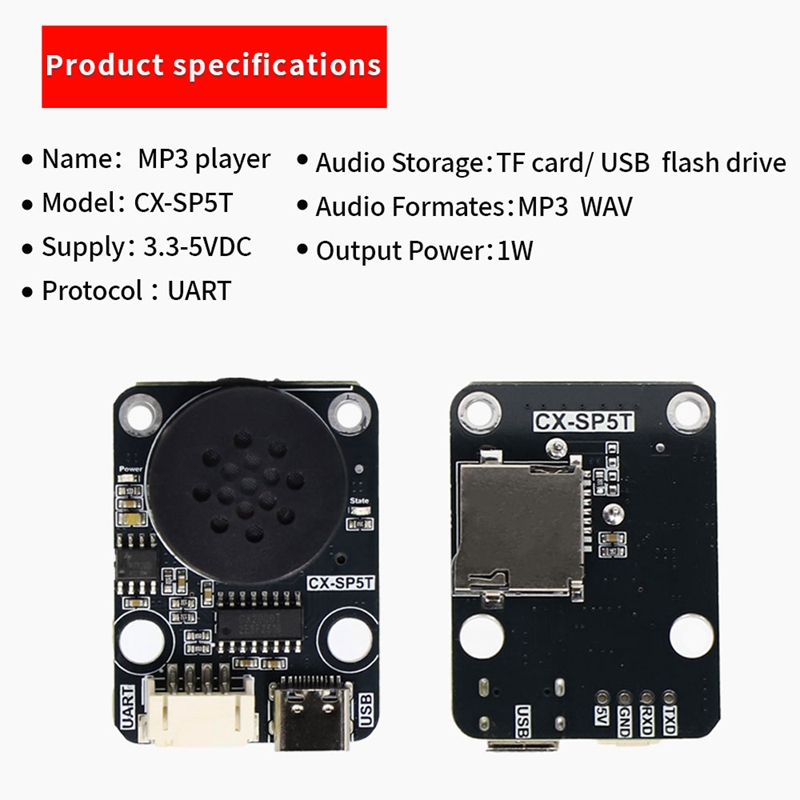

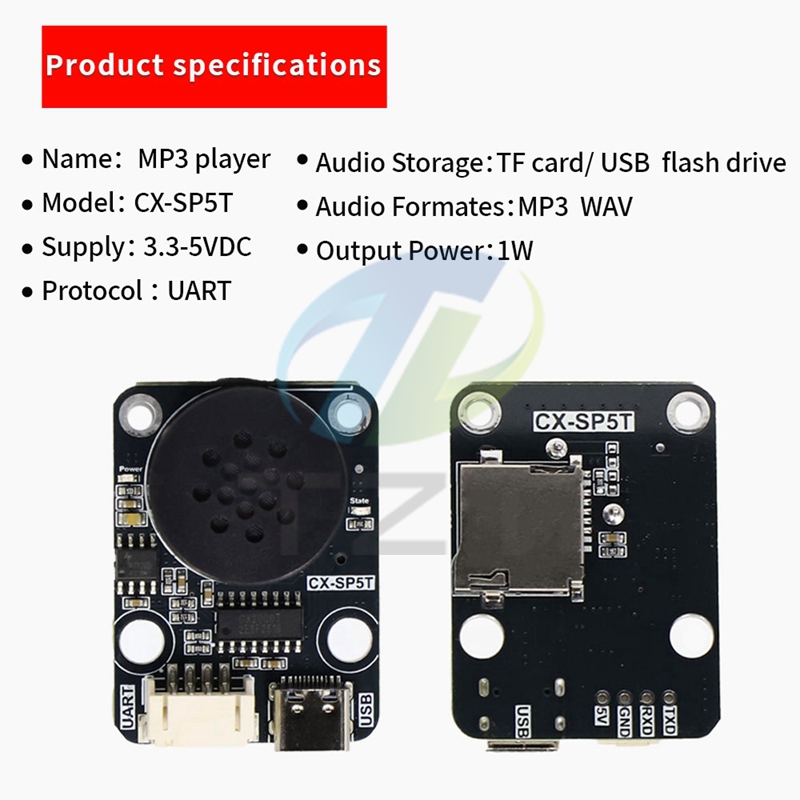

Electrical Characteristics

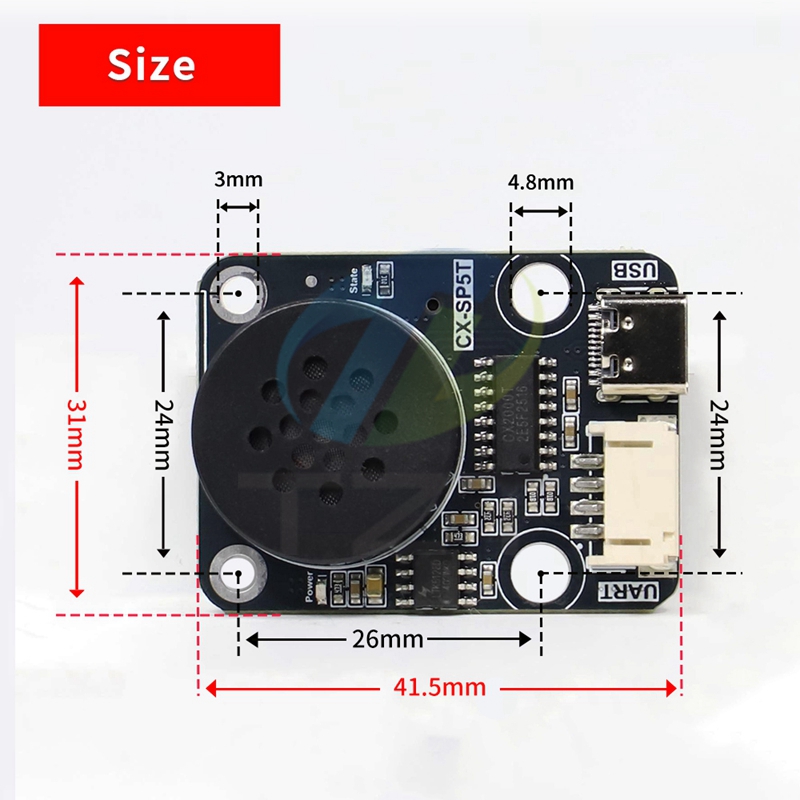

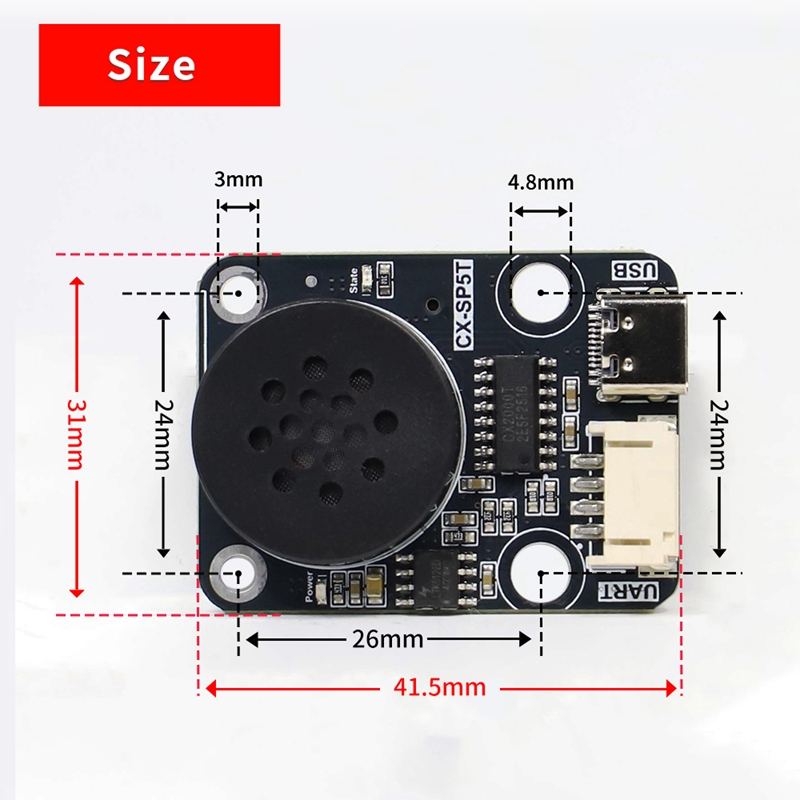

Product size

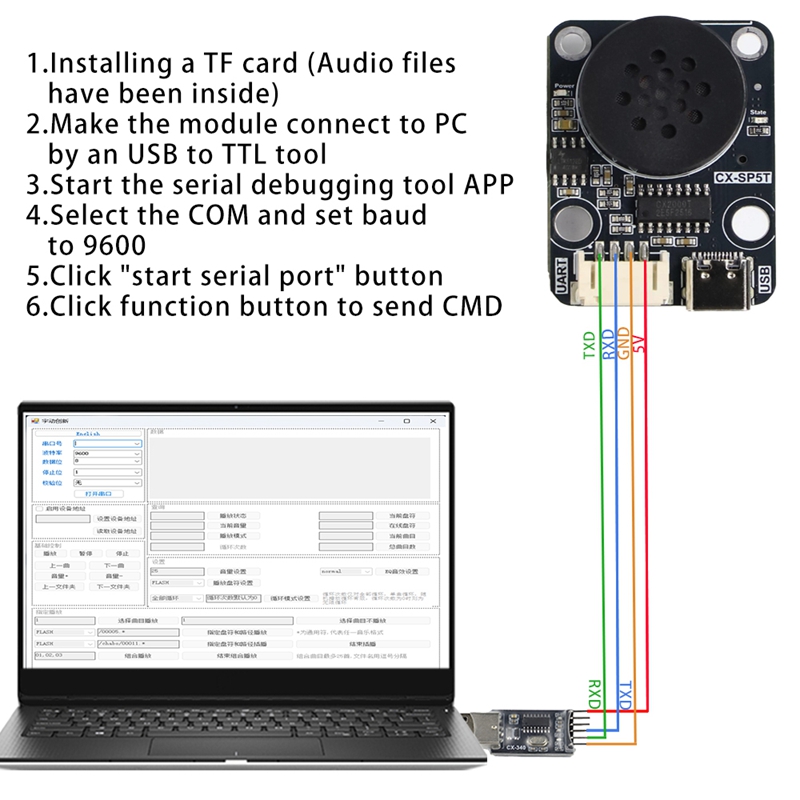

Testing steps

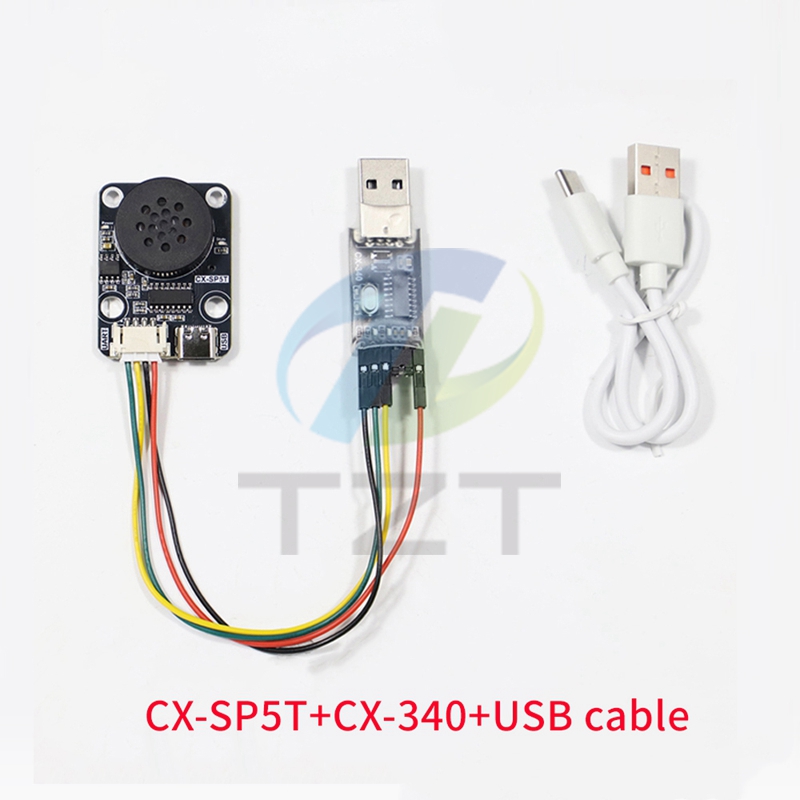

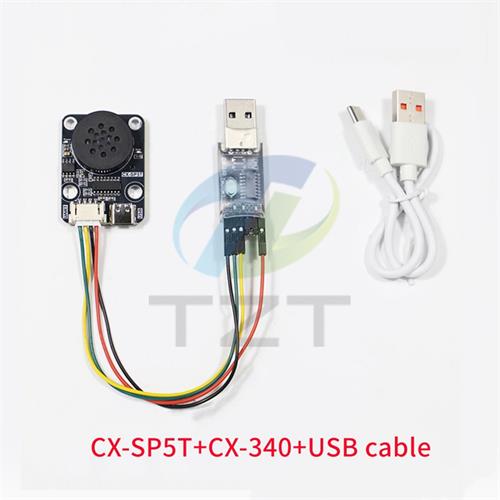

1、Install a TF card that audio files have been inside; Connect CX-SP5T to a computer by an USB to TTL module

(CX-340 recommended); connect 5V、TXD、RXD、GND； TX and RX are cross connected；

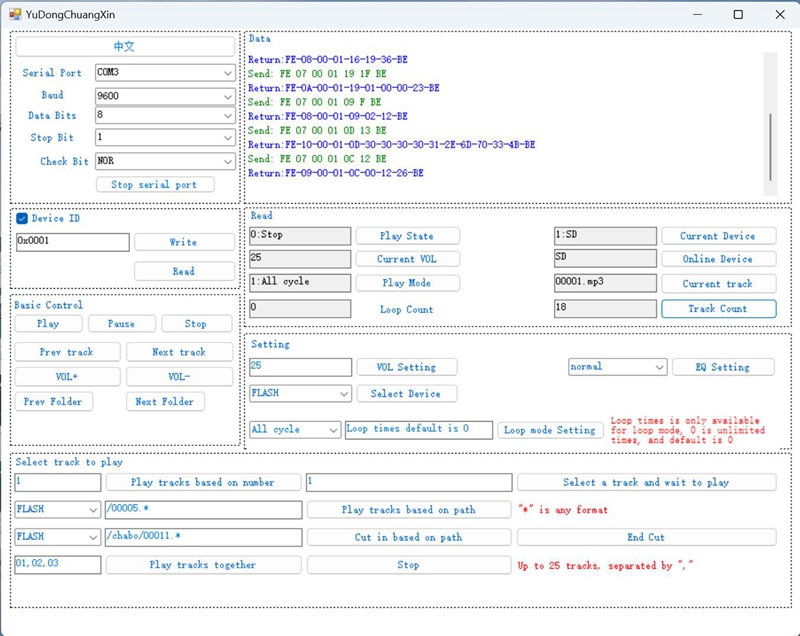

2、Start the serial debugging tool APP, and finish settings。Set the baud rate of the serial port to 9600.

Note：1）Can be supplied by 5VDC that USB to TTL module output.  it is not available that supply by USB

port of computer, because it will work in download mode, while connecting to computer by USB cable

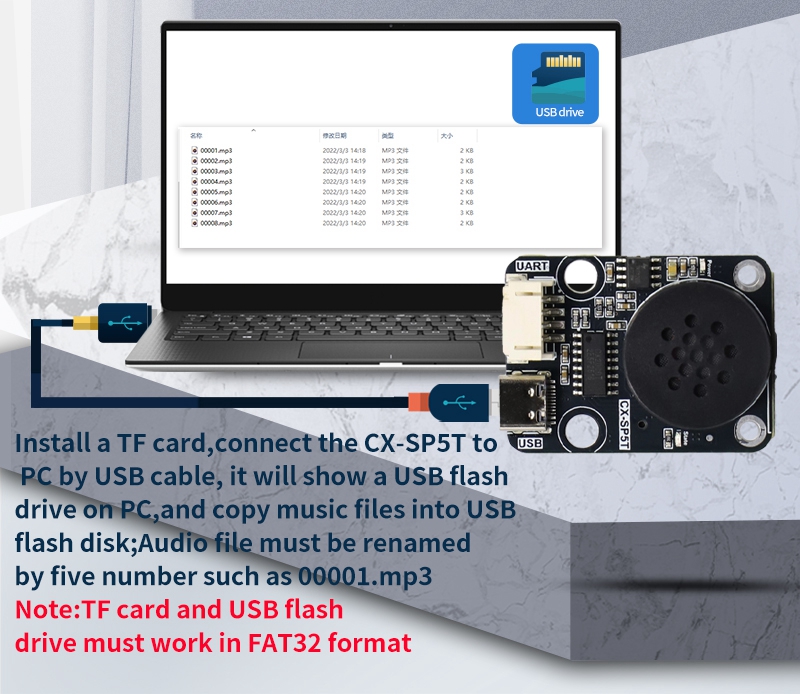

Change voice files

Install a TF card , connect CX-SP5T to a computer by a USB cable, it will show a USB flash drive，copy voice

files(mp3) into it

Note：Voice files must be renamed by five number such as 00001.mp3, 12345.mp3 …… 65535.mp3

Protocol of UART

Settings of UART：Start：1bit；Data：8bits；Stop：1bit；Check：None；Baud Rate:9600.

1.Formate of protocol

Start：1 byte，fixed FE。                                                             Length：1 byte，the number of all bytes

Device ID：2 bytes，High byte first, low byte last. 0xFFFF is the broadcast，available to all

devices. Range of device ID is 0~65534，Default device ID is 0x0001

CMD：1 byte, CMD code.

Data：0~n byte，High byte first, low byte last.

Sum Check：1 byte，the low 8 bits of all bytes sum.

End:1byte, fixed BE.

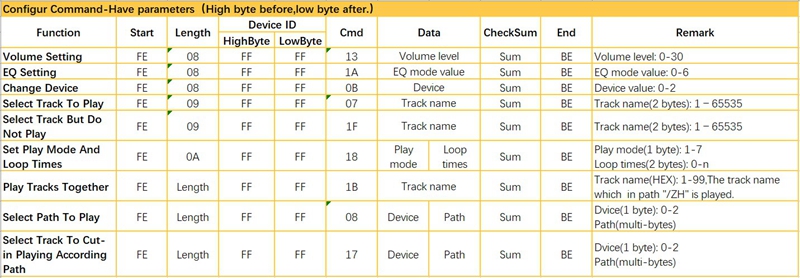

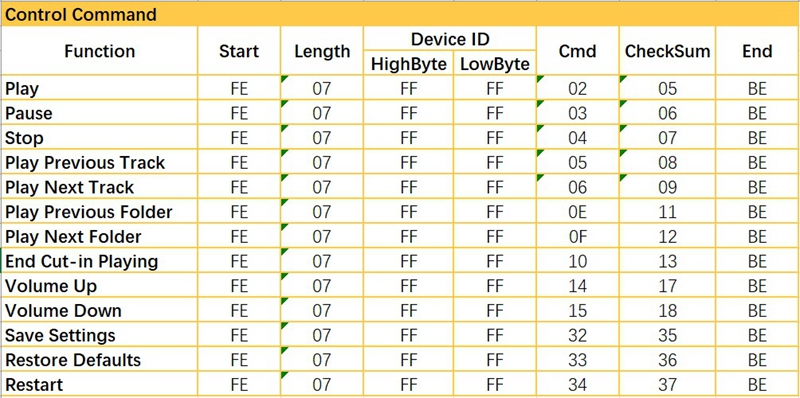

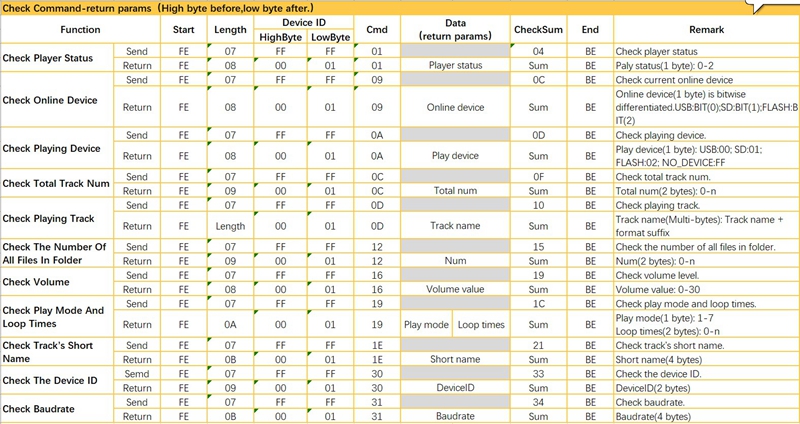

2.CMD SPEC

Please download the“CX-SP5T developer kit”for detailed description
