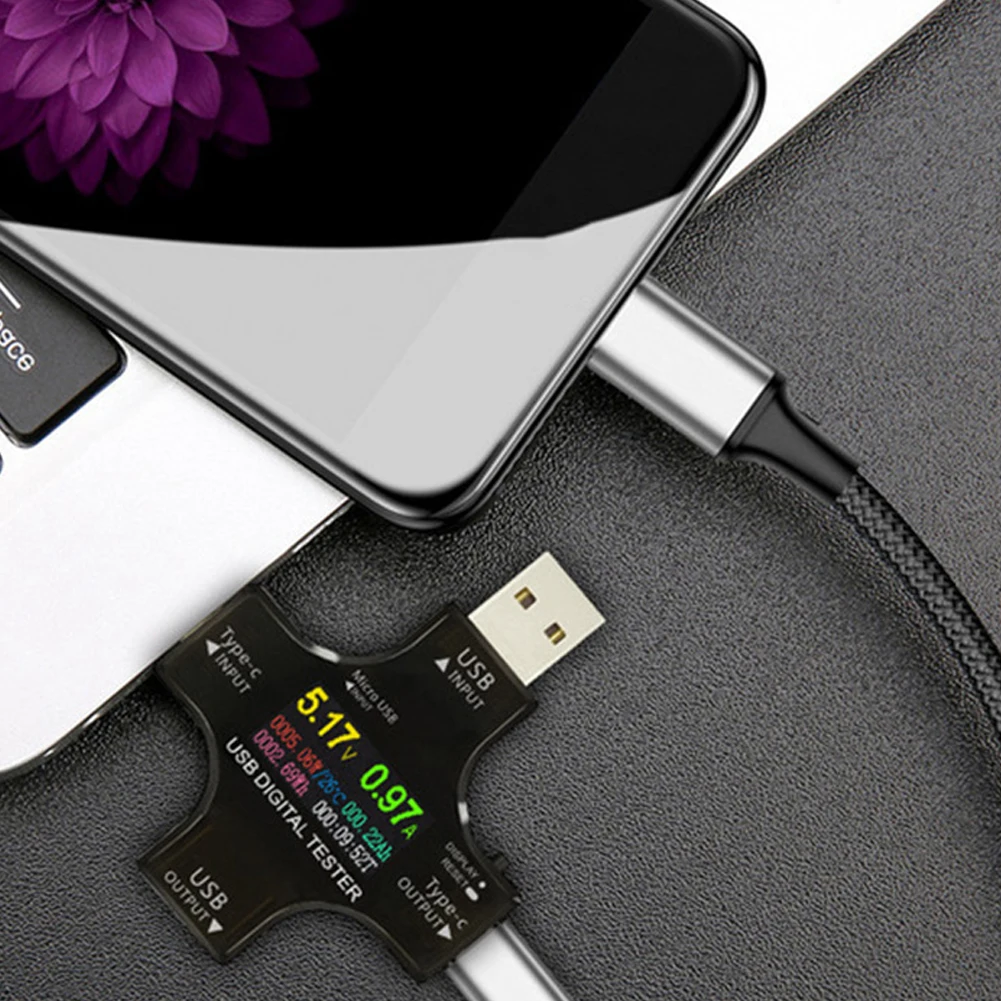

USB Tester Type-C PD Color Digital Voltmeter Vurrent Meter Ammeter Voltage Power Bank Charger USB Current Tester Measurement

Score：

Brand：TZT

Weight：0g

Stock：9999

Price：$6.81

Min Qty：1

Style：

Quantity:: - +

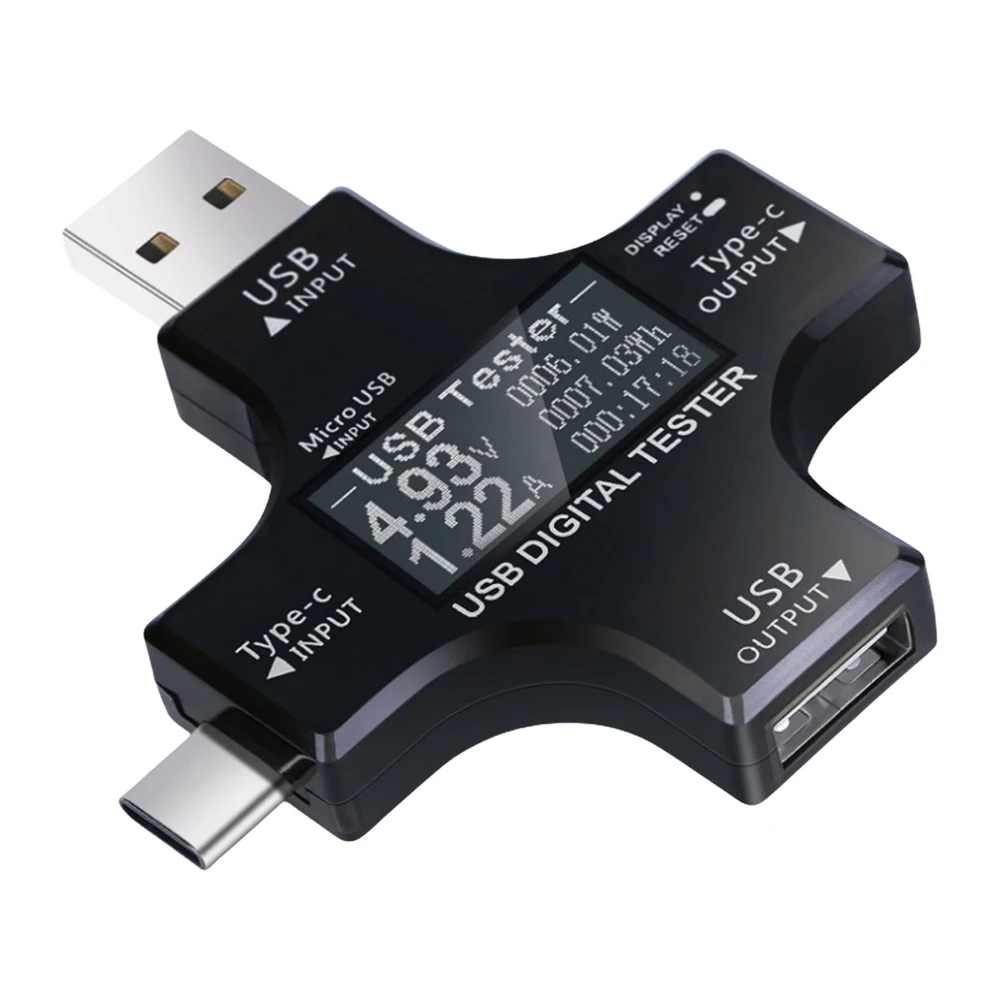

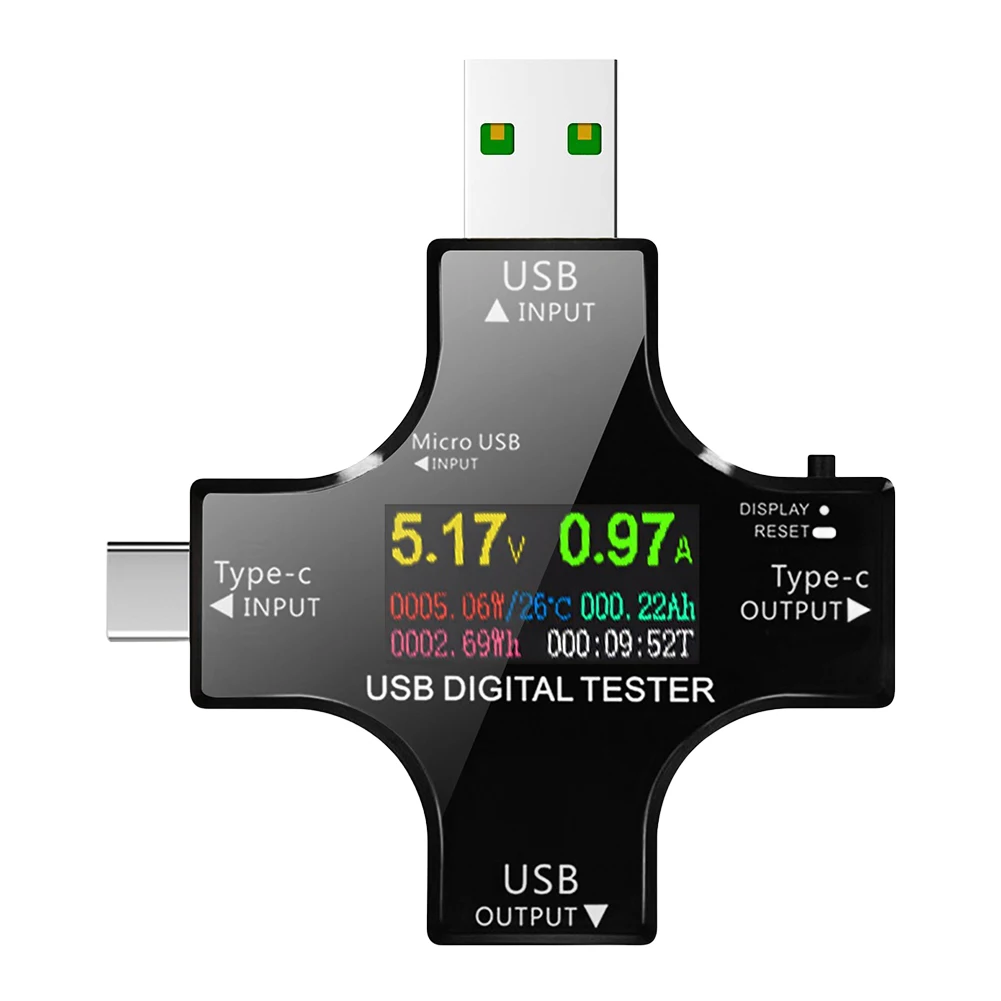

DC Digital Voltmeter Type-C PD Voltage Current Meter Color Digital Display Charger Indicator Voltage USB Current Tester

Feature:

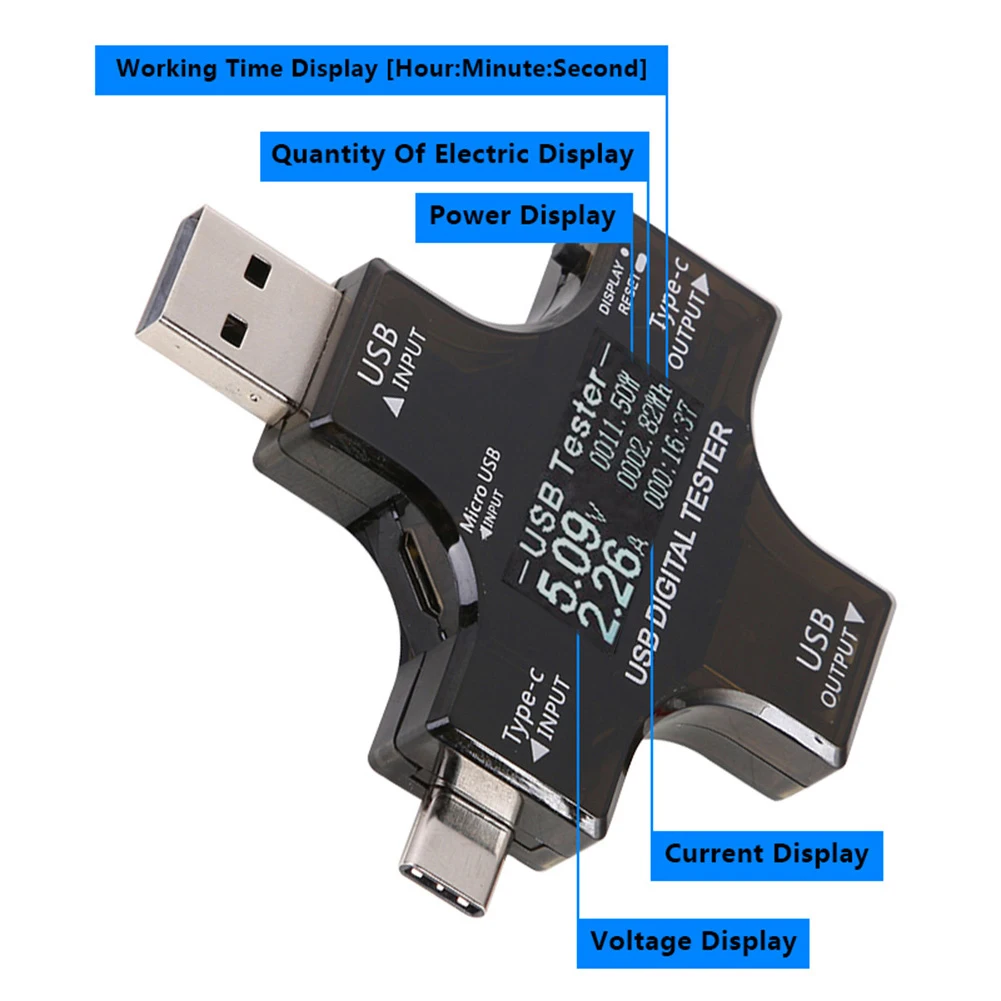

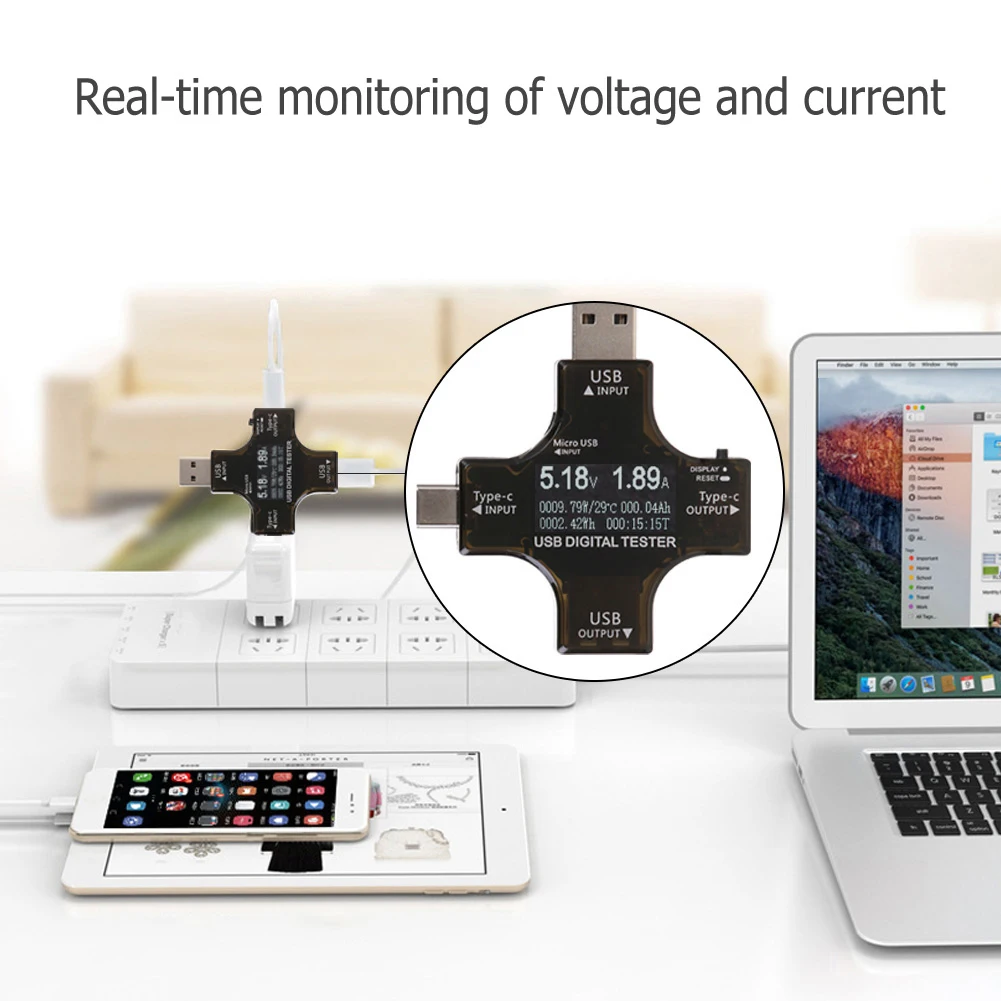

1. Multifunctional Monitoring: The Type-C USB tester provides real-time monitoring of voltage, current, and capacity. It intelligently alerts you when your device is fully charged or when the timer for charging is set, ensuring you never overcharge your devices.

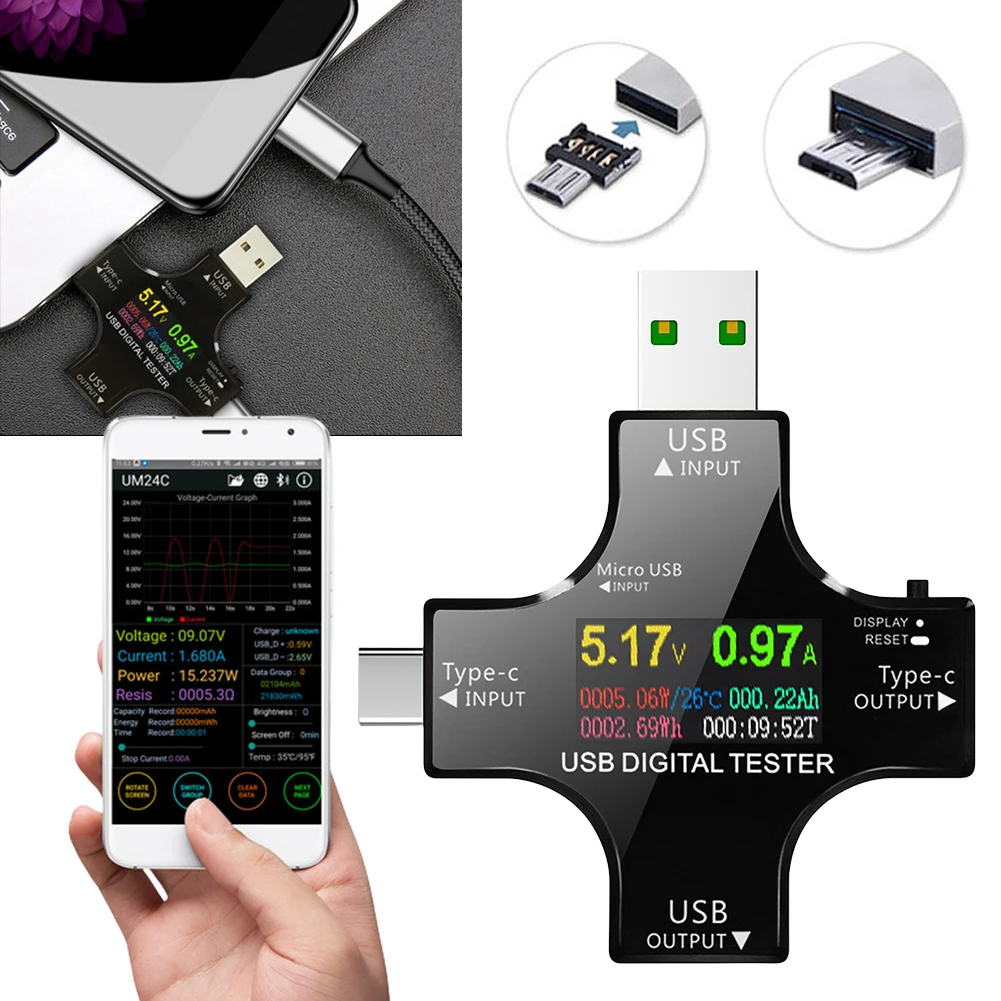

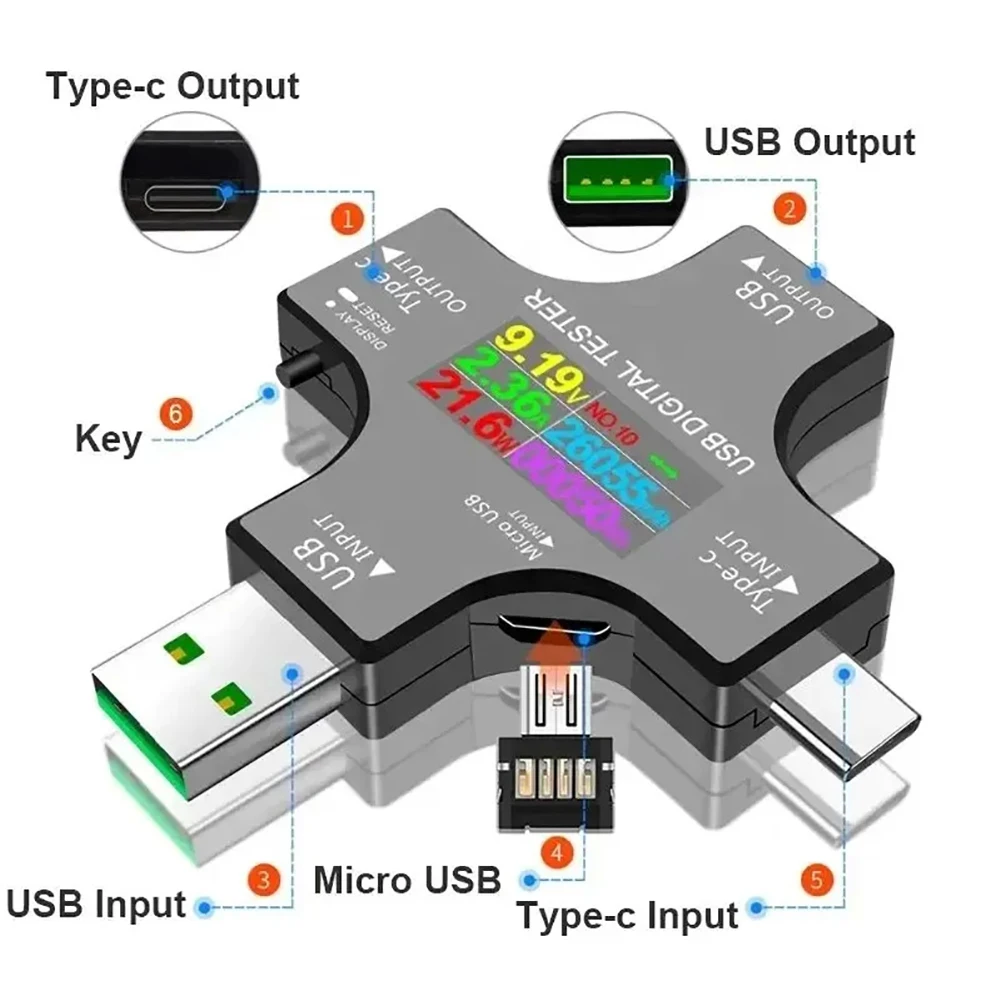

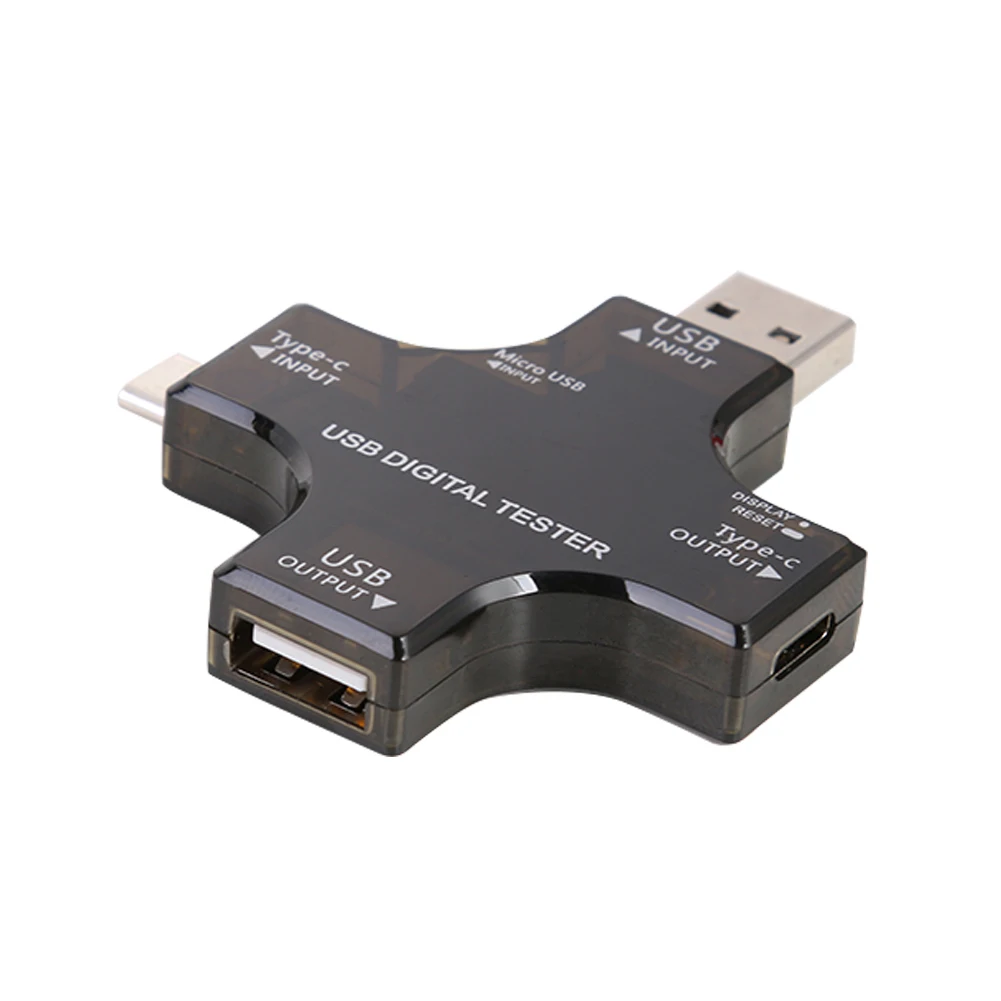

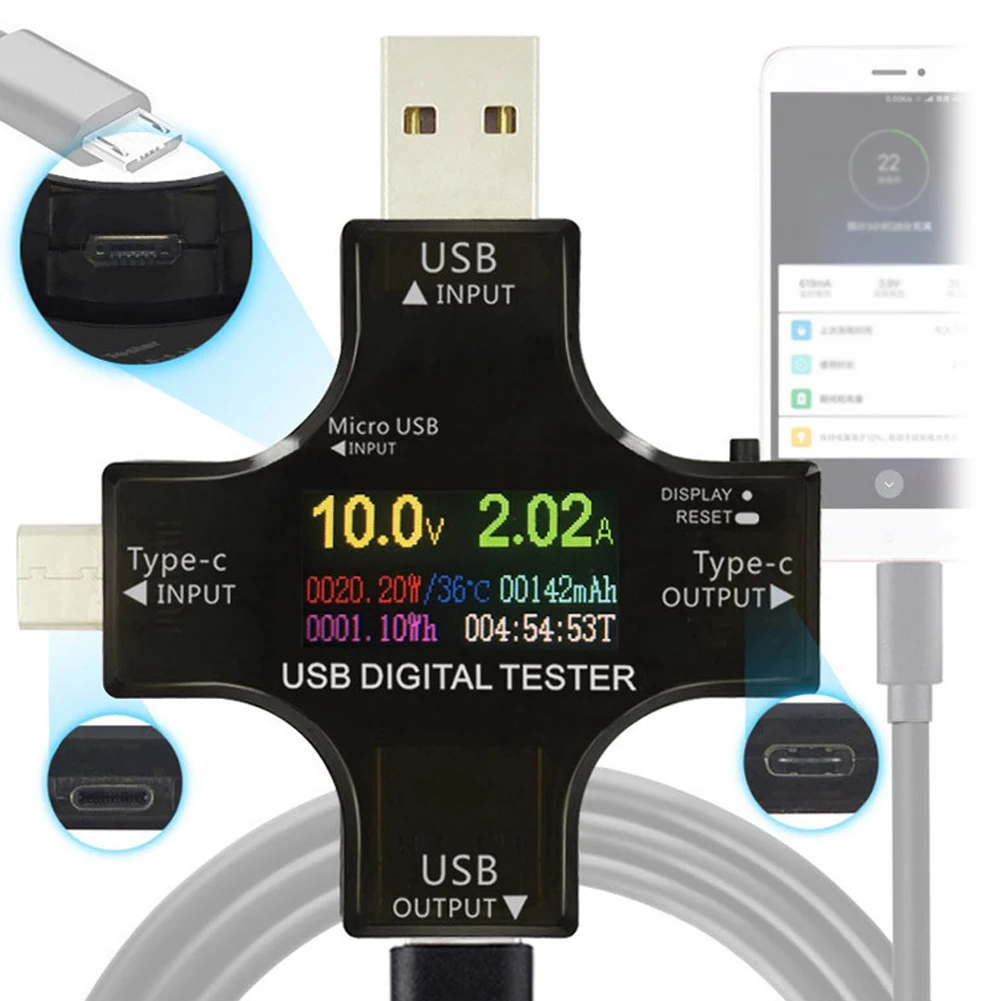

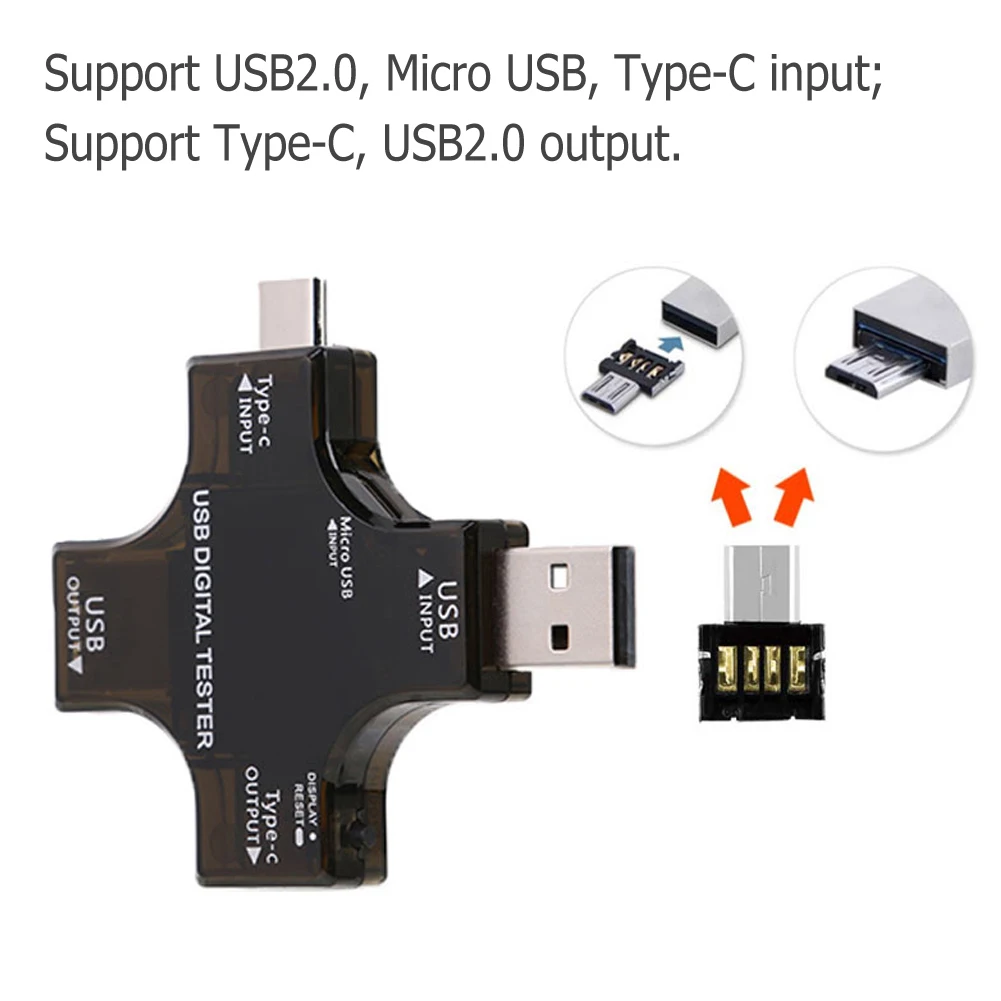

2. Versatile Adaptability: Equipped with Type-C, Micro USB, and USB plugs, the DC digital voltmeter caters to modern charging needs. Its compatibility with both old and new interfaces makes it a timeless choice for digital enthusiasts and manufacturers.
3. Cool Features: The ampere meter offers a range of cool features and diverse applications, making it an excellent choice for those who love to experiment with and test their charging devices.
4. Supports OTG Data Transfer: With its support for OTG data transfer, the voltage current meter enables your smartphones to use USB peripherals such as USB drives, mice, and keyboards. This boosts the functionality of your devices, increasing their utility and convenience.

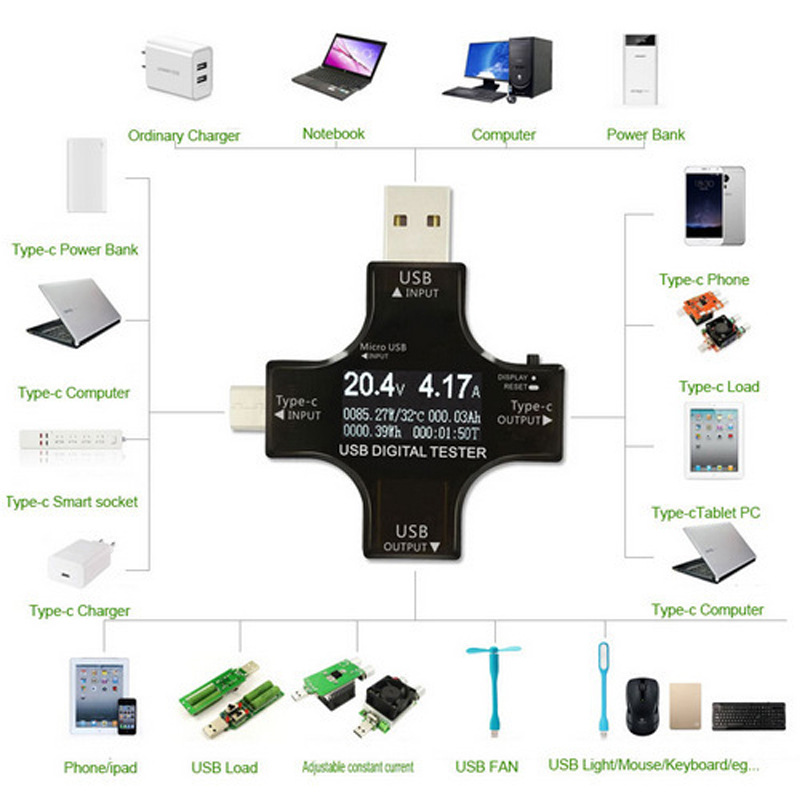

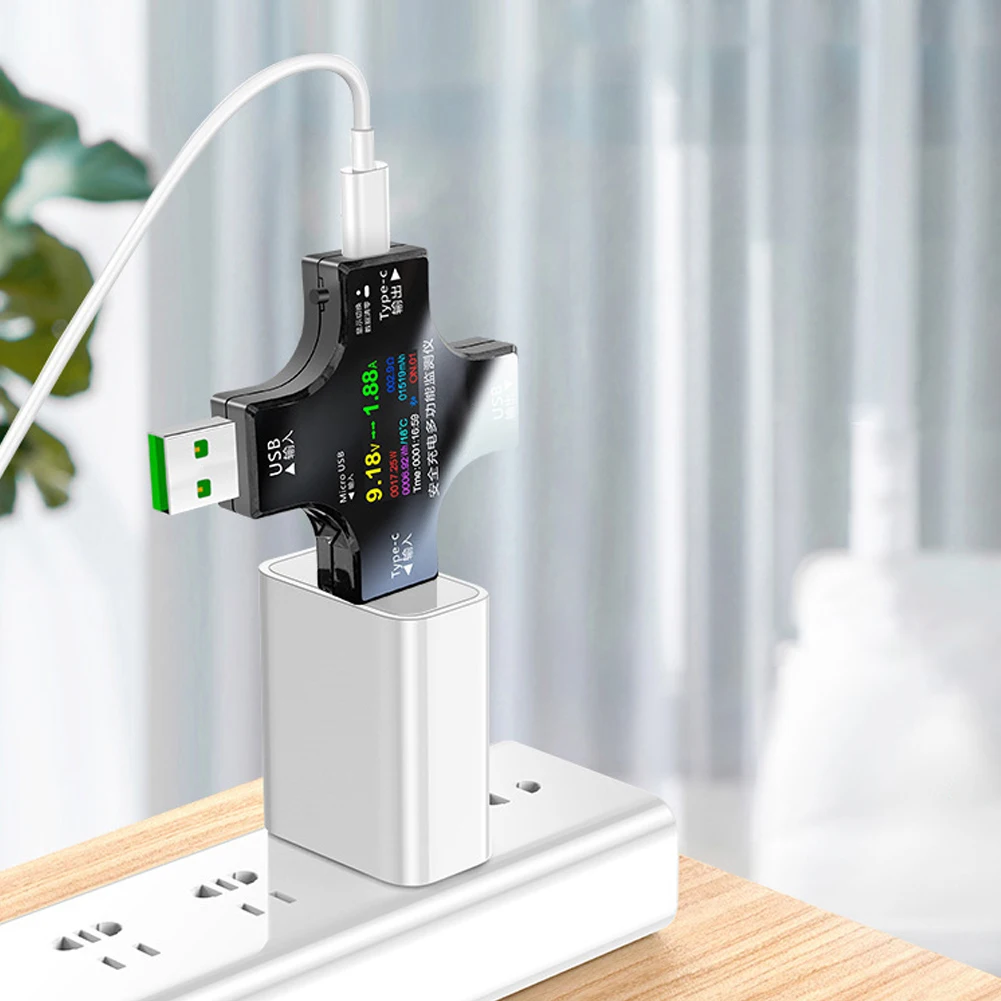

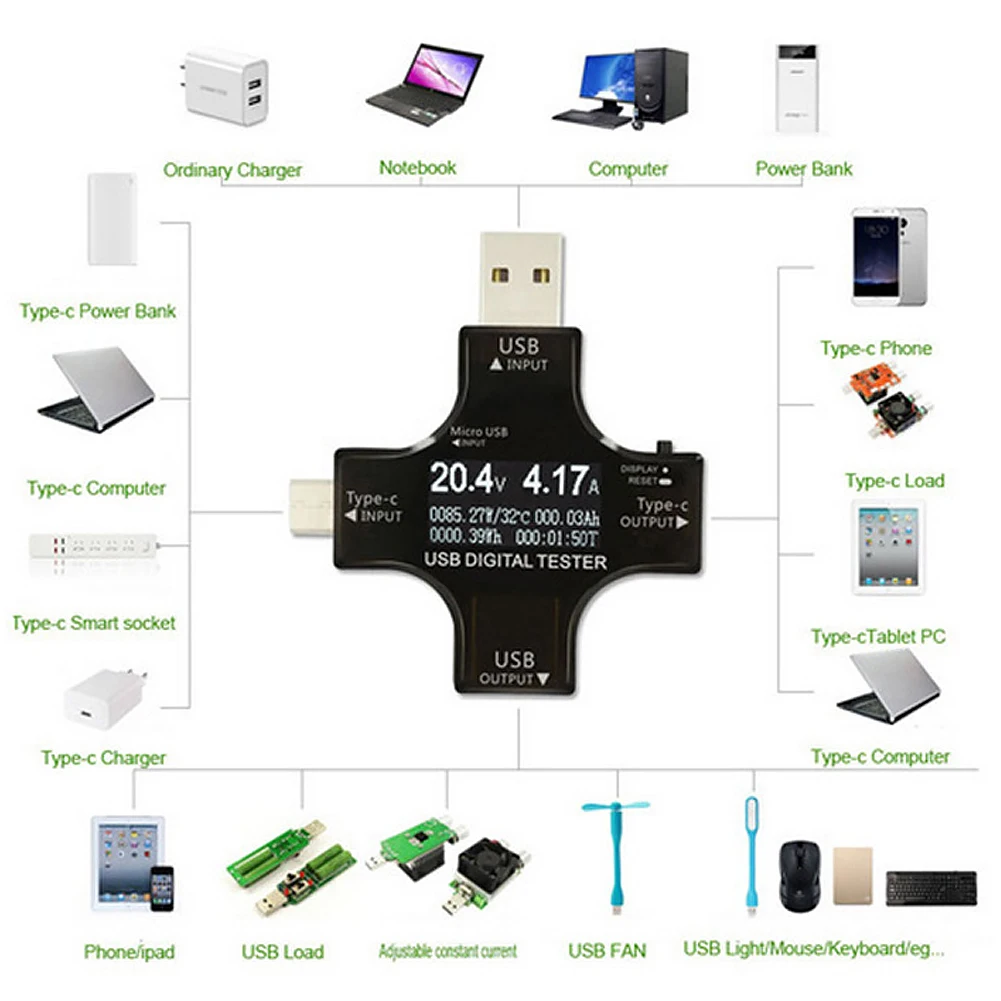

5. Universal Compatibility: The ammeter detector supports various chargers and power banks with different interfaces. With its USB to Type-C conversion function, it further enhances its adaptability and ensures that you're prepared for any charging situation.

Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Material: PC
Color: black
Style: rectangular

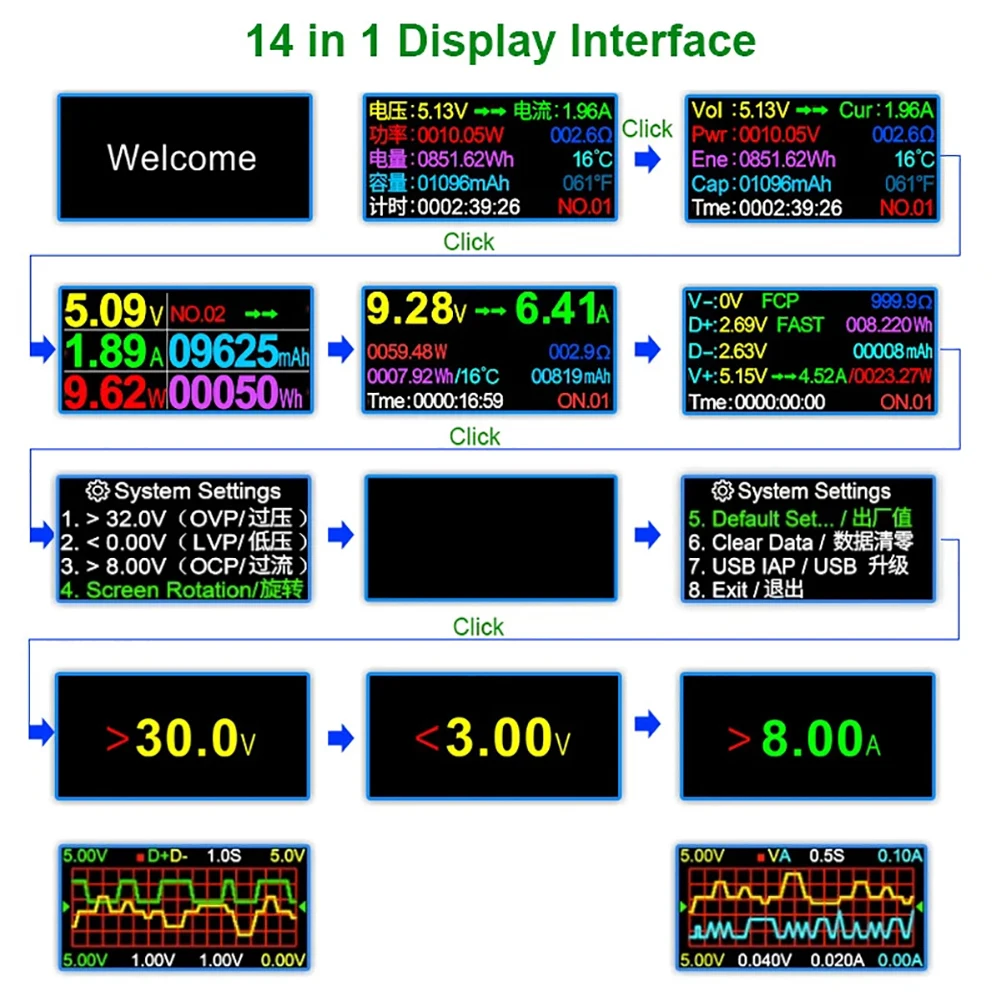

Display: color digital display
Voltage measurement range: 3.30V~30.0V Resolution accuracy: 0.01V
Current measurement range: 0.00~5.10A resolution accuracy: 0.01A
Cumulative capacity range: 0~99999mAh resolution accuracy: 0.001Ah
Cumulative power range: 0~999999mWh resolution accuracy: 0.001Wh
Power measurement range: 000.00~150.00W resolution accuracy: 0.01W
Impedance measurement range: 1~999.9ohm resolution accuracy: 0.1 ohm
Temperature measurement range: 0~80 degrees Celsius 0~80 degrees Celsius resolution accuracy: 1 degree Celsius
Maximum timing time: 999 hours, 59 minutes and 59 seconds Resolution accuracy: 1 second
Timed charging reminder setting: countdown for 24 hours, any set value
USB D+ voltage range: 0V~2.999V resolution accuracy: 0.001V
USB D-voltage range: 0V~2.999V Resolution accuracy: 0.001V
The phone is fully charged to remind the threshold parameters: <2W/0.5 hours
Refresh time: >500mS/time>500mS/time
Measurement rate: about 0.5 times/second
Alarm method: siren sound + display prompt dual warning
Display type: micro-power LCD module LCM white font Chinese and English display
Self-consumption current: <0.02A
Working temperature: -10~+60 degrees Celsius
Working humidity: 10~80 (no doubt) 10~80 (no doubt)
Working air pressure: 80~106kPa

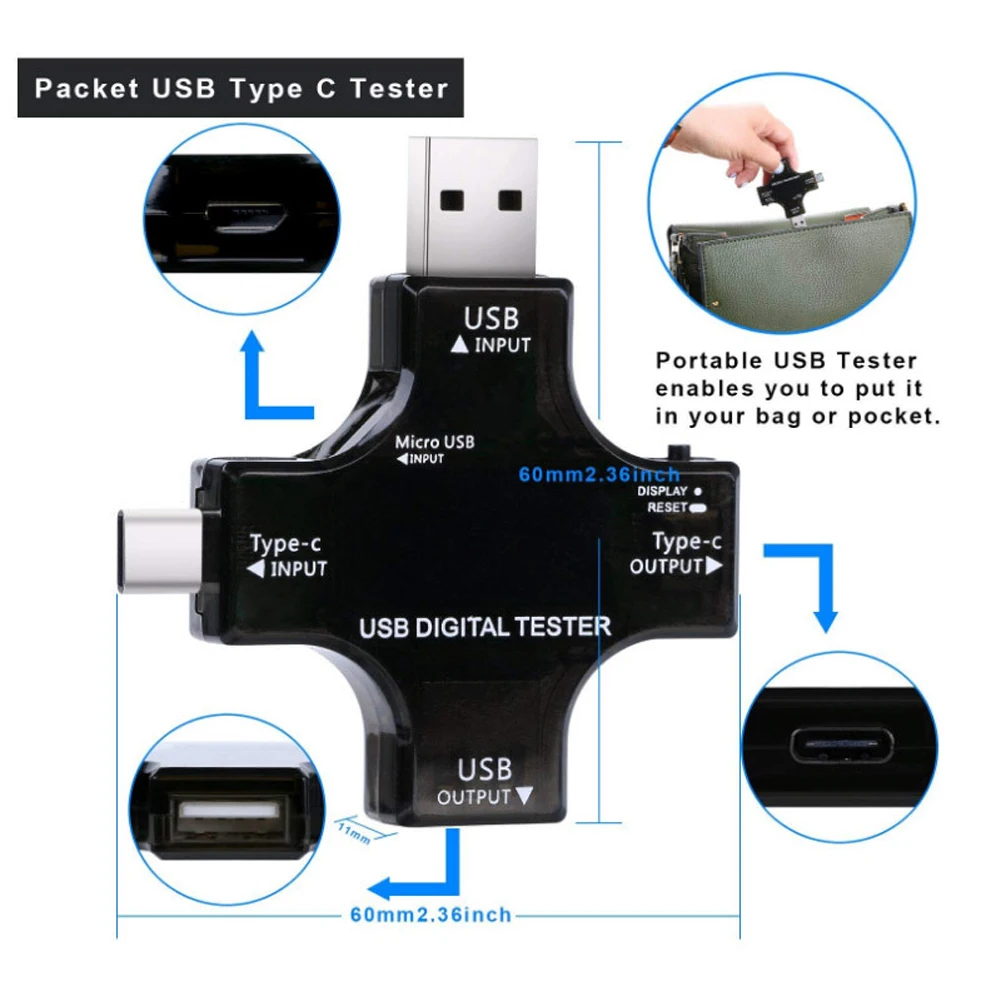

Product size: 54x54x11.00mm
Weight: 30g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
